Dual Lens 12mp OS12D40 Camera Module Main parameters
|
Module Number |
XLS121879-V1.0 |
Sensor |
OS12D40 |
|
Resolution |
12mp |
Dimension |
Customizable |
|
Lens FOV |
95 (Optional) |
Focus Type |
Fixed Focus |
|
Interface |
MIPI |
Feature |
High frame rate |
Products Description
The Dual Lens OS12D40 camera module features a 12MP OmniVision CMOS sensor with a 4-cell color filter, capable of 4512×2512 resolution at 60 frames per second. Its high-speed imaging is suitable for capturing fast-moving objects and burst photography.
The module supports programmable image processing functions via the industry-standard SCCB interface, allowing users to customize resolution, frame rate, and image quality parameters.
Product Highlights
High-resolution 12MP imaging at 4512×2512 pixels
Fast 60fps frame rate for smooth and burst photography
Dual lens design with 4-cell color filter for accurate color capture
Programmable image processing via SCCB interface
Product structure
Specification
Product introduction
The OS12D40 color image sensor is a high performance, CMOS, image sensor with a 4-cell color filter, using stacked die technology that delivers 11.3 megapixels (4612x2512) at 60 fps. Lt provides options for multiple resolutions while maintaining full field of view. Users can program image resolution, frame rate, and image quality parameters. Camera functions are controlled using the industry standard serial camera control bus (SCCB)
The OS12D40 is capable of delivering 60 fps at full resolution allowing burst photography at full 12 megapixel resolution. The OS12D40 is capable of delivering 60 fps at With a complete 11.3 megapixel image array, theOS12D40 contains all the image management functions to ensure high quality imaging solutions for high resolution mobile smart phones.
All required image processing functions are programmable through the SCCB interface. In addition, OmniVision image All required image sensors utilize proprietary sensor technology to improve image quality by reducing or eliminating common lighting/electrical sources of image contamination,such as fixed pattern noise, smearing, etc., to produce a clean, fully stable, color image.
Specifications and features.
Total height: 10±0.2mm
Base size: 13*13±0.2mm (steel sheet: 40*22±0.2mm)
Image size: 4512*2512
IR filter: 650
Chip parameters.
● active array size: 4512x2512
● power supply:
core: 1.1V
analog:2.8v
1/O: 1.8V
● power requirements:(see sidebar note)
active: 505 mW
XSHUTDN: <10 JWV
● temperature range:
operating: -30'C to 85°C junction temperature
(see table 7-2)
stable image: 0'C to 60'C junction temperature
(see table 7-2)
● output formats: 10-bit RGB 4-cell pattern Bayer
RAW
● input clock frequency: 12~64 MHz
● lens size: 1/2.49"
● lens chief ray angle: 8.7°linear (see table 9-3)
● maximum image transfer rate:
4512x2512:60 fps (see table 2-1)
● maximum exposure: VTS _ 16 lines
● minimum exposure: 8 lines
● sensitivity:TBD
● max S/N ratio: TBD
● dynamic range: TBD
● scan mode: progressive
● pixel size: 1.404 um x 1.404 um
● image area: 6365.736 um x 3554.928 um
● package dimensions: 10740 um x 10335 um

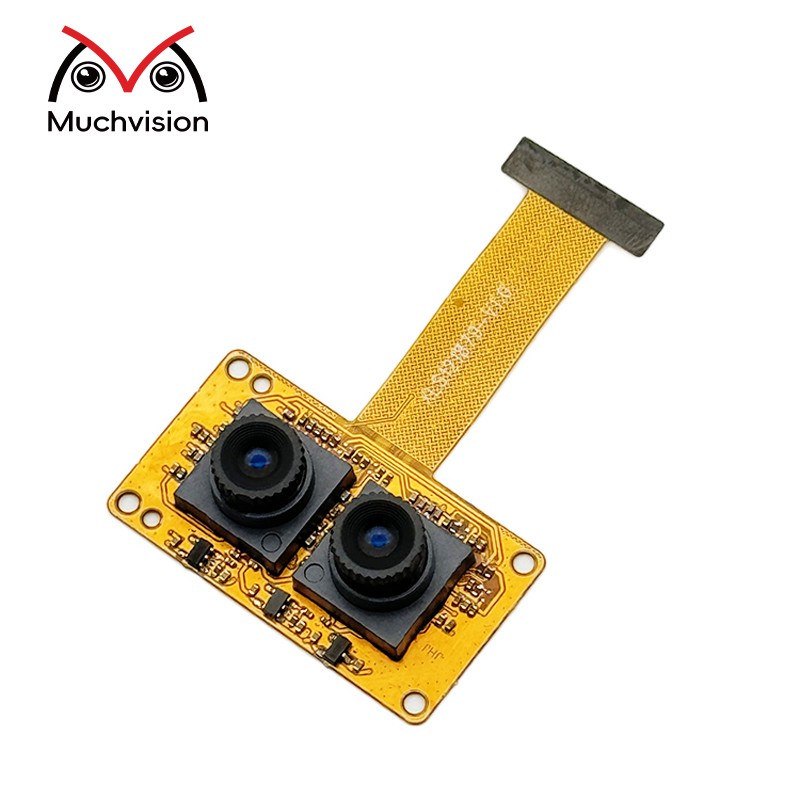

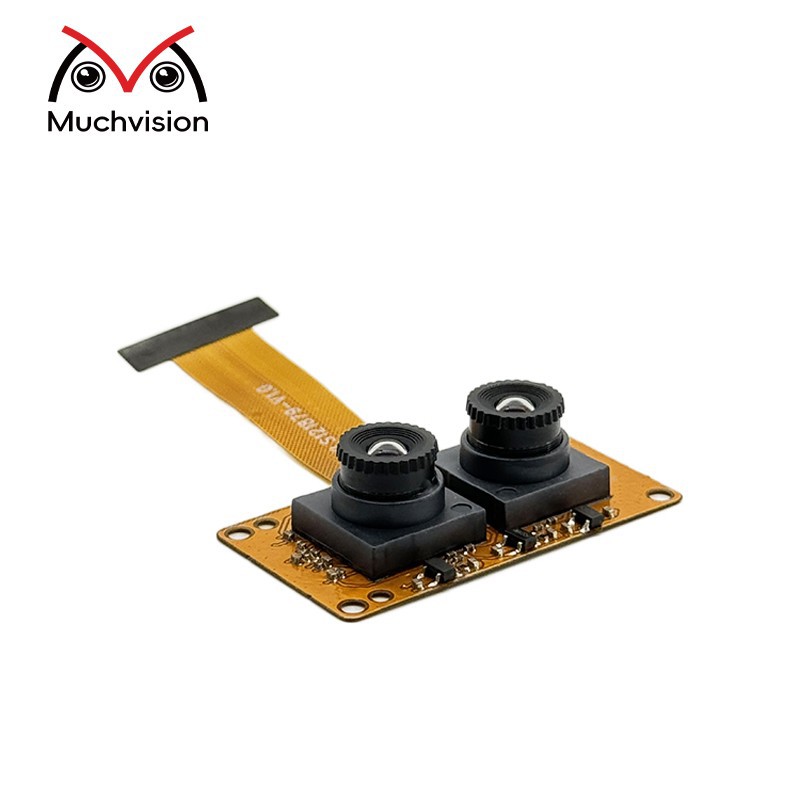

Product Picture
Application areas of camera modules
1. Vehicle recorder: Used for vehicle recorder to record video and images during driving and provide evidence of accidents
2. Barcode scanning: Used for barcode scanning in industrial automation to improve logistics and warehousing efficiency
3. Document scanner: Used for document scanning to digitize paper documents for easy storage and retrieval
Hot Tags: OS12D40 camera module, 12MP MIPI camera, dual lens camera module, high frame rate camera, 60fps camera module, industrial imaging camera, vehicle recorder camera
