Module Number |
XLS162043-V1.0 |
Sensor |
S5K3P3 16MP CMOS |
|
Resolution |
4632×3480 |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Auto focus |
|
Interface |
MIPI |
Feature |
HDR,auto focus |
Products Description
The XLS162043-V1.0 camera module integrates the Samsung S5K3P3 16MP CMOS sensor, providing 4632×3480 resolution at 30FPS and FHD 60FPS video for clear, detailed imaging. Designed with auto focus zoom and HDR support, it captures vibrant images even in challenging lighting conditions.
Its on-chip features-such as digital stabilization, defect correction, Bayer downscaler, and bad pixel correction-ensure consistently sharp image output. The 4-lane MIPI interface allows fast and flexible integration across multiple platforms, including Qualcomm, MTK, Allwinner, HiSilicon, and RK.
Highlights
16MP full resolution at 30FPS
FHD 60FPS video for smooth playback
AF zoom and HDR for detailed images
On-chip stabilization and defect correction
Works with multiple platforms including Qualcomm, MTK, and HiSilicon

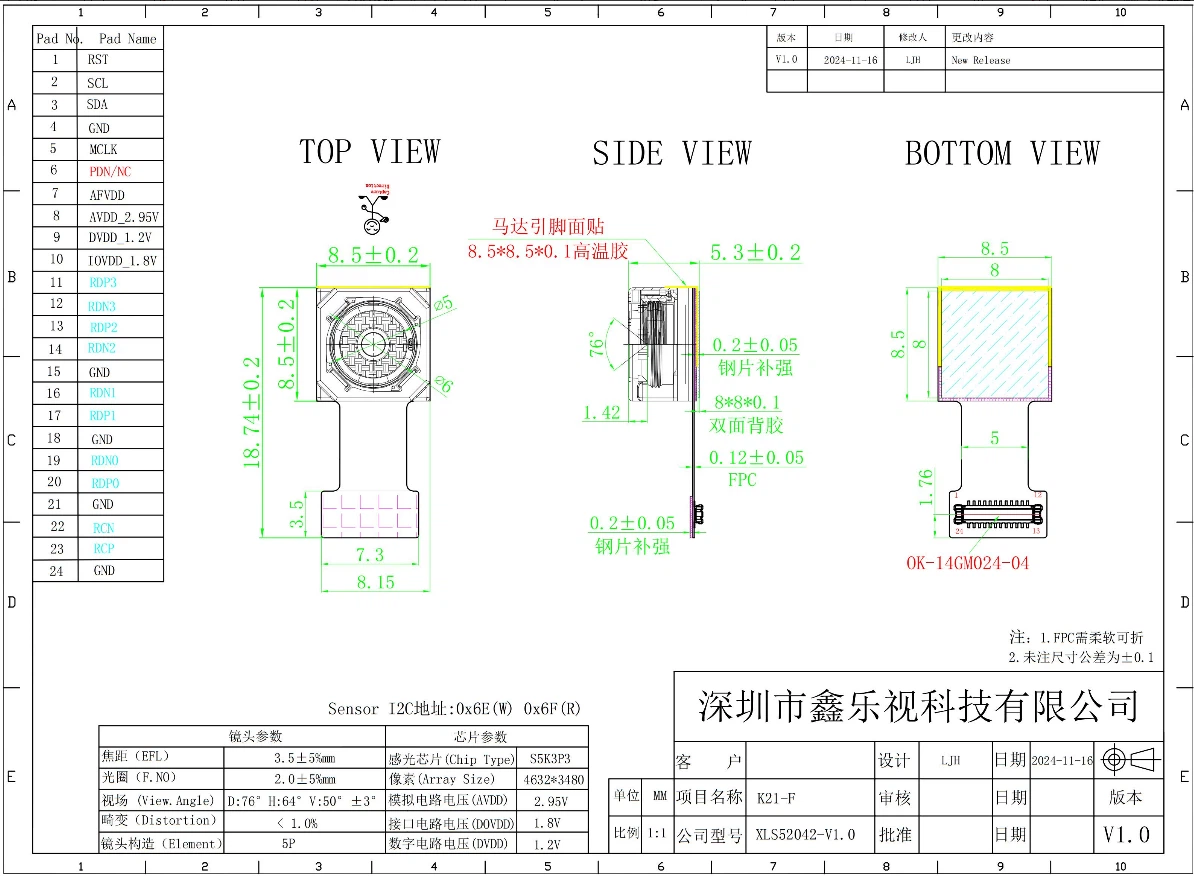

Structure diagram
parameter
|
Parameter |
Specification |
|
Model |
XLS162043-V1.1 |
|
Sensor |
S5K3P3 16MP CMOS |
|
Pixel Size |
1.0 μm × 1.0 μm |
|
Optical Format |
1/3.1" |
|
Resolution & Frame Rate |
4632×3480 30FPS, 4M (16:9) FHD 60FPS, 1.78M (16:9) HD 120FPS, WVGA 120FPS, VGA 120FPS |
|
Interface |
4-lane MIPI |
|
Focus |
AF Zoom |
|
Field of View |
76° (optional) |
|
Dimensions |
18.7 × 8.5 mm |
|
Applications |
Smart home, advertising display, barcode scanning, face recognition, video doorbell, drones, toy camera, dashcam, sports DV, mobile phones, tablets, handheld scanners |
|
Supported Platforms |
Qualcomm, Allwinner, MTK, Spreadtrum, HiSilicon, Mstar, RK |
|
Chip Height |
5.3 ± 0.2 mm |
|
Base Size |
8.5 × 8.5 ± 0.2 mm |
|
IR Filter |
650 nm |
|
Shutter |
Electronic rolling shutter and global reset |
|
On-chip Features |
CDS, defect correction, image scaling, digital video stabilization, Bayer downscaler, bad pixel correction, OTP memory, temperature sensor, test pattern generation |
|
Power Supply |
Analog 2.95V, VO 2.8V/1.8V, Digital 1.2V |
|
Operating Temperature |
-30°C to +70°C |
