Products Description

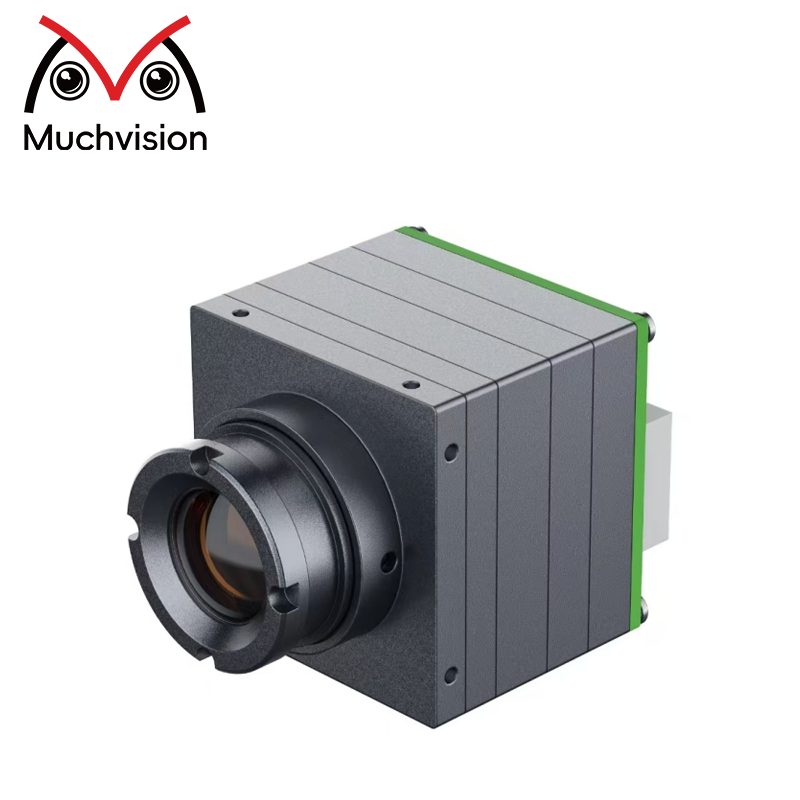

This compact thermal imaging core is designed for high-performance applications where space, power efficiency, and image clarity matter. With a 384x288 resolution VOx detector and NETD ≤40mK, it captures precise thermal details - even in challenging environments.
Its lightweight, low-power design makes it ideal for drones, security cameras, industrial inspection devices, and smart automation systems. Multiple color palettes and display modes offer flexible visualization, while standard interfaces like CVBS and RS232 simplify integration.
Highlights
Sharp Thermal Imaging: 384x288 resolution with high sensitivity
Compact Size: Just 26×26×21.1mm, easy to install
Lightweight: Under 23g, perfect for mobile or aerial use
Low Power: ≤1W power consumption
Flexible Output: Supports color and grayscale display modes
Specification
|
IR Detector |
Resolution |
384*288 |
|
Spectral range |
8~14μm |
|
|
Detector type |
VOx |
|
|
Pixth pitch |
12μm |
|
|
NETD |
≤40mK |
|
|
Lens |
9.1mm |
|
|
Frame rate |
≤50Hz |
|
|
Image adjustment |
Bright or Contrast adjustment |
Auto or manual |
|
Polarity |
White Hot or Black Hot |
|
|
Color palettes |
Iron, Iron invert, Rainbow,Feather |
|
|
E-zoom |
X1,X2,X4 |
|
|
Image processing |
NUC,digital filter noise reduction, digital details enhanced |
|
|
Image mirror |
Left and right , Up and down |
|
|
Power |
Power |
Overcurrent protection, overvoltage protection, reverse input protection |
|
Power input |
DC 5~12V |
|
|
Power consumption |
≤ 1W |
|
|
Common |
Video output |
CVBS |
|
Communicationport |
RS232 |
|
|
Operating Temperature |
-20℃~+60℃ |
|
|
Storage Temperature |
-45℃~+85℃ |
|
|
Humidity |
5～95%, non-condensing |
|
|
Vibration |
6.06g,all axial for random vibration |
|
|
Shock |
40g,4ms,rear peak sawtooth wave at 3 axes of 6 directions |
|
|
Dimension |
26×26×21.1mm(without lens and connectors) |
|
|
Weight |
≤23g(without lens and connectors) |
Customization Services Available
Need a different interface, lens, or firmware? We offer full customization to match your project's needs.
