8mp Wifi Camera Module SONY IMX214 1080p
|
Module Number |
SNS-wifi-imx214 |
Sensor |
1/3" IMX214 CMOS |
|
Resolution |
8mp 3840*2160 |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
Wifi |
Feature |
Wifi,HD |
Products Description

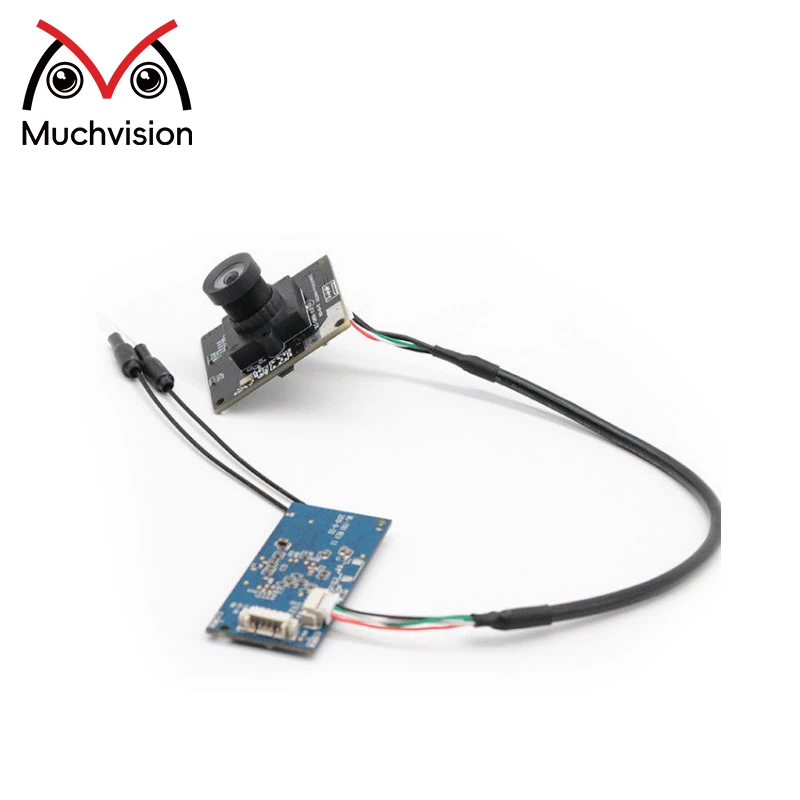

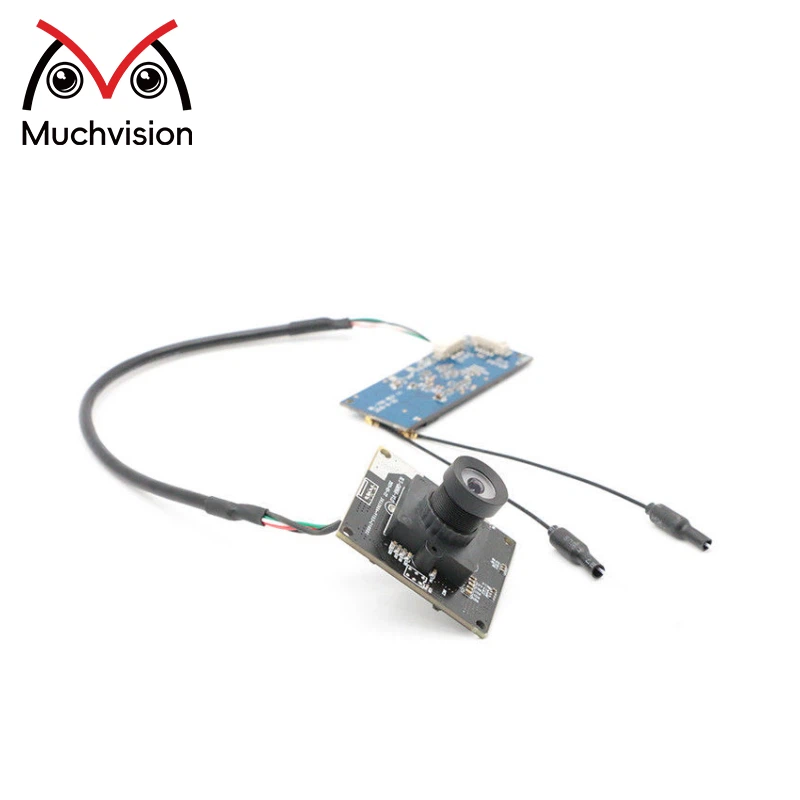

The 8MP WiFi Camera Module features the SONY IMX214 CMOS sensor with Exmor RS and SME-HDR technology, providing 4K UHD imaging at 3840x2160 and smooth 1080P@60FPS video streaming. Its fixed focal length design ensures clear images without the need for manual focus.
Equipped with built-in WiFi, this module allows wireless video transmission for various remote monitoring, smart home, and industrial applications. The compact size and low power consumption make it easy to integrate into devices where efficiency and portability are required. Additional options include customizable dimensions and built-in microphone support for synchronized audio-video capture.
Highlights
8MP 4K UHD: Clear high-definition images at 3840x2160
SONY IMX214 sensor: Exmor RS and SME-HDR for excellent low-light performance
WiFi wireless transmission: Reliable wireless connectivity solution
High-speed video recording: Supports 4K@30FPS and 1080P@60FPS
Low power and compact design: Efficient and easy to integrate
Specification
|
Model No |
SNS-wifi-imx214 |
|
|
|
Image Sensor |
SONY IMX214 |
|
|
|
Image Sensor Size |
1/3"CMOS |
|
|
|
Effective Pixels |
3840*2160 |
|
|
|
Pixel size |
1.62umX1.62um |
|
|
|
Optical distortion |
≤0.5% |
|
|
|
Image sensor Data output |
Raw Data 10bits |
|
|
|
Video output |
MPJG / YUY2 |
|
|
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
≥0.01LUX at F1.2 |
NO LED |
|
|
Digital interface |
USB BUS POWER 5P-1.0mm |
|
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
Max 1.5W |
|
|
IR-LED |
|
|
|
|
LED IR-850( |
NO |
LED |
|
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M6.5 |
LENS |
|
|
Lens Construction |
5P+IR |
|
|
|
F/NO |
2.1 |
|
|
|
EFL |
3.24mm |
|
|
|
FOV |
D:75° H:52° V:48° ±3° |
|
|
|
Micro shooting distance |
10cm-infinity |
|
|
|
MIC |
support MIC |
|
|
