OEM
|
Module Number |
SNS-OEM |
Sensor |
Omnivision/SONY/ON Semiconductor/GalaxyCore... |
|
Resolution |
0.3MP 1MP 2MP 3MP 4MP 5MP 8MP 13MP 16MP ... |
Dimension |
Customizable |
|
Lens FOV |
20--200degrees |
Focus Type |
Fixed/Auto Focus |
|
Interface |
USB/MIPI/DVP |
Feature |
WDR/HDR/Global Shutter/Starvis/HRF.... |
Products Description
OEM Camera Modules Customization Process：
Your Idea--Confirm the deails--Establish project--R&D--Sample modification--Confirm the final sample--Mass production--Shipping
Highlights
Customizable Sensor Options from Omnivision, SONY, ON Semiconductor, and GalaxyCore
Wide Resolution Range from 0.3MP to 16MP and above
Flexible Interfaces including USB2.0, USB3.0, MIPI, and DVP
Lens FOV Options from 20° to 200° with fixed or auto focus
Advanced Features available such as WDR, HDR, global shutter, and Starvis
Tailored Design Process from concept to mass production to meet application needs
Product structure
Specification
|
Model No |
SNS-OEM |
|
Sensor |
Omnivision/SONY/ON Semiconductor/GalaxyCore... |
|
Pixel |
0.3MP 1MP 2MP 3MP 4MP 5MP 8MP 13MP 16MP or Above |
|
Compression format |
MJPG / YUY2/H264 |
|
Resolution & Frame rate |
Optional |
|
Shutter Type |
Electronic rolling shutter/Global shutter |
|
Focus type |
Fixed focus/Auto focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
Optional |
|
Interface type |
USB2.0/3.0 MIPI DVP |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens FOV |
Optional |
|
Audio frequency |
Support |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 100mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |

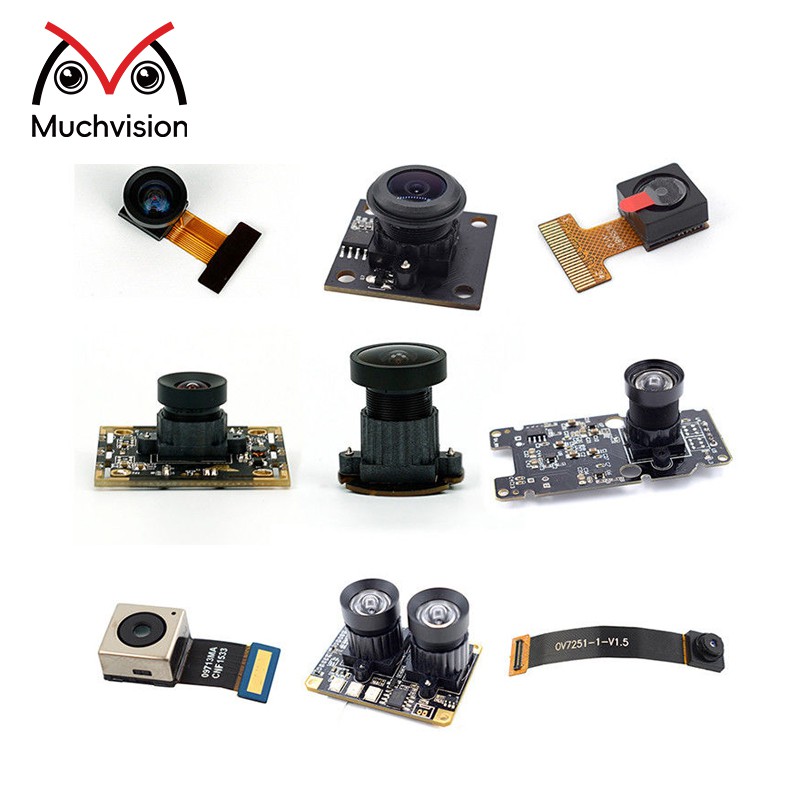

Product Picture
Application areas of camera modules
1. Marine Research Camera: Used for Marine research, capturing images of the underwater world, and studying Marine ecology
2. Geological exploration camera: Used for geological exploration to capture images of geological structures and assist geological research
3. Machine Vision inspection: The Global Exposure camera module is suitable for machine vision inspection, capturing fast moving objects without motion artifacts
