OEM
|
Module Number |
SNS-GM1045-V1.0 |
Sensor |
1/2.6'' AR0234 |
|
Resolution |
1920(H) X 1080(V) |
Dimension |
Customizable |
|
Lens FOV |
Optional |
Focus Type |
Auto Focus |
|
Interface |
USB2.0 |
Feature |
HD |
Products Description
The USB2.0 autofocus camera module integrates the AR0234 CMOS sensor, delivering 2MP 1920×1080 resolution at up to 120 frames per second. With high shutter efficiency, it minimizes inter-frame distortion and motion artifacts in high-speed scenes, ensuring crisp and stable image capture.
Engineered for industrial and security applications, the module provides low noise and enhanced low-light response. It supports advanced features including programmable ROI, automatic exposure control, strobe lighting synchronization, and flexible image processing functions such as windowing, mirroring, and pixel binning.
This high-performance yet compact camera module is suitable for scenarios requiring fast imaging, reliable autofocus, and robust image quality under varying light conditions.
Highlights
Autofocus USB2.0 Camera Module with AR0234 CMOS sensor
Supports 1080p Full HD video at up to 120FPS for smooth, high-speed capture
Minimized motion artifacts and reduced inter-frame distortion in dynamic scenes
Low noise and strong low-light performance, suitable for industrial use
Product structure
Specification
|
Model No |
SNS-GM1045-V1.0 |
|
Sensor |
1/2.6'' |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Compression format |
YUV2 / MJPG |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
3700 mV/lux-sec |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Power supply requirement |
AVDD28: 2.7~3.3V(Typ.2.8V) |
|
DVDD18: 1.15~1.3V(Typ.1.2V) |
|
|
IOVDD: 1.7~3.0V(Typ.1.8V) |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Storage temperature |
0~60℃ |
|
Operating temperature |
-20~80℃ |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |

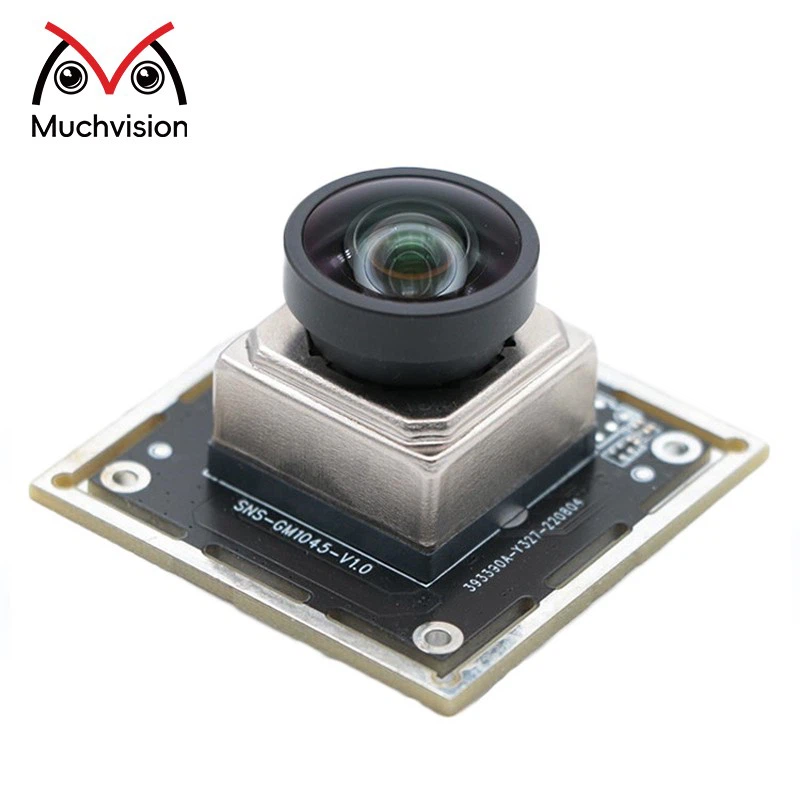

Product Picture
Application areas of camera modules
1. Solar panel testing: Used for solar panel testing to monitor solar panel performance and improve energy efficiency
2. Power line inspection: Used for power line inspection to detect the status of power lines and prevent power failures
3. Airport security monitoring: Used for airport security monitoring to ensure flight safety and monitor airport operations
