OEM
|
Module Number |
SNS-DZ1095-V1.0 |
Sensor |
1/3 SC401AI Sensor |
|
Resolution |
2568H X 1448V |
Dimension |
Customizable |
|
Lens FOV |
90°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
HD |
Products Description
The USB camera module is designed for face recognition applications using the 1/3" SC401AI sensor with 4MP resolution (2568×1448). It delivers high-definition imaging and sufficient detail for accurate facial analysis.
The module supports fixed focus, suitable for consistent subject distances, ensuring reliable face detection and recognition in real-time or near-real-time scenarios.
It is optimized to balance image quality and processing efficiency, allowing algorithms to perform effectively while minimizing computational load.
The module is versatile and widely used in security systems, smart locks, surveillance cameras, and automated devices, offering consistent performance for real-time facial recognition tasks.
Highlights
High-Resolution Imaging: 4MP resolution provides clear detail for precise facial analysis
Optimized for Face Recognition: Specifically designed to enhance real-time or near-real-time face detection
Balanced Performance: Ensures high image quality while maintaining processing efficiency
Real-Time Capability: Supports rapid face detection for security and access control applications
Specification
|
Sensor |
1/3 |
|
Pixel |
4 Mega Pixel |
|
Most effective pixels |
2568H x 1448V |
|
Pixel Size |
2.0μm x2.0μm |
|
Compression format |
MJPG / YUY2 |
|
Resolution |
see above |
|
Frame rate |
see above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TdB |
|
Dynamic range |
TdB |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm FOV:D90° H180°V180°F/N(2.0) Thread Size: M12*P0.5 |
|
Audio frequency |
Support |
|
microphone |
Built-in |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Not Supported |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
-30°C ~+85°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |

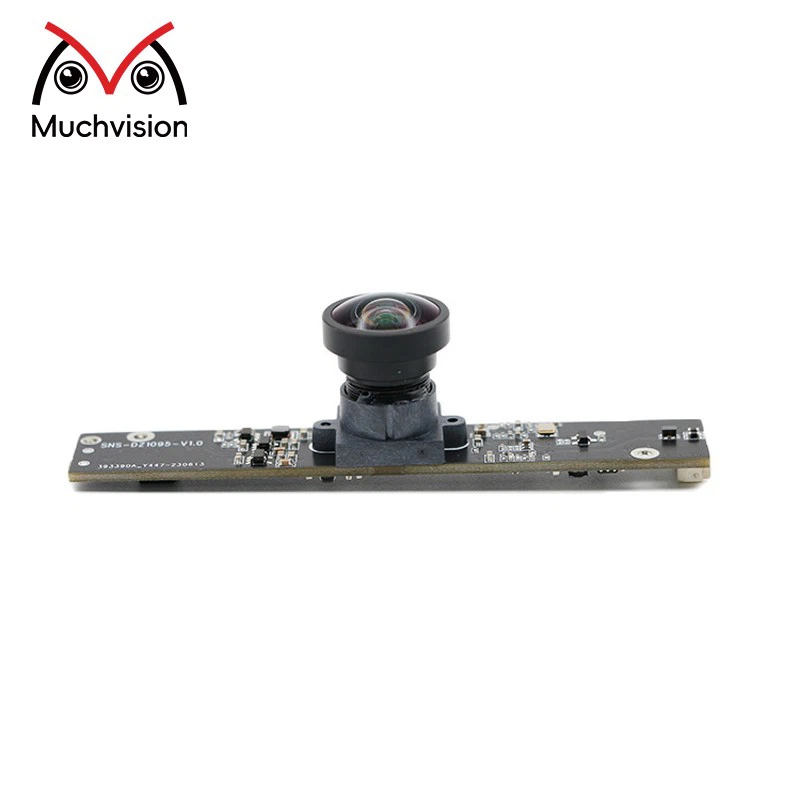

Product Picture
Application areas of camera modules
1. Industrial testing equipment: Used for industrial testing equipment to detect product defects and improve product quality
2. Automated robots: Integrated into automated robots to provide visual support and improve the navigation and operation capabilities of robots
3. Sports photography: Used in sports photography to capture the high-speed movements of athletes and provide moving images
