OEM
|
Module Number |
SNS-DZ1803M-V1 |
Sensor |
1/9"GalaxyCore GC0329 |
|
Resolution |
0.3MP HD 648(H)X488(V) |
Dimension |
Customizable |
|
Lens FOV |
25°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
For Education Reading Pen |
Products Description
The USB camera module is designed for educational reading pens, using the 1/9" GalaxyCore GC0329 sensor with 0.3MP HD resolution (648×488). It delivers clear imaging with low power consumption, making it ideal for portable educational devices.
This module supports USB2.0 interface for plug-and-play operation, and the sensor works well with low-pixel algorithms to accurately capture text for early childhood learning applications.
The module is compact and customizable, allowing integration into devices with limited space while maintaining high performance for text recognition and learning assistance.
It also supports adjustable parameters such as brightness, contrast, white balance, and exposure, ensuring consistent image quality for educational and learning tools.
Highlights
Optimized for Educational Reading Pens: Designed to capture and process text accurately for early learning applications
High-Performance GC0329 Sensor: Excels in low-pixel imaging scenarios, delivering clear text recognition
USB2.0 Interface: Plug-and-play operation for easy integration into educational devices
Low Power Consumption: Suitable for battery-operated devices and portable learning tools
Specification
|
Module No |
SNS-DZ1803M-V1 |
|
Pixel Size |
3.0μm x 3.0μm |
|
Effective Pixels |
HD 648(H)X488(V) |
|
Video output |
YUV2 MJPG |
|
Active Array Size Video Rate |
640x480 @30 fps 320x240 @ 30fps 240x180@ 30fps |
|
Image Sensor |
1/9" GC0329 |
|
SNR max |
TBDdB |
|
Dynamic range |
TBDdB |
|
OTG |
USB2.0 OTG |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
|
Lens view |
FOV25°(optional),F/N(optional) |
|
Interface |
USB BUS POWER 5P-1.25mm |
|
Operating Voltage |
DC5V |
|
Operating Current |
MAX120MMA |
|
Operating temperature |
0～60℃ |
|
Storage temperature |
-20～70℃ |
|
Cable length |
Defualt |
|
OS |
WinXP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |

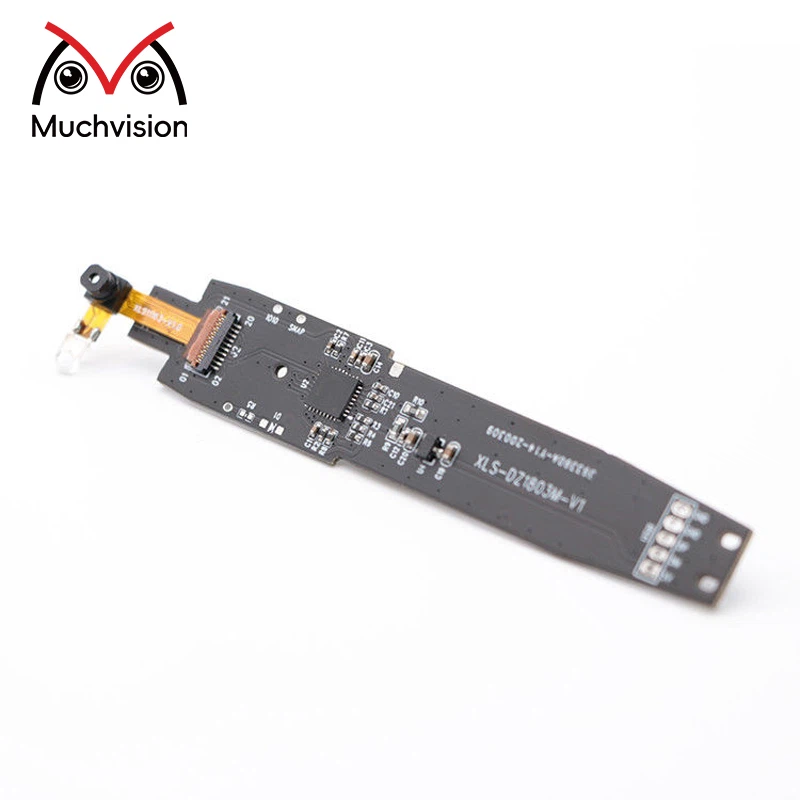

Product Picture
Application areas of camera modules
1. Video conferencing system: Used for video conferencing systems to provide a clear video call experience
2. Intelligent Transportation System: Used for intelligent transportation systems to monitor traffic conditions and optimize traffic flow
3. Environmental monitoring camera: Used for environmental monitoring, capture environmental changes, protect the natural ecology
