OEM
|
Module Number |
SNS-18903-V1.0 |
Sensor |
1/10" GalaxyCore GC032A |
|
Resolution |
0.3MP 640(H) X 480(V) |
Dimension |
Customizable |
|
Lens FOV |
80°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
DVP |
Feature |
Low Power |
Products Description
The 0.3MP DVP camera module uses a GalaxyCore GC032A CMOS sensor with 640×480 resolution and a 1/10-inch optical format, delivering high-quality images with low noise. Its fixed focus design simplifies integration and ensures consistent image clarity.
The module features a built-in 10-bit ADC and image signal processor, enhancing image processing performance while maintaining a low-power design suitable for mobile phones, PDAs, and other battery-powered devices.
This camera module is ideal for mobile phone rear cameras, security monitoring, power line inspections, and marine research, providing reliable imaging for a variety of applications. Its DVP interface allows easy integration into embedded systems and low-cost devices.
Highlights
Cost-Effective Solution: Designed for low-budget mobile phone rear camera applications
High Image Quality: GC032A sensor with 4-transistor pixel structure ensures low noise and clear imaging
Built-In Image Processing: 10-bit ADC and ISP enhance image performance
Low Power Design: Extends battery life of mobile and portable devices
Product structure
Specification
|
Module No |
SNS-18903-V1.0 |
|
Pixel Size |
2.2μm x 2.2μm |
|
Effective Pixels |
640×480 |
|
Video output |
Raw Bayer10bit/8bit |
|
Image Sensor |
1/10" |
|
Sensor Type |
GalaxyCore GC032A |
|
Lens view |
FOV80°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:2.7~3.0V DOVDD:1.7~3.0V DVDD:1.7~1.9V |
|
Operating temperature |
-20～70℃ |
|
Storage temperature |
0～50℃ |
|
Dimensions |
Customizable |

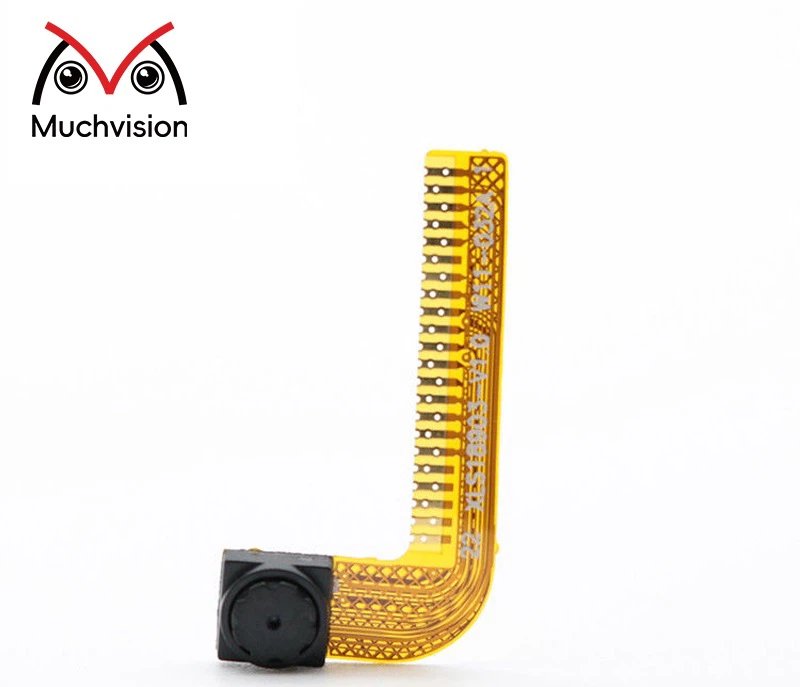

Product Picture
Application areas of camera modules
1. Power line inspection: Used for power line inspection to detect the status of power lines and prevent power failures
2. Airport security monitoring: Used for airport security monitoring to ensure flight safety and monitor airport operations
3. Marine Research Camera: Used for Marine research, capturing images of the underwater world, and studying Marine ecology
