OEM
|
Module Number |
SNS-1MP-OV9734-S2 |
Sensor |
1/9" Omnivision OV9734 |
|
Resolution |
1MP 1280(H) X 720(V) |
Dimension |
Customizable |
|
Lens FOV |
60°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
Endoscope Camera Module |
Products Description
This 1MP medical endoscope camera module features a 1/9-inch Omnivision OV9734 sensor for high-resolution imaging with excellent clarity and low-light performance. Its fixed-focus lens ensures accurate capture of fine details for medical diagnostics and robotic applications.
The module supports USB2.0 connectivity, making integration with endoscope systems and other medical devices seamless. Its compact and lightweight design allows easy installation in tight spaces while maintaining high image quality.
Fully customizable, this camera module is ideal for medical endoscopy, robotic surgery, sports photography, and video conferencing systems, offering a reliable and adaptable imaging solution for OEMs.
Highlights
High-Performance Imaging delivers clear and precise visuals for medical diagnostics and procedures
Omnivision OV9734 Sensor ensures excellent low-light performance and image quality
Compact and Lightweight Design suitable for integration into endoscope and medical systems
USB2.0 Connectivity enables seamless integration with medical and robotic devices
Customizable Module adaptable to specific OEM requirements for versatile applications
Specification
|
Module No |
SNS-1MP-OV9734-S2 |
|
Pixel Size |
1.4μm x 1.4μm |
|
Effective Pixels |
1MP 1280(H) x 720(V) |
|
Video output |
Raw Bayer10bit/8bit |
|
Active Array Size Video Rate |
30FPS |
|
Image Sensor |
1/9" |
|
Sensor Type |
Omnivision OV9734 |
|
Lens view |
FOV60°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
-20～70℃ |
|
Storage temperature |
0～50℃ |
|
Dimensions |
Customizable |

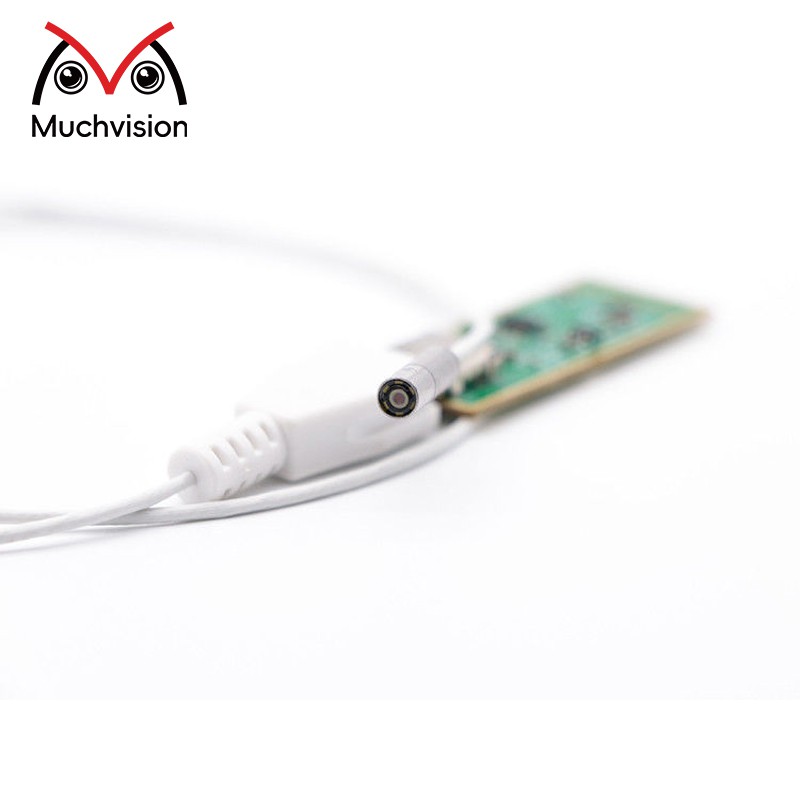

Product Picture
Application areas of camera modules
1. Automated robots: Integrated into automated robots to provide visual support and improve the navigation and operation capabilities of robots
2. Sports photography: Used in sports photography to capture the high-speed movements of athletes and provide moving images
3. Video conferencing system: Used for video conferencing systems to provide a clear video call experience
