OEM
|
Module Number |
SNS-PC825M-V1 |
Sensor |
1/4" Omnivision OV5693 |
|
Resolution |
5MP 2592(H)X1944(V) |
Dimension |
Customizable |
|
Lens FOV |
65°(optional) |
Focus Type |
Auto Focus |
|
Interface |
USB2.0 |
Feature |
HD |
Products Description
The 5MP USB camera module features the Omnivision OV5693 sensor, delivering high-definition imaging at 2592x1944 resolution with up to 30fps performance.
It includes auto focus for clear visuals across different distances and integrates dual microphones for excellent audio capture, making it ideal for video conferencing and communication applications.
The module connects via USB2.0, supports MJPG/YUY2 output formats, and offers low-light performance with a minimum illumination of 0.01LUX. Its customizable PCB design allows flexible integration into various devices and enclosures.
Highlights
5MP HD Resolution with 2592x1944 pixels for sharp, detailed images
Omnivision OV5693 Sensor supports smooth video at up to 30fps
Auto Focus Lens ensures clarity from 10cm to infinity
Dual Microphones provide superior audio for video conferencing
Specification
|
Model No |
SNS-PC825M-V1 |
|
|
|
Image Sensor |
Omnivision OV5693 |
|
|
|
Image Sensor Size |
1/4"CMOS |
|
|
|
Effective Pixels |
2592(H)X1944(V) |
|
|
|
Pixel size |
1.4umX1.4um |
|
|
|
Optical distortion |
≤0.5% |
|
|
|
Image sensor Data output |
Raw Data 10bits |
|
|
|
Video output |
MPJG / YUY2 |
|
|
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
≥0.01LUX at F1.2 |
NO LED |
|
|
Digital interface |
USB BUS POWER 5P-1.0mm |
|
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
Max 1.5W |
|
|
|
IR-LED |
|
|
|
LED IR-850( |
NO |
LED |
|
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens Construction |
5P+IR |
|
|
|
F/NO |
2.2 |
|
|
|
EFL |
3.5mm |
|
|
|
FOV |
D:65°±3° |
|
|
|
Micro shooting distance |
AF 10cm-infinity |
|
|
|
MIC |
support MIC |
|
|

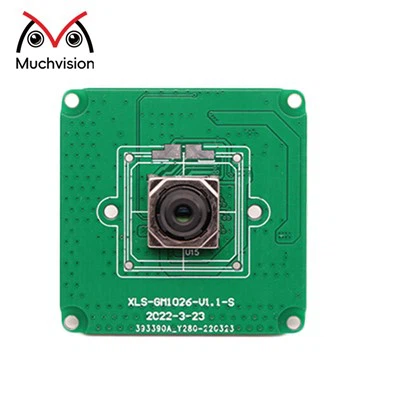

Product Picture
Application areas of camera modules
1. Traffic monitoring: Used for traffic monitoring, monitoring traffic flow and road safety, reducing traffic accidents
2. Industrial testing equipment: Used for industrial testing equipment to detect product defects and improve product quality
3. Automated robots: Integrated into automated robots to provide visual support and improve the navigation and operation capabilities of robots
