OEM
|
Module Number |
SNS-SEE8820-V1.0 |
Sensor Target Surface |
1/5' Inch |
|
Most Effective Pixels |
800H*600V |
Effective Focal Length (Fixed Focus Lens) |
1.928 Mm |
|
Maximum FrameRates |
30FPS |
Wavelength Range |
380~980 Nm |
|
Module Resolution |
176 LW/PH |
Operating Temperature |
-10°C to 25°C |
Products Description
The multispectral imaging camera module delivers single-exposure spectral acquisition at up to 30fps, ensuring fast and efficient imaging. Powered by the NVIDIA Jetson platform, it supports high-speed, real-time processing for demanding applications.
It integrates a self-developed CMOS-based spectral sensor, reducing system complexity and improving reliability compared with traditional spatial light dispersion solutions.
The module provides multiple interfaces, including USB3.0, HDMI, and WLAN, enabling seamless connectivity with host devices. With built-in data acquisition, spectral reconstruction, and analysis software, it supports continuous spectral detection while retaining detailed information across the 380–980nm wavelength range.
Highlights
Single-Exposure Multispectral Imaging up to 30fps for real-time performance
High-Performance NVIDIA Jetson Platform for fast processing and data recovery
Multiple Interfaces including USB3.0, HDMI, and WLAN for flexible connectivity
Integrated Software Solution with acquisition, reconstruction, and analysis tools
Specification
|
Model No |
SNS-SEE8820-V1.0 |
Sensor Target Surface |
1/5' Inch |
|
Most Effective Pixels |
800H*600V |
Pixel Size |
1.75 Um * 1.75 Um |
|
Image Bit Depth |
10 Bit |
Maximum FrameRates |
30FPS |
|
Module Resolution |
176 LW/PH |
Effective Focal Length (Fixed Focus Lens) |
1.928 Mm |
|
Imaging Distance |
423 ~ Inf Mm |
Wavelength Range |
380~980 Nm |
|
Spectral Resolution |
50nm |
Operating Temperature |
-10°C To 25°C |

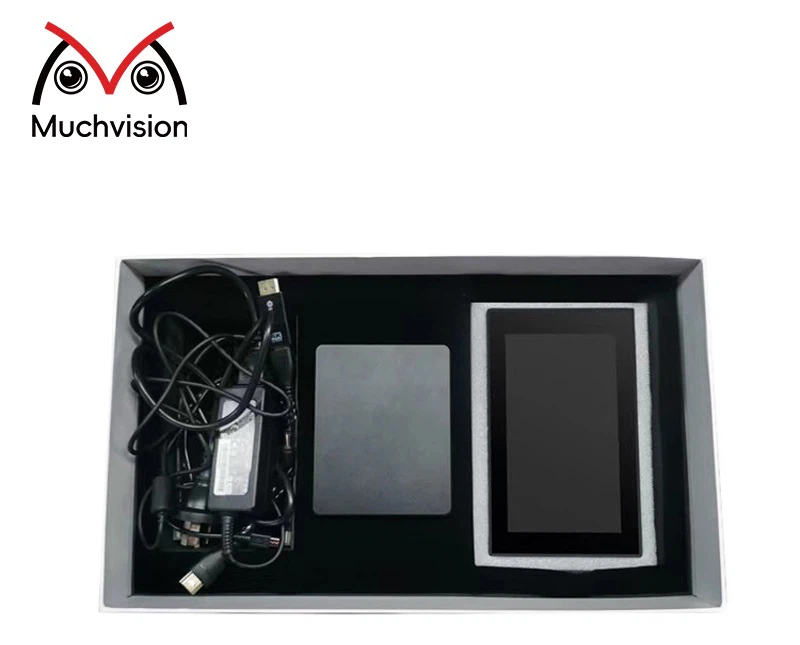

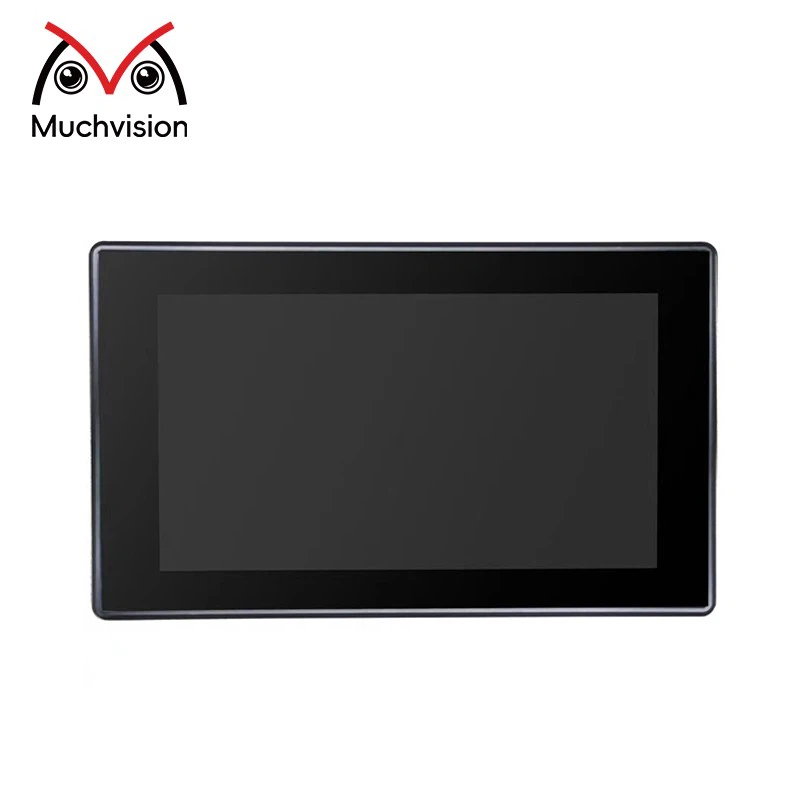

Product Picture
Application areas of camera modules
1. Sports photography: Used in sports photography to capture the high-speed movements of athletes and provide moving images
2. Video conferencing system: Used for video conferencing systems to provide a clear video call experience
3. Intelligent Transportation System: Used for intelligent transportation systems to monitor traffic conditions and optimize traffic flow
