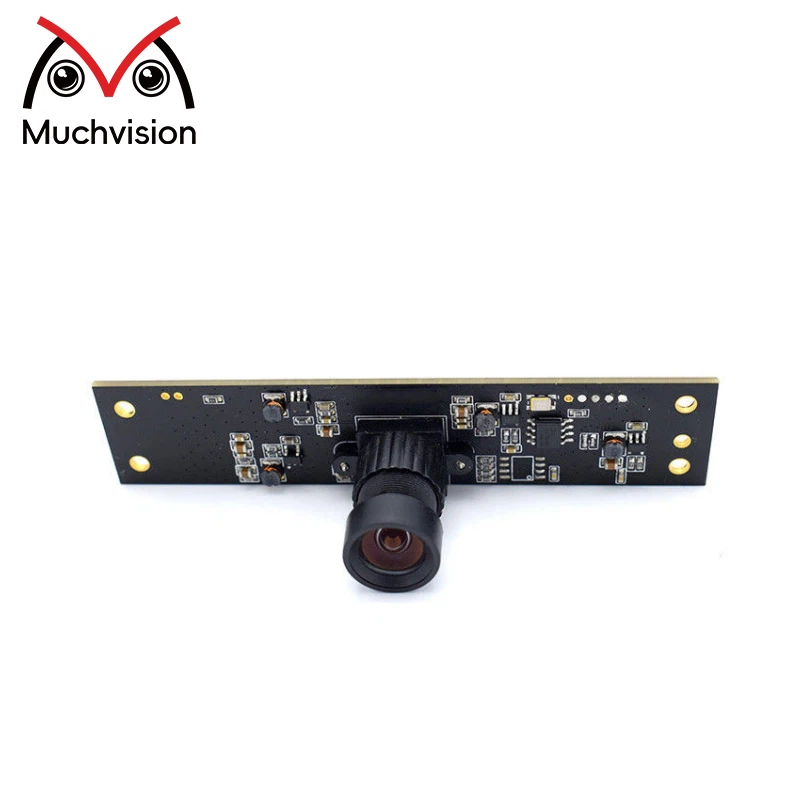

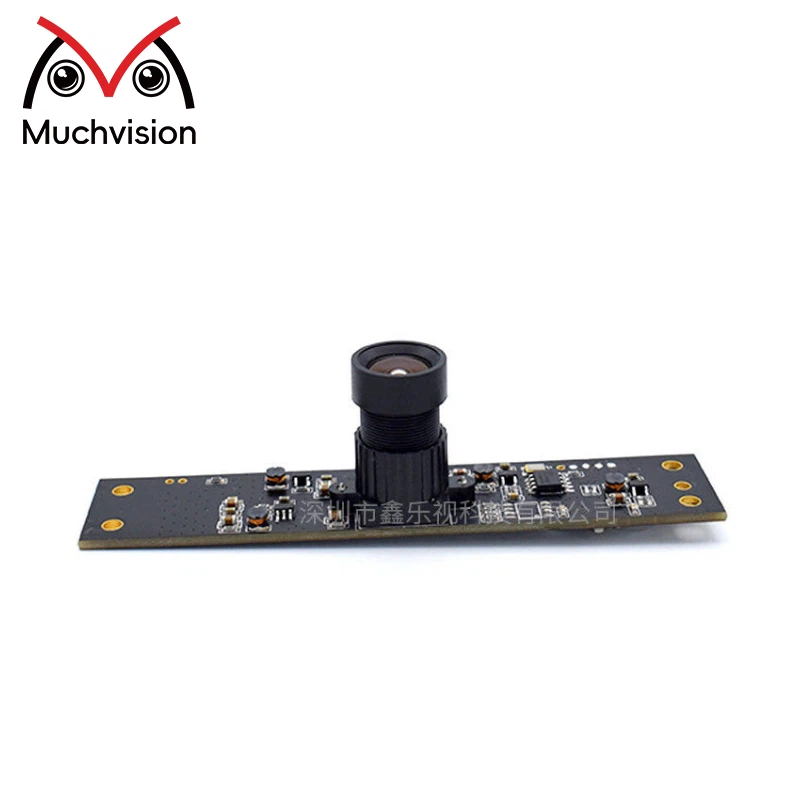

1080p Micro OV2710 USB 2MP Camera Module
|
Module Number |
SNS-2MP-OV2710-V1.0 |
Sensor |
Omnivision OV2710 |
|
Resolution |
2MP (1920*1080) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
HD |
Products Description
This USB camera module features the popular Omnivision OV2710 sensor, delivering sharp 2MP (1920x1080) images. It supports multiple frame rates to suit various applications:
1080p at 30FPS for detailed Full HD video
720p at 60FPS for smoother motion
VGA at 120FPS and QVGA at 240FPS for high-speed motion imaging
The fixed-focus design simplifies installation, while the USB2.0 interface ensures easy plug-and-play integration. The module's 32x32mm size can be fully customized to fit your product housing. This makes it ideal for video conferencing, laptops, and self-service terminals.
Highlights
Variable Frame Rate: Supports multiple frame rates up to 240FPS for versatile applications.
Full HD 1080p: Delivers crisp and clear 2MP images.
Reliable Performance: Uses a proven Omnivision OV2710 sensor for stable results.
Fixed Focus Design: Simplifies installation and maintenance-free operation.
Customizable Size: 32x32mm module size can be adapted to your product housing.
Plug-and-Play USB: Easy integration with standard USB2.0 interface.
Product Structure
Specification
|
Pixel Size |
3.0μm x 3.0μm |
|
Effective Pixels |
HD 1928(H)X1088(V) |
|
Image Sensor |
1/2.7" |
|
AEC/AWB/AGC |
Supported |
|
Lens View |
FOV90°(Optional),F/N(Optional) |
|
Interface |
USB BUS POWER 5P-1.25mm |
|
Operating Voltage |
DC5V |
|
Working Current |
120mA~220mA |
|
Dimension |
32*32mm |
|
Cable Length |
1m/1.5m |
