Module Number |
SNS-1MP-GC1054-typ |
Sensor |
1/4 GC1054 |
|
Resolution |
1280(H) X 720(V) |
Dimension |
Customizable |
|
Lens FOV |
95°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
Low Power Consumption |
Products Description
The SNS-1MP-GC1054-typ is a 1MP USB camera module with a 1/4-inch GC1054 sensor. It delivers 1280x720 HD video at 30FPS with fixed focus.
This low-power camera module supports efficient imaging with minimal energy consumption, making it ideal for battery-powered and energy-sensitive devices.
With a 95° field of view and compact design, it is suitable for action cameras, automotive DVRs, surveillance toys, video conferencing, digital cameras, and industrial equipment. Its reliable performance ensures consistent image quality across diverse environments.
Highlights
Low Power Consumption – Optimized for energy-efficient and battery-powered applications
High-Quality Imaging – 1/4-inch GC1054 sensor delivers 1280x720 HD video for clear visuals
Versatile Applications – Perfect for action cameras, automotive systems, DVRs, surveillance toys, video conferencing, and industrial equipment
Compact and Reliable – Small form factor ensures easy integration and dependable operation
Specification
|
Parameter |
Typical value |
|
Optical Format |
1/4inch |
|
Pixel Size |
3.0um*3.0um |
|
Active pixel array |
1280*720 |
|
ADC resolution |
10bit ADC |
|
Max Frame rate |
30fps@36MHz,DCLK |
|
Power Supply
|
AVDD:3.15-3.45V(Typ.3.3V) |
|
DVDD:1.4-1.6(Typ.1.5V) |
|
|
IOVDD:1.7-3.45V(Typ.1.8V) |
|
|
Power Consumption |
110mW@30fps,720p |
|
SNR |
41.4dB |
|
Dart Current |
200e-/s(60) |
|
Sensitivity |
18000e-/lux-sec |
|
Dynamic range |
70.7dB |
|
Operating temperature |
-30-80 |
|
Stable Image temperature |
0-50 |
|
Optimal Lens chief ray angle(CRA) |
12(linear) |
|
Package type |
CSP/PLCC |
|
Input clock frequency |
6-27MHz |

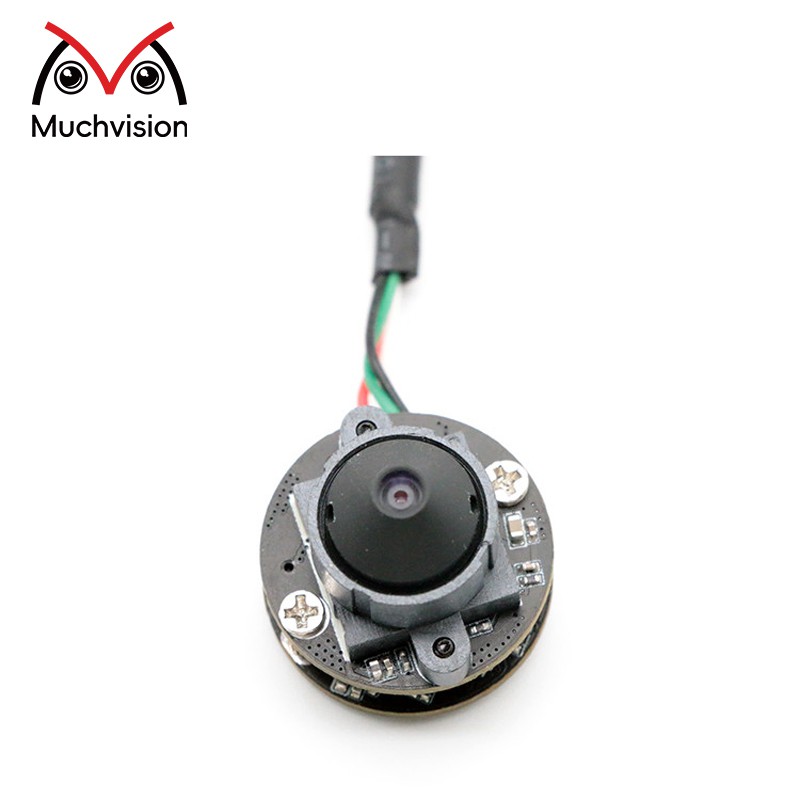

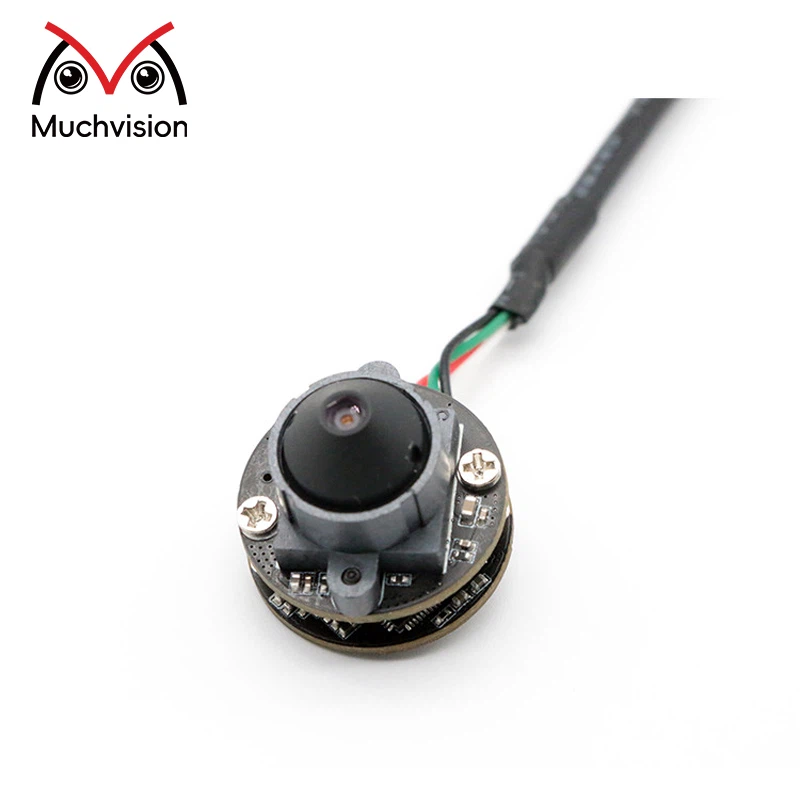

Product Picture
