IMX298 USB 16MP Camera Module Main parameters
|
Module Number |
SNS-GM1109-V1.0 |
Sensor |
IMX298 |
|
Resolution |
16mp |
Dimension |
Customizable |
|
Lens FOV |
70 (Optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB 2.0 |
Feature |
HDR |
Products Description
The USB camera module integrates a Sony IMX298 CMOS sensor with 4640×3480 effective pixels, delivering professional-grade 16MP imaging.
HDR support ensures accurate color reproduction and balanced exposure in challenging lighting conditions.
Fixed focus lens provides consistently sharp images for industrial, medical, and security applications.
USB 2.0 interface supports plug-and-play operation on Windows, Linux, and Android systems without additional drivers.
Compact 38×38mm module design allows easy integration into embedded systems or precision measurement devices.
Key Features/Advantages
High Resolution: 16MP IMX298 sensor delivers sharp and highly detailed images.
HDR Imaging: Captures balanced images in complex lighting conditions with accurate colors.
Fixed Focus Lens: Consistently sharp and clear imaging across applications.
USB Plug-and-Play: Compatible with Windows, Linux, and Android systems for easy deployment.
Compact and Robust Design: Easy to integrate into embedded systems, industrial, and medical devices.

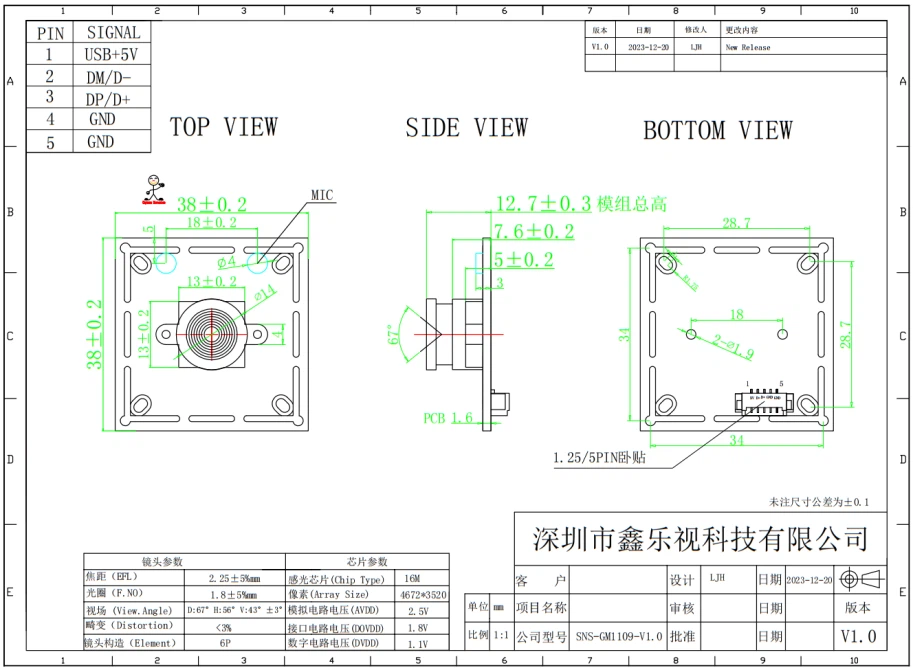

Product structure
Specification
|
Signal |
SNS-GM1109-V1.0 |
REMARKS |
|
Image Sensor Size |
1/2.8inch |
|
|
Effective Pixels |
4672H*3520V |
|
|
Pixel size |
1.12 um*1.12 um |
|
|
Optical distortion |
<3% |
|
|
Image sensor Data output |
Raw Bayer 10bits |
|
|
Video output |
MPJG/YUV |
|
|
Maximum Frame Rates |
4608*3456 10FPS 4160*3120 10FPS 3840*2160 25FPS 3264*2448 10FPS 2592*1944 10FPS 2304*1728 25FPS 2048*1536 30FPS 1920*1080 30FPS 1280*720 30FPS 640*480 30FPS |
|
|
SNR max |
TBD |
|
|
Dynamic range |
TBD |
|
|
Min. Illumination |
TBD |
|
|
Digital interface |
5pin 1.25mm USB2.0 |
Cable length 1.5 meters |
|
Transfer rates |
480MB/S |
|
|
Power requirements |
5V±5% |
|
|
Storage temperature |
-20℃to70℃ |
|
|
operating temperature |
-10℃to60℃ |
|
|
PCB printig ink |
black |
|
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
Lens view |
M12*P0.5 |
LENS |
|
Lens Construction |
6P |
|
|
F/NO |
1.8±5% |
|
|
EFL |
2.25mm±5% |
|
|
FOV |
D:67°H:56°V:43°±3° |
|
|
Focusing method |
Fixed focus |
|
|
Shooting distance |
10mm-∞ |
|
Product Picture
Application areas of camera modules
1. Marine Research Camera: Used for Marine research, capturing images of the underwater world, and studying Marine ecology
2. Geological exploration camera: Used for geological exploration to capture images of geological structures and assist geological research
3. Machine Vision inspection: The Global Exposure camera module is suitable for machine vision inspection, capturing fast moving objects without motion artifacts
