IMX415 8MP Camera Module HD Main parameters
|
Module Number |
SNS-DZ1065-V1.0 |
Sensor |
IMX415 |
|
Resolution |
4k 8mp |
Dimension |
Customizable |
|
Lens FOV |
163 (Optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB 2.0 |
Feature |
4K UHD |
Products Description
The USB camera module features a Sony IMX415 CMOS sensor with 3864×2228 effective pixels, supporting 4K UHD resolution and high-frame-rate video capture.
Its ultra-wide 163° lens and fixed focus design deliver clear and detailed images in dynamic and wide-area scenes.
Plug-and-play USB 2.0 interface ensures compatibility with Windows, Linux, Mac, and Android systems for easy integration.
Compact size makes it suitable for embedded applications, AR systems, 3D scanning, industrial vision, construction safety monitoring, and surveillance.
Key Features/Advantages
High-Resolution Imaging: 8MP IMX415 sensor delivers crisp 4K UHD images.
Ultra-Wide Coverage: 163° lens captures expansive scenes efficiently.
High-Frame-Rate Video: Smooth and accurate capture of dynamic activities.
Plug-and-Play USB Interface: Supports multiple platforms including Windows, Linux, Mac, and Android.
Product structure
Specification
|
Signal |
SNS-DZ1065-V1.0 |
REMARKS |
|
|
Image Sensor Size |
1/2.8inch |
||
|
Effective Pixels |
3864H*2228V |
|
|
|
Pixel size |
1.45 um*1.45 um |
|
|
|
Optical distortion |
<10.2% |
|
|
|
Image sensor Data output |
Raw Bayer 10bits |
|
|
|
Video output |
MPJG/YUV |
|
|
|
Maximum Frame Rates |
3840*2160 30FPS 2592*1944 30FPS 2048*1536 30FPS 1600*1200 30FPS 1920*1080 30FPS 1280*960 30FPS 1280*720 30FPS 800*600 30FPS 640*480 30FPS 320*240 30FPS |
||
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
TBD |
||
|
Digital interface |
5pin 1.25mm USB2 |
Cable length 1.5 meters |
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
TBD |
|
|
IR-LED |
TBD |
|
|
|
PCB printig ink |
black |
||
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M12*P0.5 |
LENS |
|
|
Lens Construction |
6G+IR |
|
|
|
F/NO |
1.6±5% |
|
|
|
EFL |
2.3 mm±5% |
|
|
|
FOV |
163°±3° |
|
|
|
Focusing method |
Fixed focus |
|
|
|
Shooting distance |
60cm-∞ |
|
|

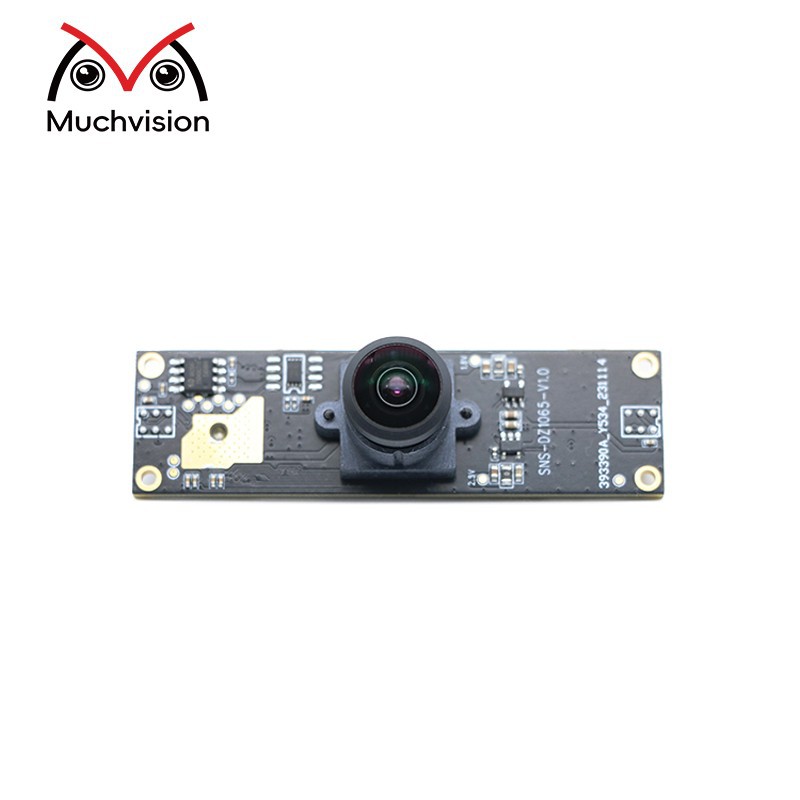

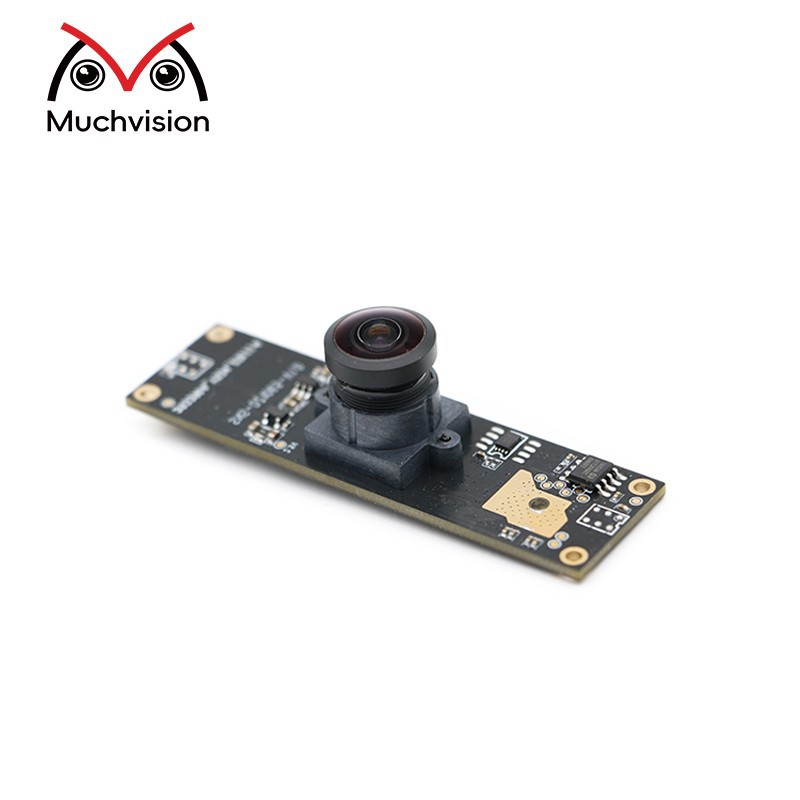

Product Picture
Application areas of camera modules
1. Augmented Reality (AR) : for augmented reality applications that combine real world and virtual information to provide an enhanced visual experience
2. 3D Scanning and modeling: Used for 3D scanning and modeling to capture three-dimensional information about objects for design and manufacturing
3. Construction safety monitoring: used for safety monitoring of construction sites to prevent accidents and ensure worker safety
