Module Number |
SNS-0.3MP-GC0308-S1 |
Sensor |
1/ 6.5" GalaxyCore GC0308 |
|
Resolution |
0.3MP (640*480) |
Dimension |
30mmx25mm(customizable) |
|
Lens FOV |
60°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
Low Power Consumption |
Products Description
The SNS-0.3MP-GC0308-S1 is a 0.3MP USB camera module with a 1/6.5-inch GalaxyCore GC0308 sensor. It delivers VGA 640x480 resolution at 30FPS with fixed focus.
This module is optimized for low power consumption, using only 70mW by excluding LEDs and microphones. Its cost-effective design ensures reliable performance while minimizing price.
Compact and versatile, it is suitable for desktop PCs, electronic toys, robotics, machine vision, industrial equipment, video conferencing, security systems, bar code readers, and ticket gates. Its stable imaging and efficient design make it ideal for both professional and consumer applications.
Highlights
High-Quality & Stable Imaging – Features GalaxyCore GC0308 sensor with VGA 640x480 resolution for clear visuals
Low Power Consumption – Consumes only ~70mW, optimized for energy efficiency
Cost-Effective Design – Affordable USB camera module leveraging strong supplier partnerships
Specification
|
Model No |
SNS-0.3MP-GC0308-S1 |
|
Sensor |
1/ 6.5'' GalaxyCore GC0308 |
|
Pixel |
0.3 Mega Pixel |
|
Most effective pixels |
640 (H) x 480 (V) |
|
Pixel Size |
3.4µm x 3.4µm |
|
Compression format |
YUY2 ONLY |
|
Resolution & Frame rate |
640x480@30fps; 352x288@30fps; 320x240@30fps; 176x144@30fps; 160x120@30fps; |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
49dB |
|
Dynamic range |
55dB |
|
Sensitivity |
3300mV/Lux-sec |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/Gamma |
|
Audio frequency |
Optional |
|
Lens FOV |
Default 60° (Optional) |
|
Lens Thread Size |
M12*P0.5 (Optional) |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 70mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
NOT Support |
|
Auto White Balance (AEB) |
NOT Support |
|
Auto Gain Control (AGC) |
NOT Support |
|
Dimension |
30mm x 25mm |
|
Storage temperature |
-30°C to 80°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |

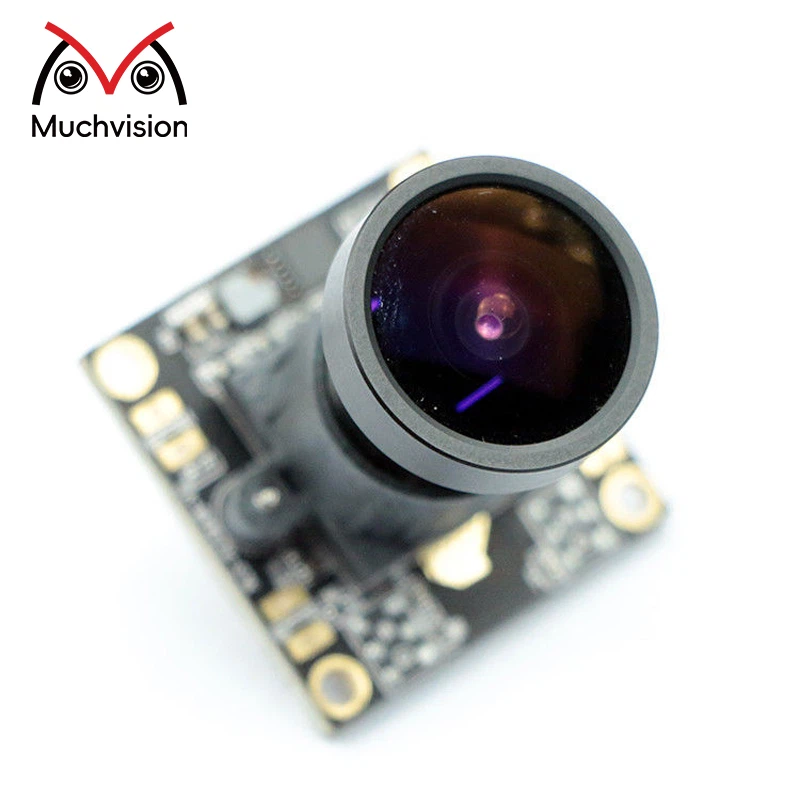

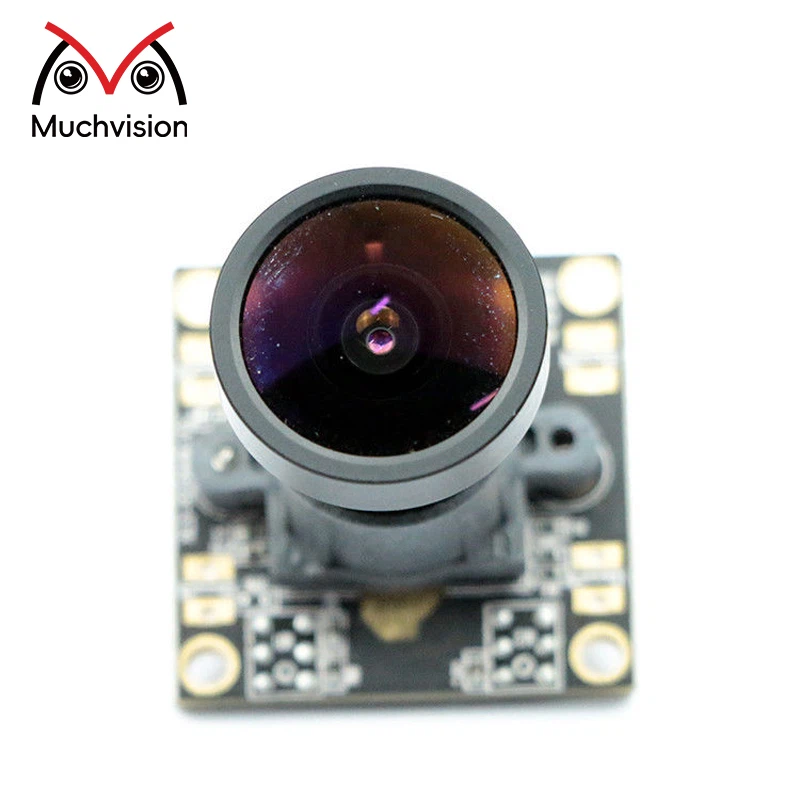

Product Picture
