Module Number |
SNS-2MP-GC2053-iio |
Sensor |
1/2.7''OmnivisionOV2735CMOS |
|
Resolution |
1920(H) X 1080(V) |
Dimension |
Customizable |
|
Lens FOV |
95°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
HDR |
Products Description
The 1080p 2MP USB Camera Module features a 1/2.7-inch sensor with a maximum resolution of 1920x1080, offering dual output formats of MJPEG and YUY2. It delivers high-definition, high-dynamic-range imaging, ensuring excellent image quality even in low-light conditions. Capable of capturing full 1080P video at 30FPS and 720P at 60FPS, this versatile module is ideal for applications in security systems, car dashcams, web cameras, video conferencing equipment, and digital advertising displays. Its compact design and superior performance make it a reliable choice for various professional and consumer uses.
Highlights
*High-Resolution Imaging: Features a 1/2.7-inch sensor with a maximum resolution of 1920x1080, delivering sharp and detailed visuals.
*Dual Output Formats: Supports both MJPEG and YUY2 formats, providing flexibility for various applications.
*Superior Low-Light Performance: Offers high-definition, high-dynamic-range imaging, ensuring excellent image quality even in challenging lighting conditions.
* Versatile Frame Rates: Capable of 1080P at 30FPS and 720P at 60FPS, making it suitable for a wide range of uses, from security systems to video conferencing.
Specification
|
Model No |
SNS-2MP-GC2053-iio |
|
Sensor |
1/2.7'' Omnivision OV2735 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image Area |
5808µm x 3288µm |
|
Compression format |
YUV2 / MJPG |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
3700 mV/lux-sec |
|
Interface type |
USB2.0 |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
IR Cut filter: 850nm |
|
|
FOV: 95° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38x38MM |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 55°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |

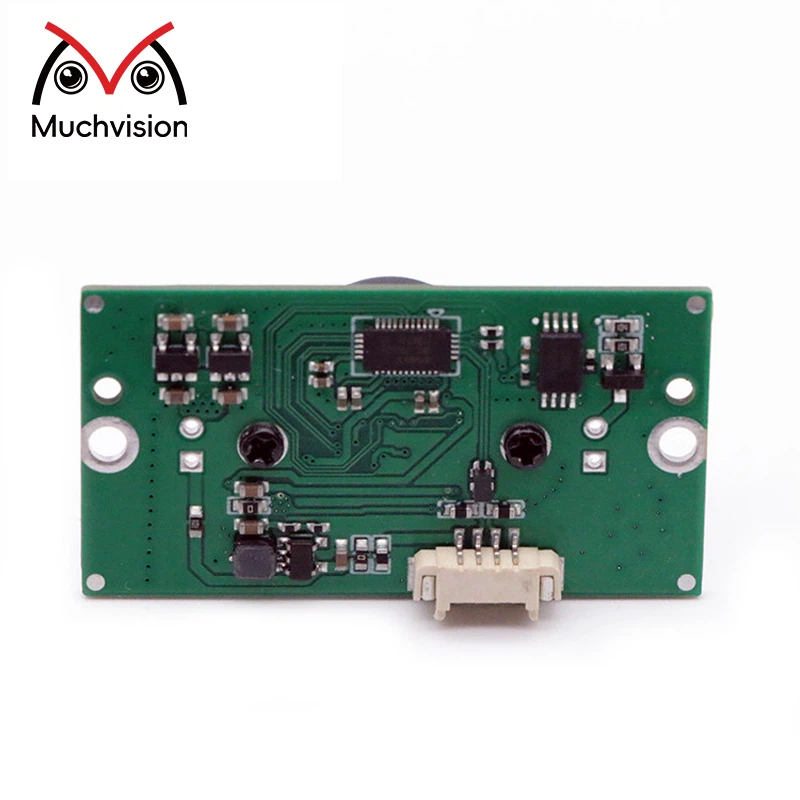

Product Picture
