2MP USB Camera Module SONY IMX307
|
Module Number |
SNS-2MP-IMX307-pjl |
Sensor |
1/2.8'' SONY IMX307 CMOS |
|
Resolution |
1920(H) X 1080(V) |
Dimension |
Customizable |
|
Lens FOV |
100°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
HDR |
Products Description
The 2MP USB camera module uses the SONY IMX307 CMOS sensor to provide high-quality 1080p HDR video. Its 1600×1200 resolution captures detailed images with excellent light adaptation.
The fixed-focus lens simplifies installation and ensures consistent image quality. With optional 100° FOV, it offers a wide viewing angle suitable for multiple applications.
The module supports USB2.0 plug-and-play connectivity, allowing seamless integration into PCs, embedded devices, mobile devices, and smart cameras. Low power consumption and compact 38×38mm size make it suitable for space-constrained installations.
Highlights
2MP Full HD Resolution – 1600×1200 for clear and detailed imaging
SONY IMX307 Sensor – High-quality CMOS sensor for HDR imaging
1080P HDR Support – Balanced exposure in bright and dark areas
Fixed-Focus Lens – Easy setup with consistent image quality
Specification
|
Sensor |
1/5'' inch GC02M2 |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1600(H) x 1200(V) |
|
Pixel Size |
1.75µm x 1.75µm |
|
Dimension |
customizable |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
Lens |
Focal length: 3.6mm |
|
IR Cut filter: 850nm |
|
|
FOV: 95° |
|
|
Thread Size: M12*P0.5 |
|
|
Compression format |
YUV2/MJPG |
|
Power consumption |
TBDmA |
|
Interface type |
USB2.0 |
|
Frame rate |
30fps@UXGA |
|
30fps@HD 720P |
|
|
60fps@SVGA |
|
|
Dimension |
38x38MM |
|
Storage temperature |
-40°C to 85°C |
|
Operating temperature |
-20°C to 70°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |

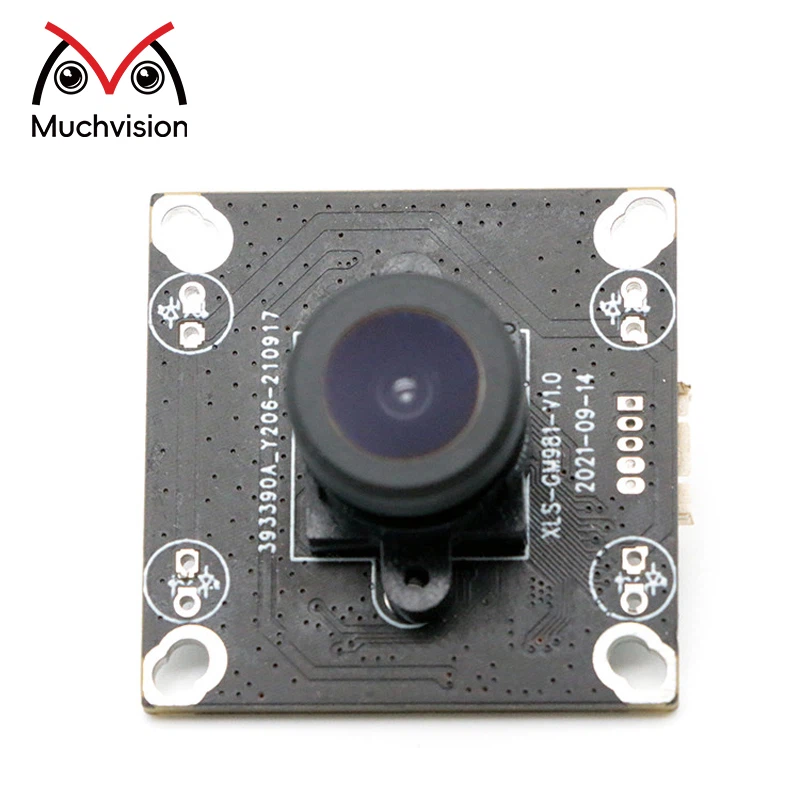

Product Picture
