Module Number |
SNS-4MP-OV4689-AF1 |
Sensor |
1/3" Omnivision OV4689 |
|
Resolution |
4MP 2688(H) X 1520(V) |
Dimension |
38mmx38mm (customizable) |
|
Lens FOV |
75°(optional) |
Focus Type |
Auto Focus |
|
Interface |
USB2.0 |
Feature |
2K |
Products Description
The SNS-4MP-OV4689-AF1 is a 4MP USB camera module with a 1/3" Omnivision OV4689 sensor. It delivers 2K video at 2688x1520 resolution with stable image quality.
This module supports auto-focus, 75° FOV, and USB2.0 interface. It includes advanced features like ABLC, programmable frame rates, mirroring, flipping, cropping, windowing, and defect pixel elimination.
Multiple output resolutions are supported including 4M, 3M, EIS1080p, 1080p, and EIS720p. The module is suitable for IP cameras, action cameras, automotive use, and other high-resolution video applications.
Highlights
High-Performance Sensor – Omnivision OV4689 ensures stable and excellent image quality
Auto-Focus Lens – Delivers sharp images with 75° FOV for versatile applications
Advanced Imaging Features – Includes ABLC, frame rate control, mirroring, flipping, cropping, and defect pixel elimination
Flexible Resolution Options – Supports 4M, 3M, EIS1080p, 1080p, EIS720p, and horizontal/vertical subsampling
Specification
|
Model No |
SNS-4MP-OV4689-AF1 |
|
Sensor |
1/3" Omnivision OV4689 |
|
Pixel |
4 Mega Pixel |
|
Most effective pixels |
2688(H) x 1520(V) |
|
Pixel Size |
2.0µm x 2.0µm |
|
Compression format |
MJPG / YUY2 |
|
Resolution |
see above |
|
Frame rate |
see above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
38.3dB |
|
Dynamic range |
64.6dB |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
|
Lens Size: 1/3 inch |
|
|
FOV: 75° (Optional) |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Support |
|
microphone |
Built-in |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Not Supported |
|
Dimension |
38MM x 38MM |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
|
WinXP/Vista/Win7/Win8/Win10 |

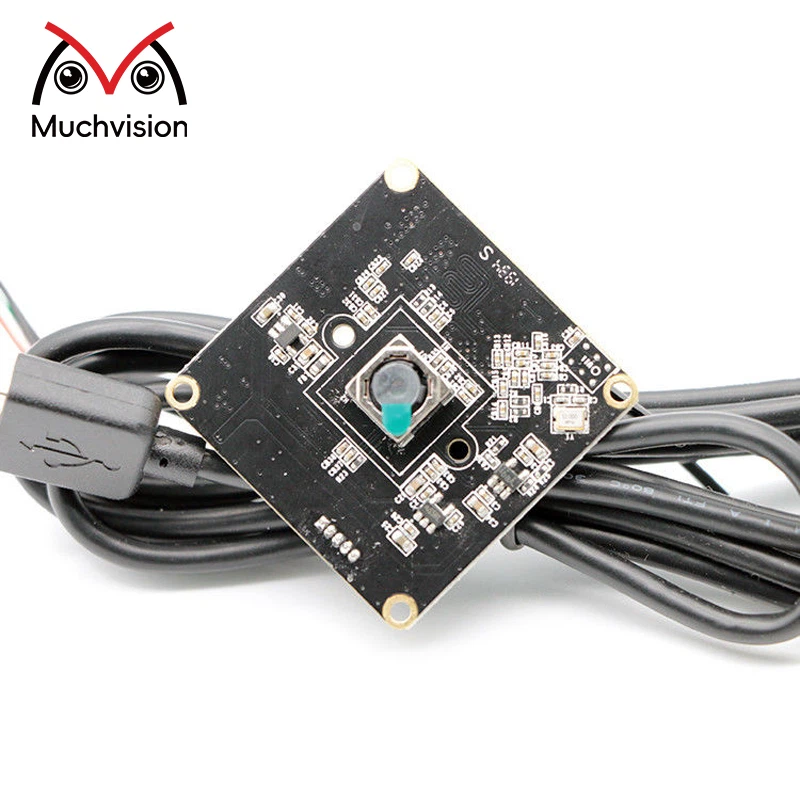

Product Picture
