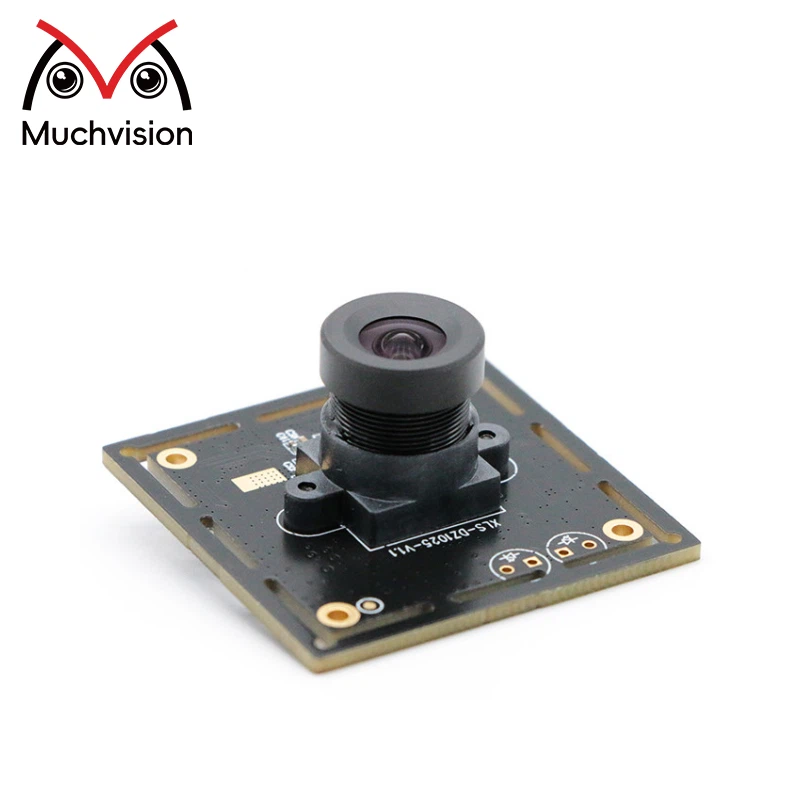

2MP USB Camera Module With GC2053 CMOS
|
Module Number |
SNS-DZ1025-V1.1 |
Sensor |
1/2.9'GC2053 CMOS |
|
Resolution |
1920(H) X 1080(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
Wide Dynamic Range |
Products Description
The GC2053 2MP USB camera module is designed for high-quality imaging in challenging lighting conditions. Equipped with the GC2053 CMOS sensor, it delivers 1080P HD resolution with stable video output at 30 frames per second.
Its wide dynamic range (WDR) function balances bright and dark areas within the same frame, enhancing image detail and clarity. Automatic exposure and white balance ensure the camera adapts to varying lighting conditions, capturing high-quality images in all scenarios.
The module connects via a USB 2.0 interface for plug-and-play integration. Its fixed-focus lens and compact, customizable design simplify installation, making it suitable for surveillance, security monitoring, embedded systems, and other digital devices requiring reliable imaging.
Highlights
Wide Dynamic Range (WDR): Balances brightness and dark areas for clear, detailed images
1080P HD resolution: Provides stable full HD video output at 30FPS
USB2.0 interface: Easy connection, plug-and-play with various operating systems
Automatic light adaptation: Supports auto exposure and white balance for consistent imaging
Fixed-focus lens: Simplifies installation while maintaining stable image quality
Compact and customizable: Ideal for embedding in small or specialized devices

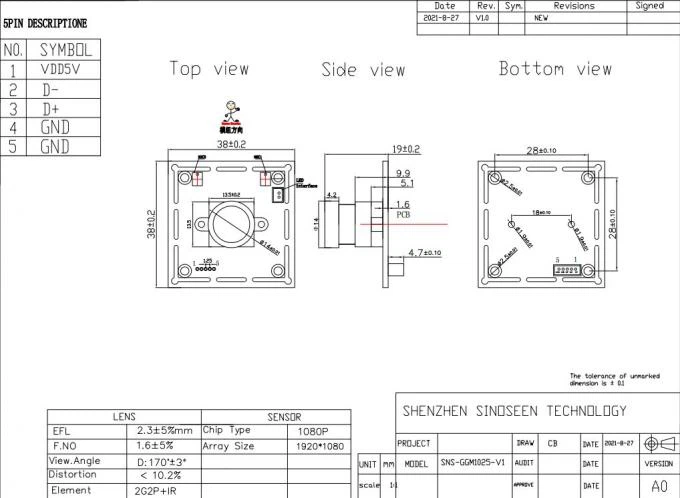

Product Structure
Specification
|
Model No |
SNS-DZ1025-V1.1 |
|
Sensor |
1/2.9'GC2053 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
2.8um x2.8um |
|
Image Area |
5808µm x 3288µm |
|
Compression format |
YUV2 / MJPG |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
3700 mV/lux-sec |
|
Interface type |
USB2.0 |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Power supply requirement |
AVDD28: 2.7~3.3V(Typ.2.8V) |
|
DVDD18: 1.15~1.3V(Typ.1.2V) |
|
|
IOVDD: 1.7~3.0V(Typ.1.8V) |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Storage temperature |
0~60℃ |
|
Operating temperature |
-20~80℃ |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
