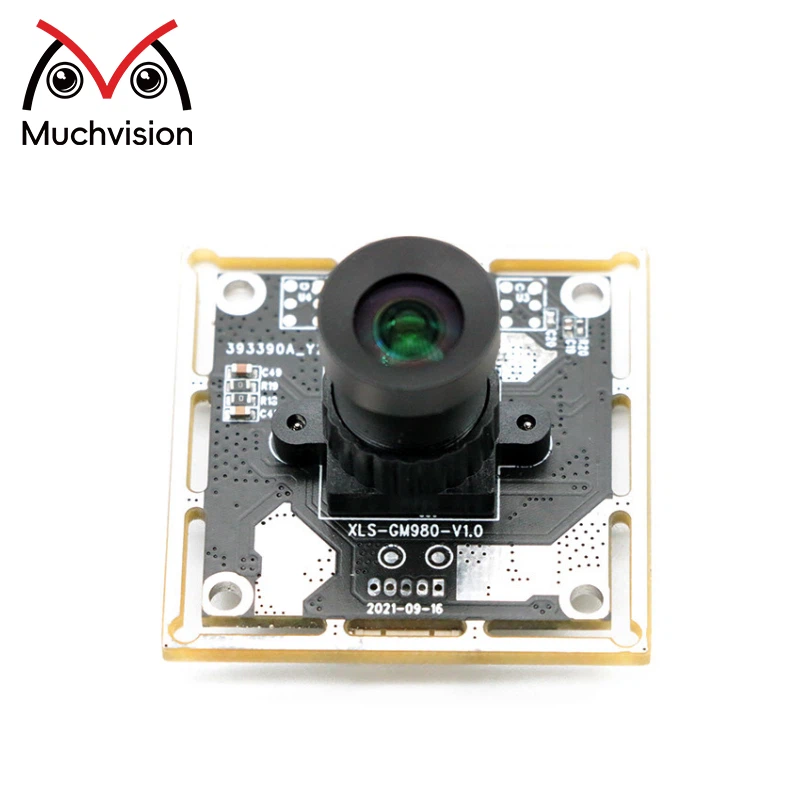

4K 8MP USB Camera Module Sony IMX317 COMS
|
Module Number |
SNS-2MP-IMX317-FFS |
Sensor |
1/2.5'' SONY IMX317 CMOS |
|
Resolution |
3864um (H) X 2196um (V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
4K |
Products Description
The 4K 8MP SONY IMX317 USB Camera Module outputs 3840x2160 ultra-high-definition images at 30FPS full resolution. Its fixed-focus design ensures stable and reliable images without manual adjustments.
The module performs well in low-light environments, maintaining consistent image quality under various lighting conditions. It connects via Micro USB for easy plug-and-play compatibility across Windows, Linux, Mac, and Android systems.
Customizable options include module size and lens FOV, allowing integration into a wide range of applications, such as HD photography, video surveillance, QR code recognition, dashcams, high-speed cameras, and all-in-one conference machines.
Highlights
4K 8MP UHD: Provides 3840x2160 resolution
Full resolution 30FPS: Smooth and clear video output
Fixed focal length design: Stable imaging without adjustment
Excellent low-light performance: Maintains image quality in dim conditions
Micro USB interface: Easy connection, wide compatibility
Specification
|
Sensor |
1/2.5'' SONY IMX317 CMOS |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3840(H) x 2160(V) |
|
Pixel Size |
1.62µm x 1.62µm |
|
Image area |
3864um (H) x 2196um (V) |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
Chroma |
Color, RGB |
|
Clock Frequency |
6 to 72 MHz |
|
Microphones |
Built-in |
|
Interface type |
Micro USB |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
|
Lens |
Focal length: 3.6mm |
|
Lens construction: 5E+IR |
|
|
D FOV: 100 degree |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Operating Voltage |
DC 5V |
|
Operating Current |
260mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
