OV9281 1MP USB Module Fixed focus
|
Module Number |
SNS-USB9281-V1.0 |
Sensor |
1/4" Omnivision OV9281 CMOS |
|
Resolution |
1MP 1280(H) X 800(V) |
Dimension |
38mmx38mm(customizable) |
|
Lens FOV |
90°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB |
Feature |
Global Shutter |
Products Description
The OV9281 1MP USB Camera Module (SNS-USB9281-V1.0) integrates a global shutter Omnivision OV9281 CMOS sensor designed for precise monochrome image capture. With support for 1280x800 resolution at up to 120fps, it ensures accurate imaging of fast-moving objects without motion distortion.
This compact 38x38mm USB module features fixed focus optics and is optimized for AR/VR systems, drones, robotics, machine vision, and industrial automation. Its global shutter design makes it especially suitable for object tracking, barcode scanning, and AI-powered computer vision applications.
Engineered for reliability, it provides consistent performance under demanding industrial conditions while maintaining low power consumption. Customizable lens FOV options are available to match different application requirements.
Highlights
Global shutter sensor eliminates rolling distortion in high-speed imaging
1MP OV9281 CMOS sensor delivers sharp monochrome output
120fps full-resolution streaming for fast-moving targets
Compact 38x38mm module with fixed focus design
Optimized for AR/VR, robotics, drones, and computer vision

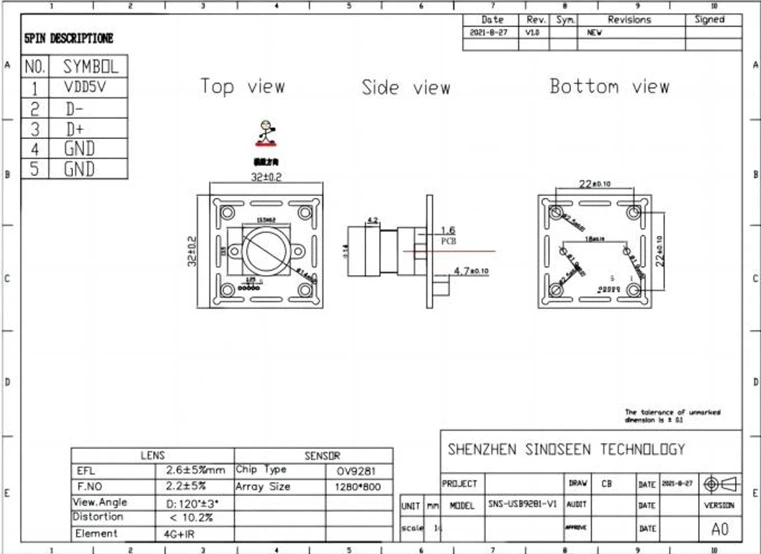

Product structure
Specification
|
Pixel Size |
3.0μm x 3.0μm |
|
Effective Pixels |
HD 1280(H)X800(V) |
|
Image Sensor |
1/4" |
|
AEC/AWB/AGC |
Supported |
|
Lens View |
FOV120°(Optional),F/N(Optional) |
|
Interface |
USB BUS POWER 5P-1.25mm |
|
Operating Voltage |
DC5V |
|
Working Current |
120mA~220mA |
|
Dimension |
38*38mm |
|
Cable Length |
0.6m |

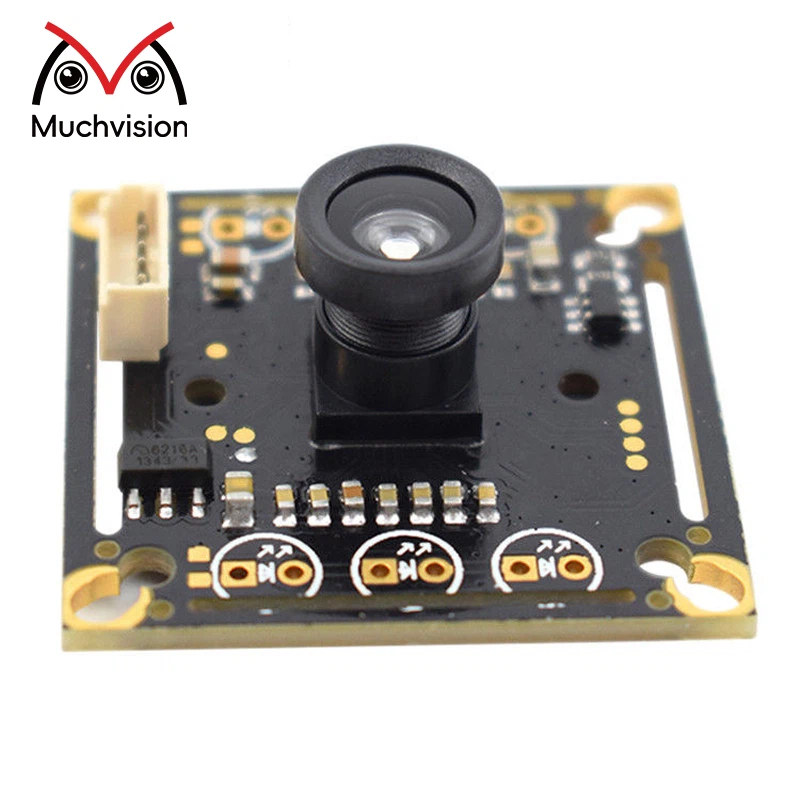

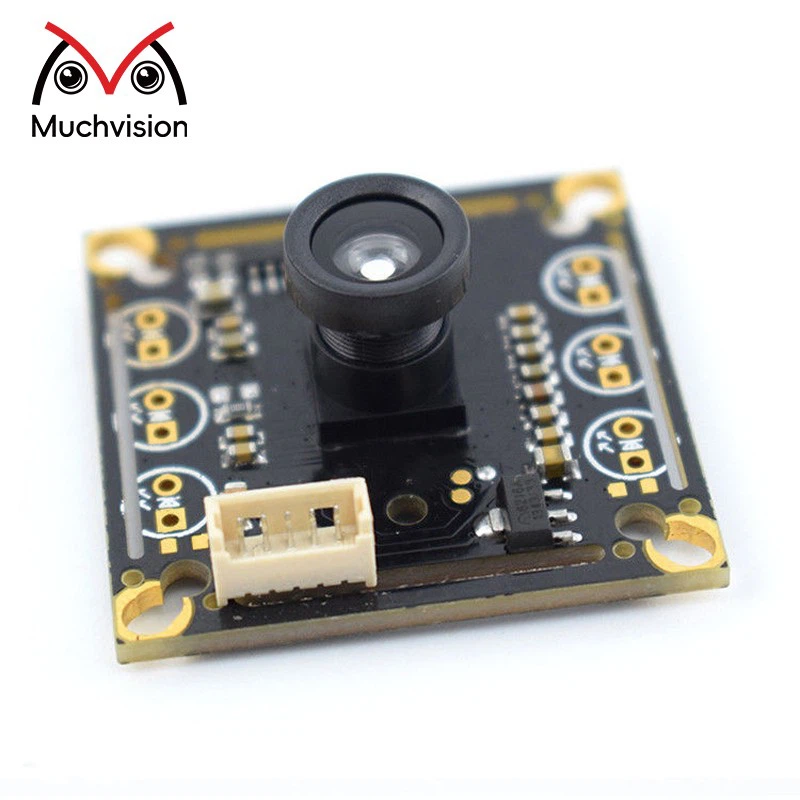

Product Picture
