USB2.0 Mini WiFi IP Camera Module OV2735
|
Module Number |
SNS-wifi-OV2735-a6 |
Sensor |
1/2.7" OV2735 |
|
Resolution |
2mp1920(H)X1080(V) |
Dimension |
Customizable |
|
Lens FOV |
140°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
Wifi |
Products Description
The USB2.0 Mini WiFi IP Camera Module OV2735 (SNS-wifi-OV2735-a6) features a 2MP Omnivision OV2735 sensor that delivers 1080p full HD video at 30fps. It provides sharp images and smooth video capture, making it suitable for both real-time monitoring and high-quality recording.
Equipped with a 140° wide-angle lens option, this camera module ensures broader coverage for security and automotive applications. Its USB2.0 interface with WiFi connectivity allows flexible integration into various smart devices.
This module is widely used in automotive systems, medical imaging, AR/VR devices, drones, robotics, laptops, and security cameras. It also supports multiple adjustable parameters including brightness, contrast, saturation, gamma, and exposure, ensuring optimal performance in diverse environments.
Highlights
2MP OV2735 sensor with full HD 1080p video support
30fps real-time video capture for smooth performance
Wide 140° lens option for extended field of view
USB2.0 with WiFi connectivity for flexible integration
Multi-industry applications including automotive, medical, AR/VR, drones, and robotics
Specification
|
Module No |
SNS-wifi-OV2735-a6 |
|
Pixel Size |
3.0μm x 3.0μm |
|
Effective Pixels |
1920(H)X1080(V) |
|
Video output |
YUV2 MJPG |
|
Active Array Size Video Rate |
1080p@30FPS |
|
Image Sensor |
1/2.7" OV2735 |
|
SNR max |
TBDdB |
|
Dynamic range |
TBDdB |
|
OTG |
USB2.0 OTG |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
|
Lens view |
FOV140°(optional),F/N(optional) |
|
Interface |
USB BUS POWER 5P-1.25mm |
|
Operating Voltage |
DC5V |
|
Operating Current |
MAX120MMA |
|
Operating temperature |
0～60℃ |
|
Storage temperature |
-20～70℃ |
|
Cable length |
Defualt |
|
OS |
WinXP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |

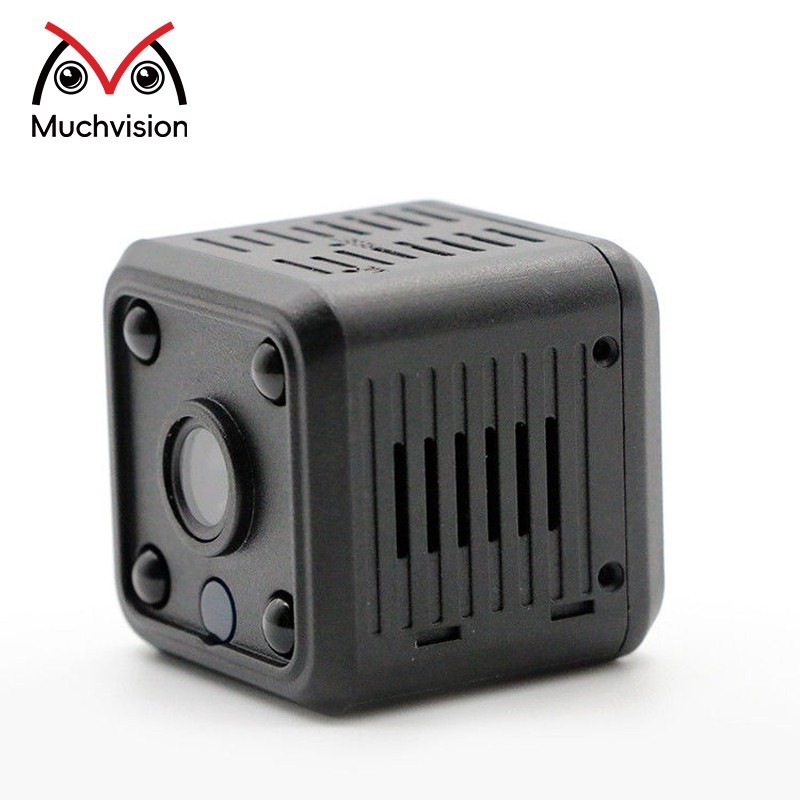

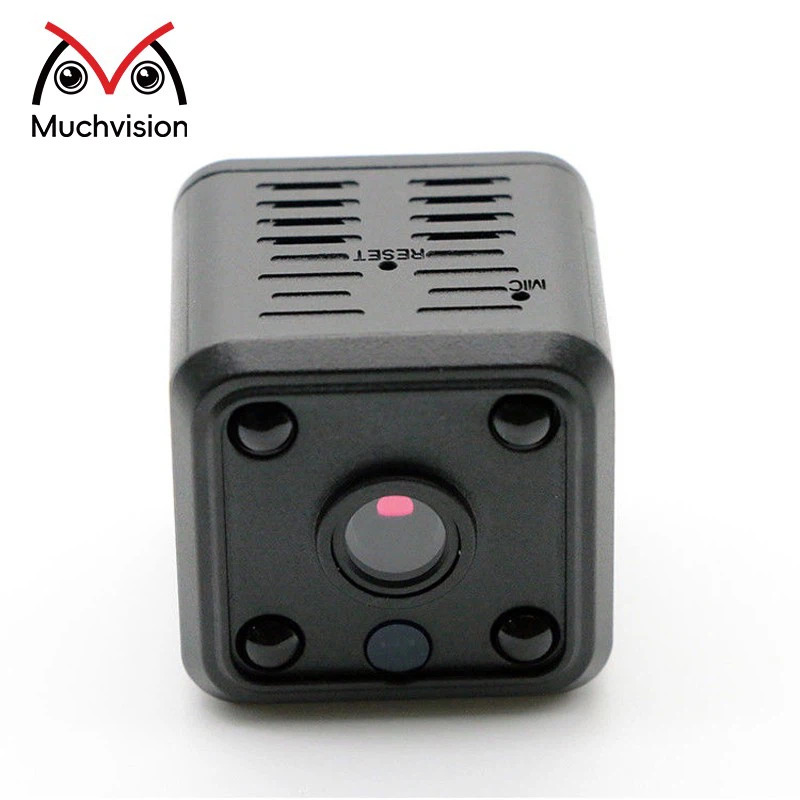

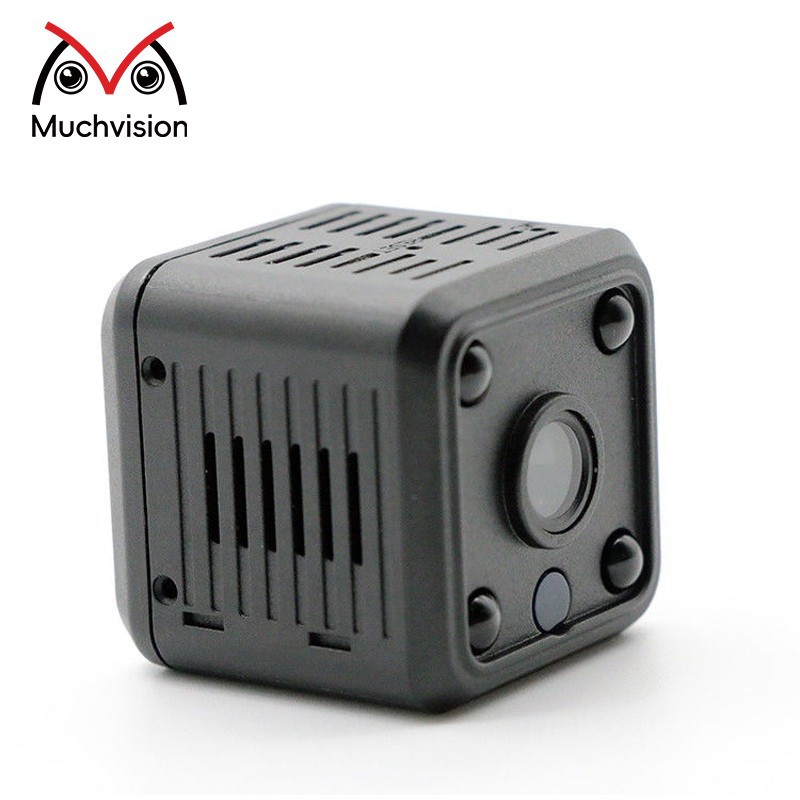

Product Picture
