OV2710 Sensor 1080P Camera Module USB
|
Module Number |
SNS-GM882M-V1 |
Sensor |
Omnivision OV2710 |
|
Resolution |
2MP (1920*1080) |
Dimension |
38x38mm (customizable) |
|
Lens FOV |
70°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
Plug&Play |
Products Description
The SNS-GM882M-V1 is a 2MP USB camera module featuring the Omnivision OV2710 sensor, delivering 1080P full HD video for clear and detailed images. Its fixed-focus 70° lens ensures sharp visuals without manual adjustment, simplifying installation and operation.
The camera module is plug-and-play, supporting Windows, Linux, macOS, and Android systems, making integration fast and easy. Its standard 38x38mm size is compatible with 32x32mm systems, allowing flexible deployment in different devices.
This module is suitable for multiple scenarios, including video conferencing, live streaming, security monitoring, and access control systems. Its low-power CMOS sensor balances performance and energy efficiency for continuous operation.
Highlights
High-Definition Image Quality – 1080P full HD resolution (1920×1080) for clear and detailed visuals
Focus-Free Design – Fixed-focus lens, ready to use without manual adjustment
Stable and Reliable – Maintains precise focus for long-term operation
Multi-Scenario Application – Ideal for video conferencing, live streaming, and security monitoring
Specification
|
Model No |
SNS-GM882M-V1 |
|
Sensor |
1/2.7'' Omnivision OV2710 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image Area |
5856µm x 3276µm |
|
Compression format |
YUV2 / MJPG |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
39dB |
|
Dynamic range |
69dB |
|
Sensitivity |
3700 mV/lux-sec |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
IR Cut filter: 850nm |
|
|
FOV: 70° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38MM x 38MM |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 55°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |

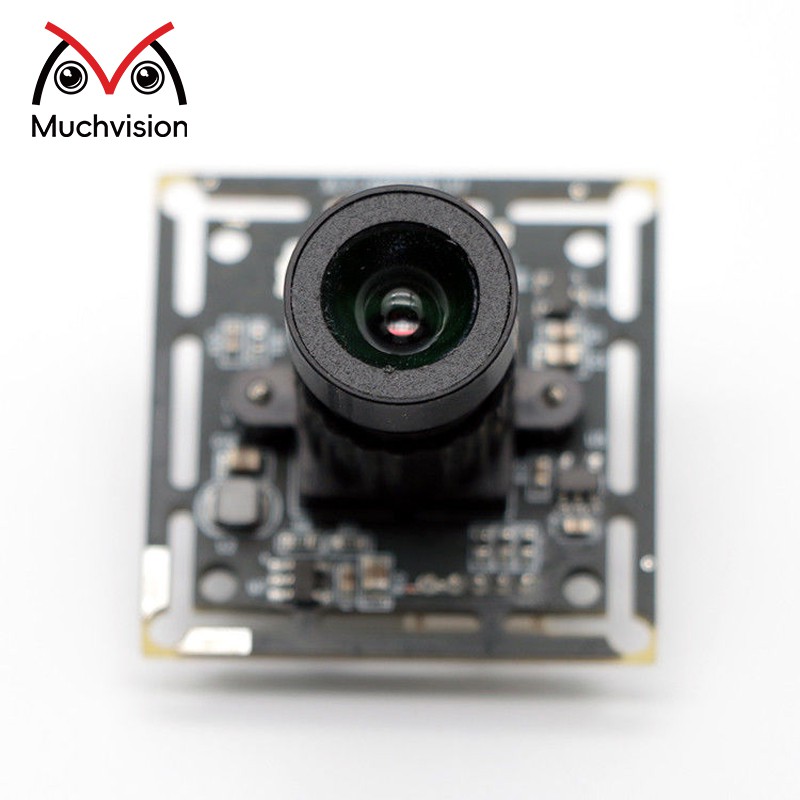

Product Picture
