1080P OV2710 Camera Module USB UVC
|
Module Number |
SNS-GM882M-V1 |
Sensor |
Omnivision OV2710 |
|
Resolution |
2MP (1920*1080) |
Dimension |
38x38mm (customizable) |
|
Lens FOV |
70°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
Plug&Play |
Products Description
The SNS-GM882M-V1 is a 2MP USB camera module featuring the Omnivision OV2710 sensor, delivering reliable 1080P@30FPS video. Its plug-and-play USB interface allows instant connection without additional drivers.
The camera has a fixed-focus 70° lens, suitable for access control, video doorbells, and face recognition. Its standard 38x38mm size is compatible with 32x32mm systems, offering flexible integration.
This module supports full customization, including lens angle, module size, and firmware optimization, ensuring optimal performance for various applications. Its budget-friendly design makes it ideal for cost-effective high-quality imaging.
Highlights
2MP OV2710 Sensor – High-definition 1080P video at 30FPS with reliable performance
Plug-and-Play USB – Instant video output without driver installation
Standard 38x38mm Size – Compatible with 32x32mm for flexible system integration
70° Fixed-Focus Lens – Balanced field of view for diverse applications
Specification
|
Model No |
SNS-GM882M-V1 |
|
Sensor |
1/2.7'' Omnivision OV2710 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image Area |
5856µm x 3276µm |
|
Compression format |
YUV2 / MJPG |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
39dB |
|
Dynamic range |
69dB |
|
Sensitivity |
3700 mV/lux-sec |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
IR Cut filter: 850nm |
|
|
FOV: 70° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38MM x 38MM |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 55°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |

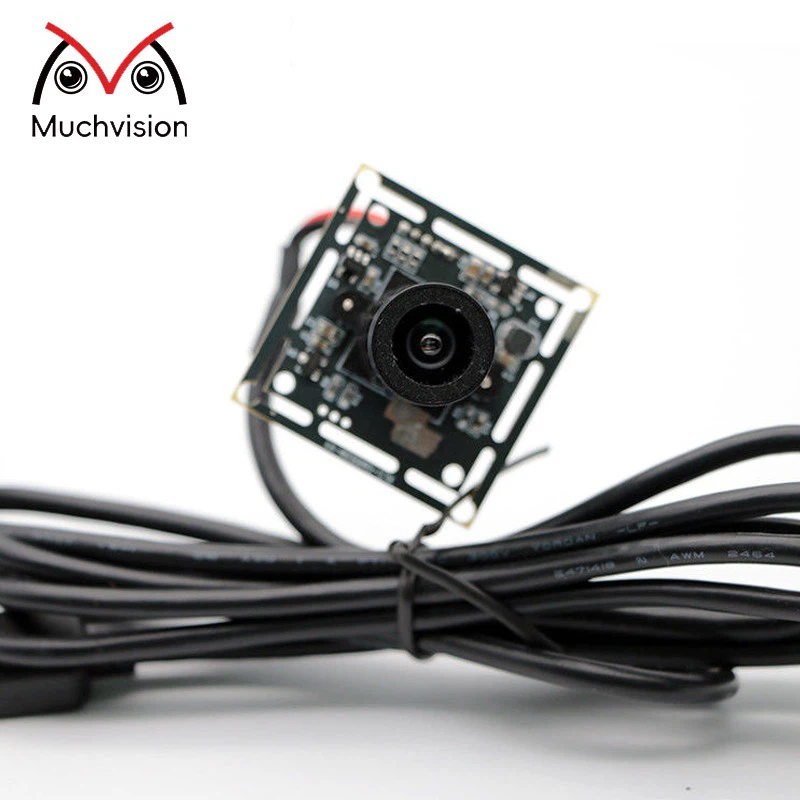

Product Picture
