Module Number |
SNS-PC292-V1.0 |
Sensor |
1/3.2" SONY IMX179 |
|
Resolution |
8MP 3264(H) X 2448(V) |
Dimension |
90mmx15mm (customizable) |
|
Lens FOV |
95°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
UHD |
Products Description
The SNS-PC292-V1.0 is an 8MP USB camera module with a SONY IMX179 sensor. It supports UHD resolution of 3264x2448 at 15fps and Full HD 1920x1080 at 30fps. The module uses a fixed focus lens and outputs video in MJPG or YUY2 format.
This USB2.0 camera module is compatible with Windows, Linux, MacOS, and Android systems. Its compact PCB size of 90x15mm is customizable for different applications. Built-in microphone support allows integration into video conferencing and surveillance systems.
The module is suitable for high-definition imaging, security monitoring, industrial use, and other professional applications. It offers stable performance and plug-and-play USB connectivity.
Highlights
8MP UHD Imaging – SONY IMX179 sensor delivers 3264x2448 resolution at 15fps for clear and detailed visuals
Fixed Focus Lens – Simplifies operation without manual focus adjustment
Multiple Video Formats – Supports MJPG and YUY2 formats with USB2.0 interface
Customizable Design – PCB size and lens angle can be tailored to application needs
Specification
|
Model No |
SNS-PC292-V1.0 |
|
Sensor |
1/3.2'' IMX179 |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3264(H) x 2448(V) |
|
Pixel Size |
1.4µm x 1.4µm |
|
Compression format |
MJPG / YUY2 |
|
Resolution |
see above |
|
Frame rate |
see above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
36dB |
|
Dynamic range |
60dB |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
|
Lens Size: 1/3 inch |
|
|
FOV: 95° (Optional) |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Support |
|
microphone |
Built-in |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Not Supported |
|
Dimension |
90MM x 15MM (customizable) |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
|
WinXP/Vista/Win7/Win8/Win10 |

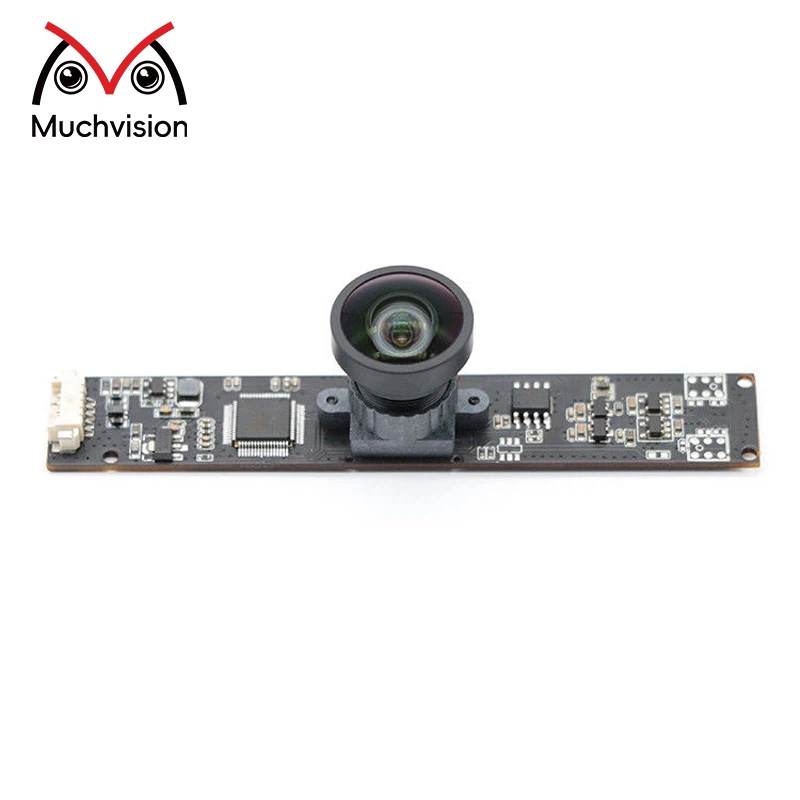

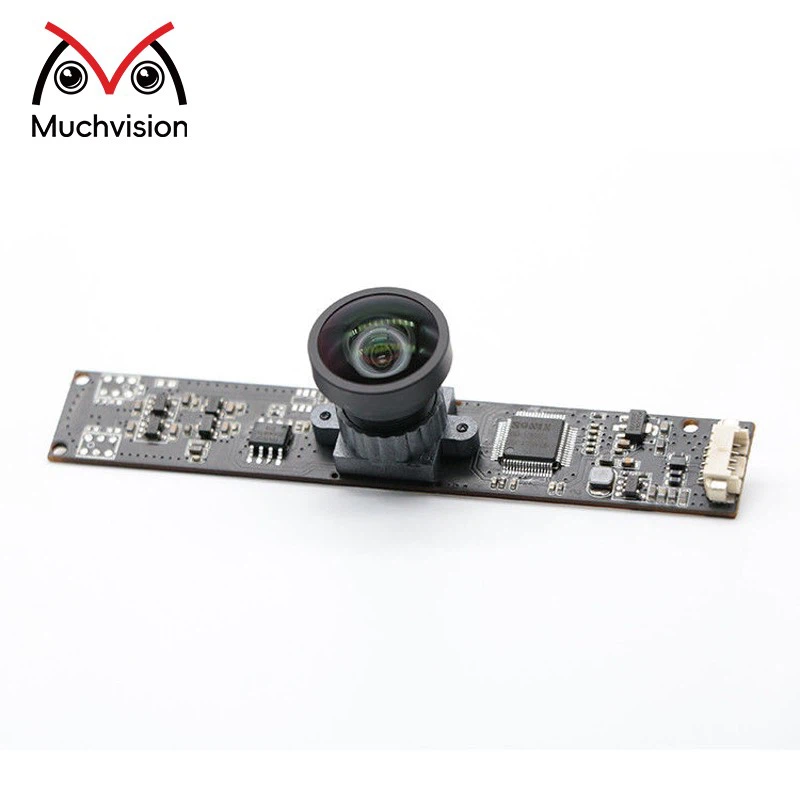

Product Picture
