USB Camera Module 2.9um*2.9um 1/2.8 inch
|
Module Number |
SNS-DZ1142-V1.0 |
Sensor |
1/2.8"CMOS |
|
Resolution |
1920*1080 |
Dimension |
Customizable |
|
Lens FOV |
D:96°±3° |
Focus Type |
Fixed Focus |
|
Interface |
USB |
Feature |
Full-Resolution Output |
Products Description
The SNS-DZ1142-V1.0 USB camera module integrates a 1/2.8 inch CMOS image sensor with a 2.9um pixel size, enabling Full HD 1080P resolution at 30fps. This fixed-focus camera delivers smooth, high-quality imaging with strong light sensitivity, making it suitable for both bright and low-light environments.
It supports still image capture in JPG/BMP and AVI video recording, with accurate color reproduction and fine detail retention. The USB2.0 high-speed interface (480Mbps) ensures plug-and-play operation without additional drivers. Compatible with Windows XP-10, Linux, Mac, Android, and WinCE, it provides wide cross-platform usability.
Highlights
Full HD 1080P Output – 2MP CMOS sensor delivers crisp 30fps imaging
1/2.8" Sensor with 2.9um Pixels – Excellent light sensitivity and clarity
Fixed Focus Design – Stable performance without adjustment
True Color Accuracy – High-fidelity color reproduction and fine details
USB2.0 Hi-Speed – Plug-and-play with 480Mbps data transfer

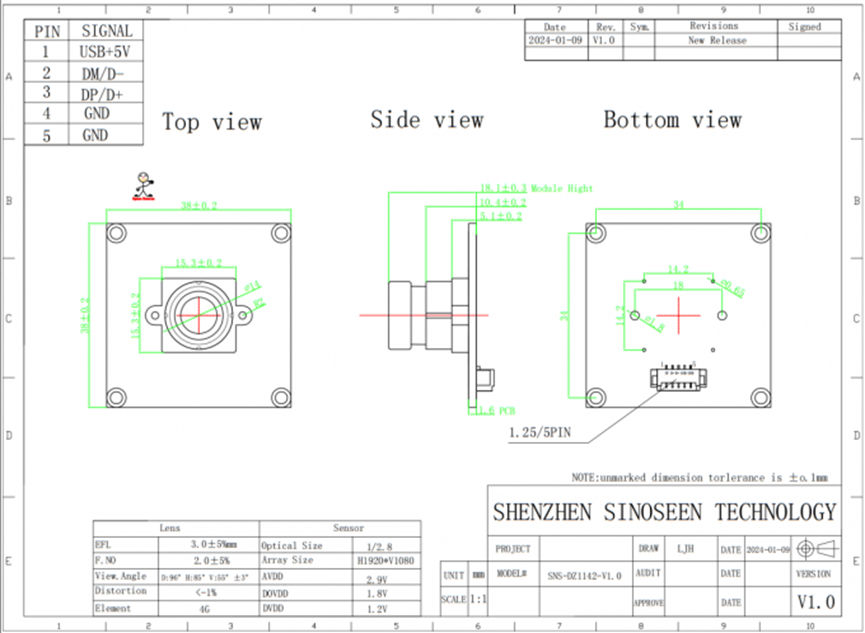

Product structure
Specification
|
Signal |
SNS-DZ1142-V1.0 |
REMARKS |
|
|
Image Sensor Size |
1/2.8"CMOS |
|
|
|
Effective Pixels |
1920*1080 |
|
|
|
Pixel size |
2.9um*2.9um |
|
|
|
Optical distortion |
<-1% |
|
|
|
Image sensor Data output |
Raw Data 10bits |
|
|
|
Video output |
MPJG/YUV |
|
|
|
Maximum Frame Rates |
1920*1080 30FPS 1280*960 30FPS 1280*720 30FPS 1024*768 30FPS 800*600 30FPS 640*480 30FPS 320*240 30FPS |
MJPG |
|
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
TBD |
|
|
|
Digital interface |
5pin 1.25mm USB2.0 |
线长1.5米 |
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-30℃to70℃ |
|
|
|
Power Consumption (power) |
NO LED |
/ |
|
|
IR-LED |
/ |
|
|
|
PCB printig ink |
black |
|
|
|
OS(supportive system) |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view (Default lens) |
M12*P0.5 |
LENS |
|
|
Lens Construction |
4G |
|
|
|
F/NO aperture |
2.0±5% |
|
|
|
EFL effective focal length |
3.0 mm±5% |
|
|
|
FOV angle |
D:96°±3° |
|
|
|
Focusing method |
hand movement |
|
|
|
Shooting distance |
60cm-∞ |
|
|

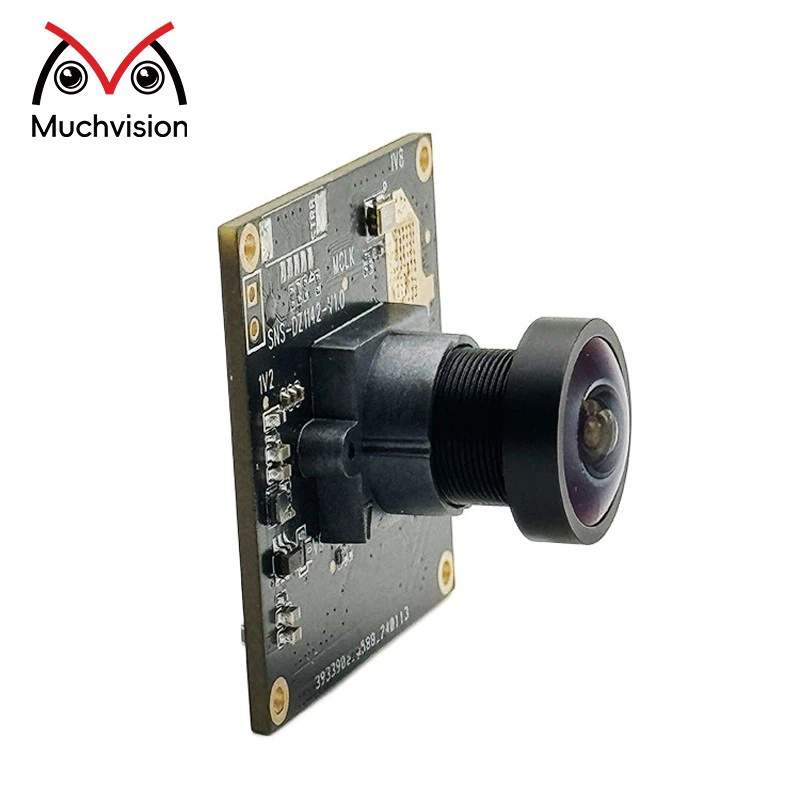

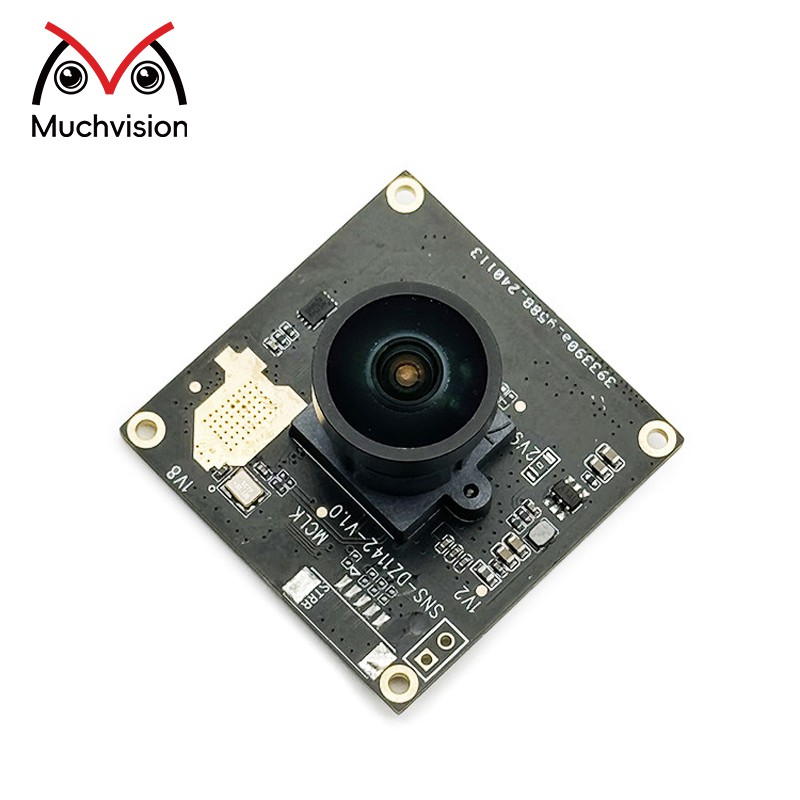

Product Picture
