4K USB Camera Module SONY IMX415 8MP
|
Module Number |
SNS-415-V1.0 |
Sensor |
1/2.8'' SONY IMX415 CMOS |
|
Resolution |
8MP 3840(H) X 2160(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
HDR |
Products Description

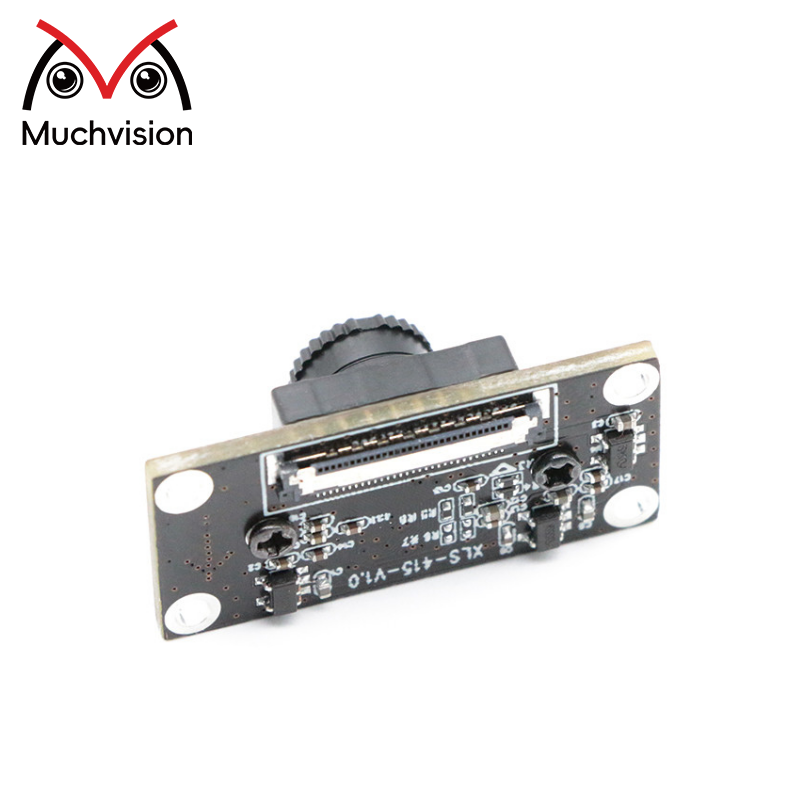

The 4K 8MP SONY IMX415 USB Camera Module outputs 3840x2160 ultra-high-definition images at 30FPS full resolution. Its HDR feature ensures accurate color reproduction and rich image details, suitable for demanding industrial and outdoor environments.
The module supports USB 2.0 plug-and-play and fixed focus design for stable imaging without adjustments. It provides customizable options, including module size, shape, and wide FOV ranging from 40° to 200°, enabling adaptation to diverse applications.
With a wide operating temperature range (-30°C to 85°C), this module is ideal for industrial cameras, security monitoring, FA cameras, video conferencing, IoT devices, and aerial drones.
Highlights
4K 8MP UHD: 3840x2160 resolution at 30FPS
HDR High Dynamic Range: Accurate color and detailed imaging
Highly customizable: Size, shape, and FOV from 40°-200°
Fixed focus USB 2.0: Stable and reliable universal interface
Product Structure
Specification
|
Model No |
SNS-415-V1.0 |
|
Sensor |
1/2.8'' SONY IMX415 CMOS |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3840(H) x 2160(V) |
|
Pixel Size |
1.45µm x 1.45µm |
|
Image area |
3864um (H) x 2196um (V) |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
Chroma |
Color, RGB |
|
Clock Frequency |
6 to 72 MHz |
|
Microphones |
Built-in |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
|
Lens |
Focal length: 3.6mm |
|
Lens construction: 5E+IR |
|
|
D FOV: 100 degree |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Operating Voltage |
DC 5V |
|
Operating Current |
260mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-40˚C to 85 ˚C |
|
Operating temperature |
-30˚C to 85 ˚C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
