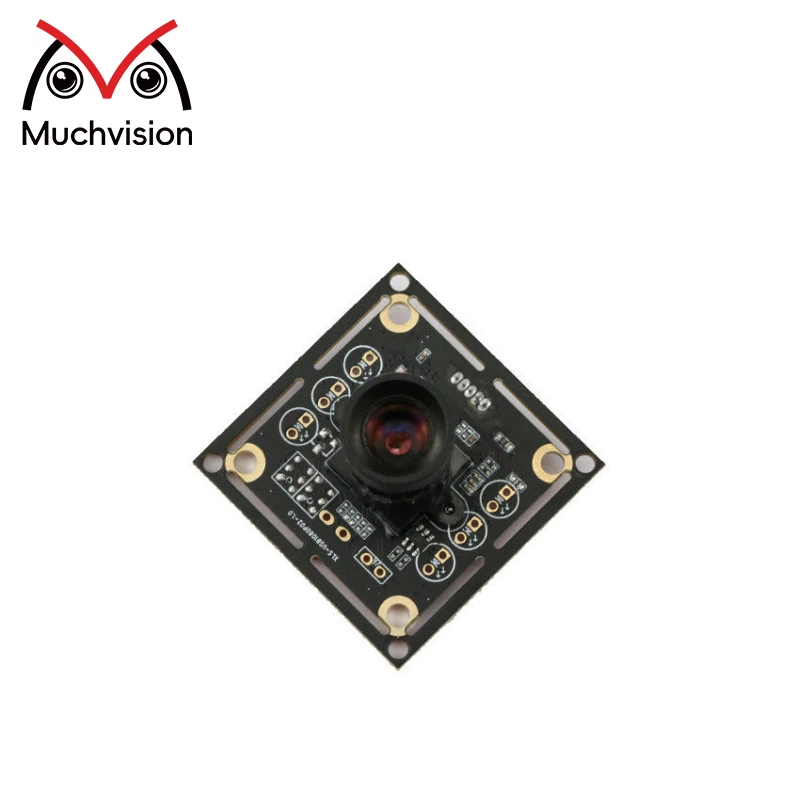

ODM 5MP OV5693 Sensor Smart Camera Module
|
Module Number |
SNS-5MP-OV5693-S1 |
Sensor |
1/4"Omnivision OV5693 |
|
Resolution |
5MP (2592*1944) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
High Frame Rate |
Products Description
The 5MP OV5693 USB Camera Module provides HD 2592x1944 resolution and supports 30FPS full-resolution video, ensuring smooth and clear image capture for dynamic scenes. Its fixed focus design guarantees stable imaging without adjustments.
The module features USB 2.0 plug-and-play, allowing easy integration with multiple devices. Customizable options include module size, shape, and branding, providing flexibility for product development.
Compact 38x38mm size (compatible with 32x32mm) makes it suitable for smart vision devices, IoT systems, and other applications requiring high-resolution, high-frame-rate imaging.
Highlights
5MP@30FPS full resolution: Smooth and clear HD video capture
High image quality and stability: OV5693 sensor ensures excellent performance
USB 2.0 interface: Plug-and-play with wide compatibility
Compact and customizable: Supports size adjustment and brand customization
Specification
|
Model No |
SNS-5MP-OV5693-S1 |
|
Sensor |
1/4'' Omnivision OV5693 |
|
Pixel |
5 Mega Pixel |
|
Most effective pixels |
2592(H) x 1944(V) |
|
Pixel Size |
1.4µm x 1.4µm |
|
Image area |
3673.6µm x 2738.4µm |
|
Compression format |
MJPG / YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed Focus |
|
S/N ratio |
37.1dB |
|
Dynamic range |
68dB |
|
Sensitivity |
1000mV/lux-sec |
|
Interface type |
USB2.0 |
|
Lens FOV |
80° |
|
Object distance |
10CM-infinity |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 250mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38mm*38mm (Compatible with 32mm*32mm) |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
