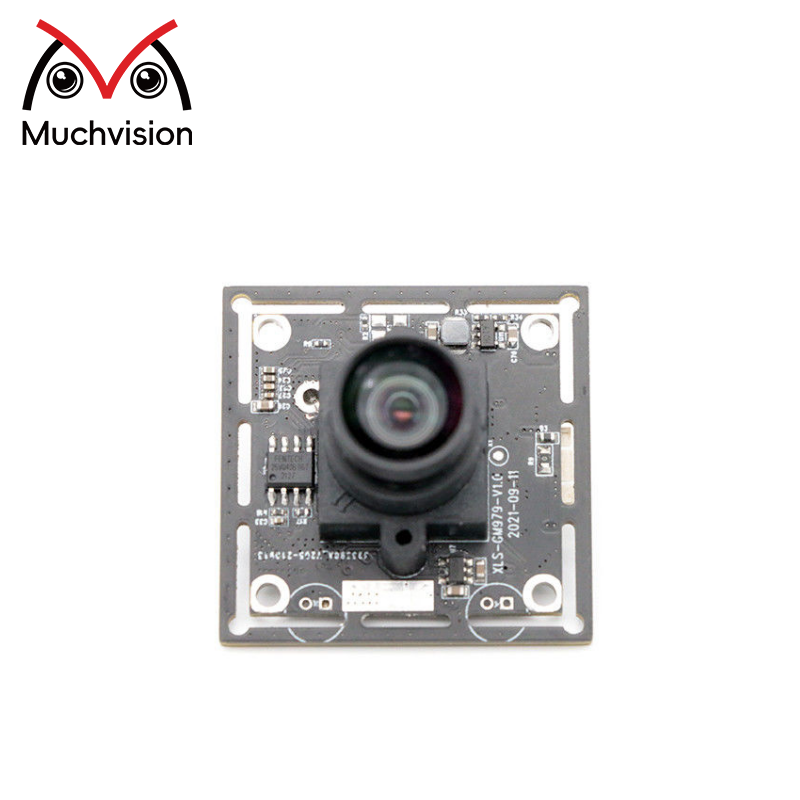

4K USB Camera Module SONY IMX415 8MP
|
Module Number |
SNS-8MP-IMX415-bc00 |
Sensor |
1/2.8'' SONY IMX415 CMOS |
|
Resolution |
8MP 3840(H) X 2160(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
HDR |
Products Description
The 4K 8MP USB camera module features a SONY IMX415 CMOS sensor (1/2.8-inch) capable of capturing 3840x2160 UHD images at 30fps. Its HDR functionality provides high dynamic range and accurate color reproduction, even in challenging lighting conditions.
The compact 38x38mm module (compatible with 32x32mm) supports customizable dimensions and multiple lens FOV options from 40° to 200°, making it versatile for embedded systems, drones, industrial vision, video surveillance, and HD video conferencing.
Highlights
4K 8MP UHD: Provides 3840x2160 resolution with rich details.
SONY IMX415 sensor: High color reproduction and high dynamic range.
Compact and customizable size: 38x38mm mini board, can be adjusted according to needs.
Multiple FOV options: Provides wide viewing angles from 40° to 200°.
Specification
|
Model No |
SNS-8MP-IMX415-bc00 |
|
Sensor |
1/2.8'' SONY IMX415 CMOS |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3840(H) x 2160(V) |
|
Pixel Size |
1.45µm x 1.45µm |
|
Image area |
3864um (H) x 2196um (V) |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
Chroma |
Color, RGB |
|
Clock Frequency |
6 to 72 MHz |
|
Microphones |
Built-in |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
|
Lens |
Focal length: 3.6mm |
|
Lens construction: 5E+IR |
|
|
D FOV: 100 degree |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Operating Voltage |
DC 5V |
|
Operating Current |
260mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
