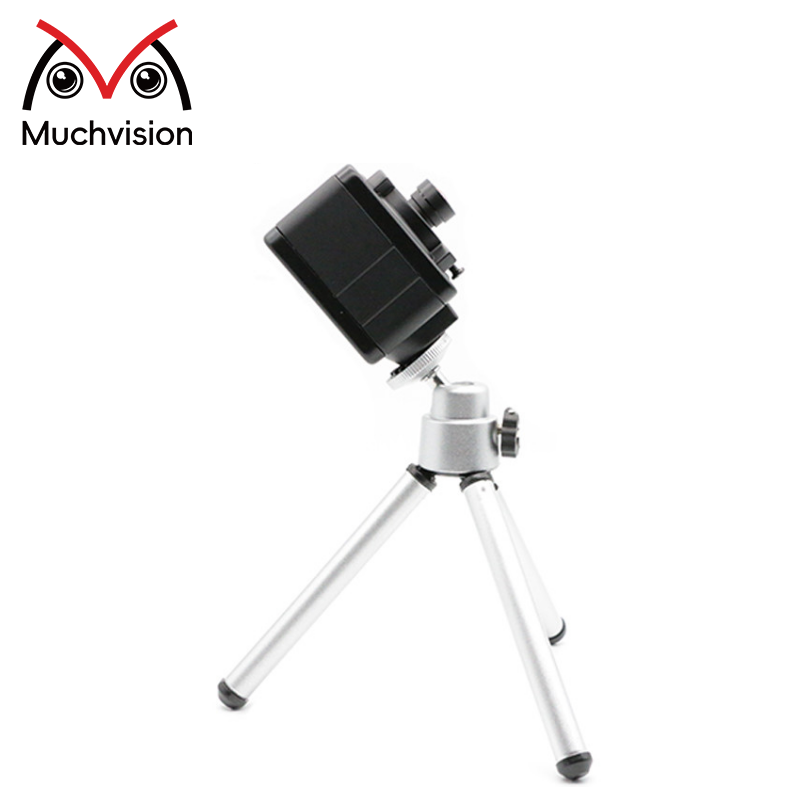

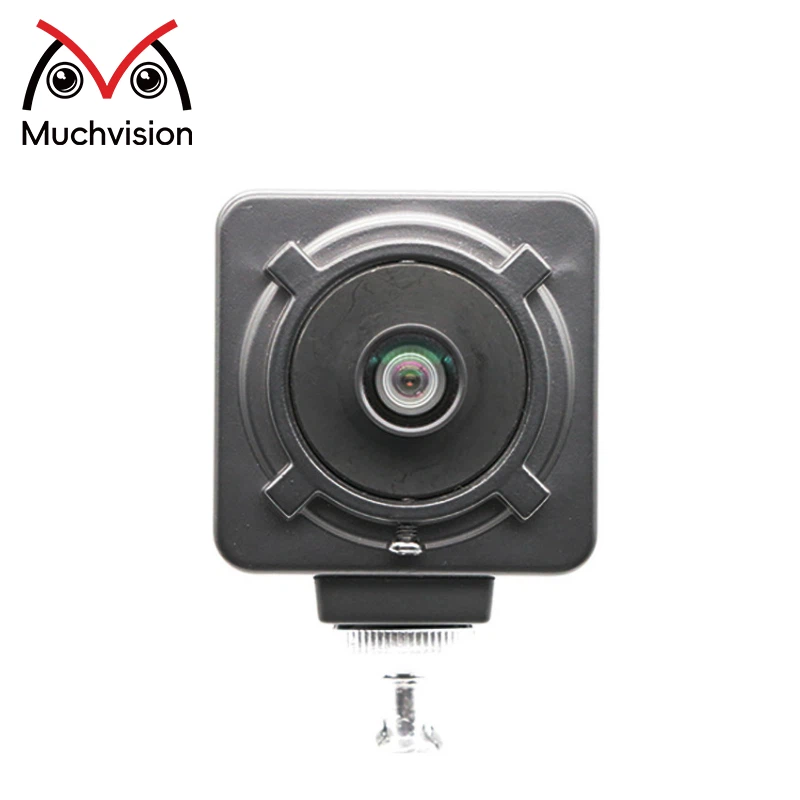

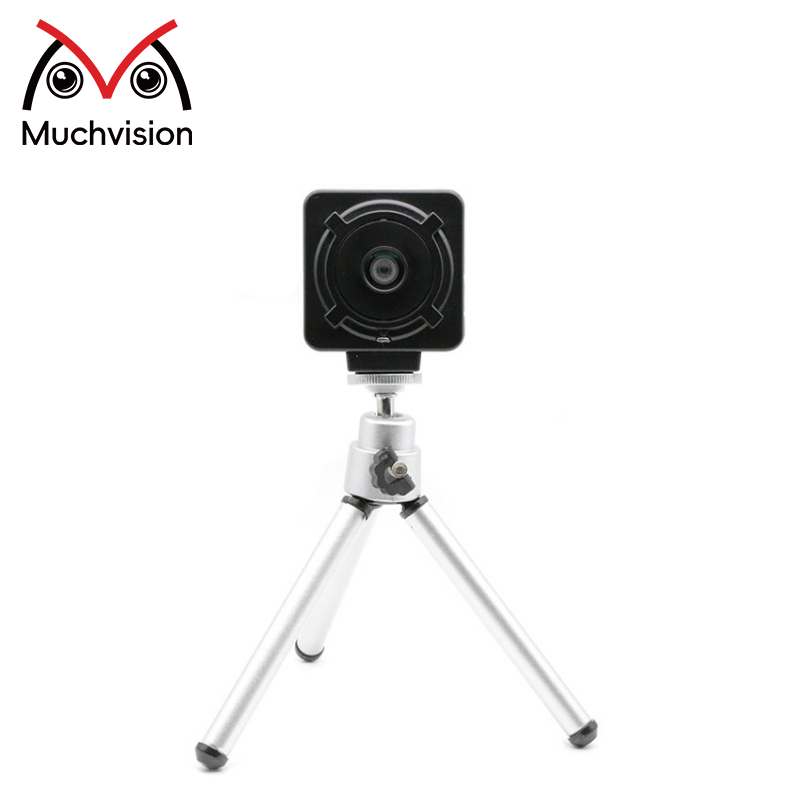

8MP IMX179 USB HD IR Camera Module
|
Module Number |
SNS-WK028M-V1.0 |
Sensor |
1/3.2'' IMX179 |
|
Resolution |
8mp 3264(H) X 2448(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
HD,Raspberry Pi |
Products Description
This 8MP USB camera module features a SONY IMX179 CMOS sensor, providing HD images at 3264x2448 resolution and smooth video at 30 frames per second. Its fixed-focus lens design simplifies operation, while an optional 180° distortion-free wide-angle lens allows full coverage of meeting rooms or display areas.
The sensor offers excellent low-light performance, ensuring bright and clear images even in dim environments. The module includes a built-in microphone and supports plug-and-play through USB2.0, making it convenient for use without additional drivers or power supply.
Applications include video conferencing, educational lectures, video booths, product demonstrations, and Raspberry Pi projects.
Highlights
8MP HD resolution: Provides 3264x2448 images with rich details.
SONY IMX179 sensor: excellent low-light performance, high sensitivity.
180° optional wide angle: distortion-free ultra-wide field of view, suitable for large scene coverage.
30FPS smooth video: smooth experience of real-time preview and shooting.
Specification
|
Sensor |
1/3.2'IMX179 |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3264(H) x 2448(V) |
|
Pixel Size |
1.4µm x 1.4µm |
|
Compression format |
MJPG / YUY2 |
|
Resolution |
see above |
|
Frame rate |
see above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TdB |
|
Dynamic range |
TdB |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
Lens Size: 1/3 inch |
|
|
FOV: 180° (Optional) |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Support |
|
microphone |
Built-in |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Not Supported |
|
Dimension |
50*50*57mm (customizable) |
|
Storage temperature |
-20～80℃ |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
