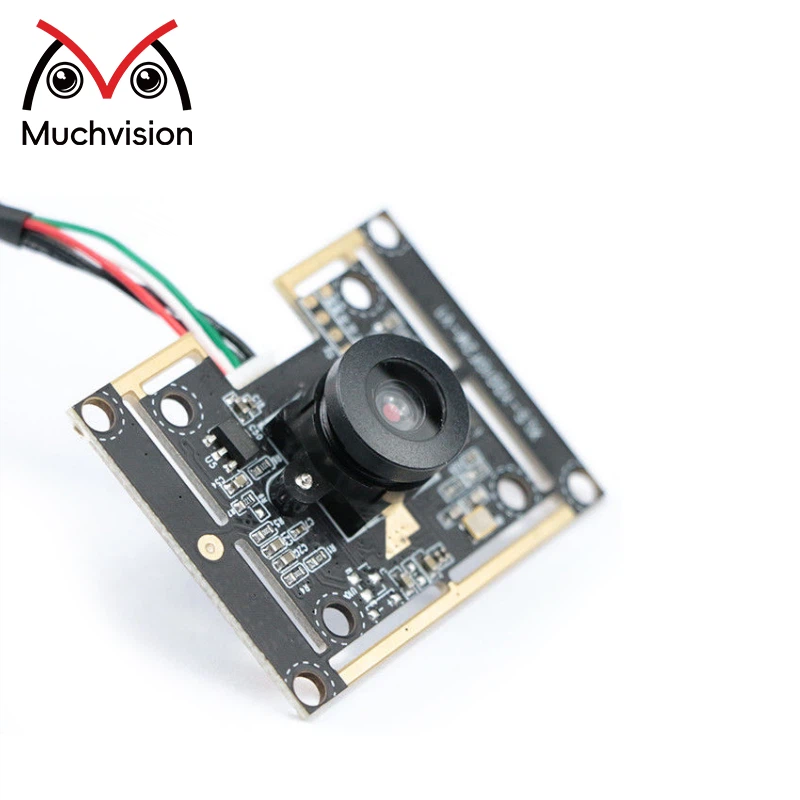

8mp USB Camera Module 4K Samsung S5K3H7
|
Module Number |
SNS-8MP-3H7-V1.0 |
Sensor |
1/3.2" Samsung S5K3H7 |
|
Resolution |
8MP (3264*2448) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
4K |
Products Description
The 8MP USB camera module integrates the Samsung S5K3H7 sensor and outputs 4K video at 30 frames per second, providing smooth and detailed ultra-high-definition imaging. Compared to most 8MP USB2.0 modules limited to 15FPS, this module offers a clear advantage in speed and performance.
It adopts a fixed focus design to maintain stable clarity without adjustment, and includes a built-in microphone for audio capture. With USB2.0 interface and UVC compliance, the module supports driver-free plug-and-play on multiple operating systems.
The compact size can be customized to fit product requirements, making the module suitable for high-resolution, real-time applications such as video conferencing, HD monitoring, and integration into smart devices that require reliable imaging performance.
Highlights
4K 30FPS Video Output: Smooth and detailed 8MP imaging.
Samsung S5K3H7 Sensor: Stable performance and clear image quality.
Fixed Focus Design: Always sharp, no manual adjustment needed.
UVC Plug-and-Play: Driver-free, with wide OS compatibility.
Specification
|
Model No |
SNS-8MP-3H7-V1.0 |
|
Sensor |
1/2.5'' Samsung 3H7 CMOS |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3264(H) x 2448(V) |
|
Pixel Size |
1.4µm x 1.4µm |
|
Image area |
3864um (H) x 2196um (V) |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
Chroma |
Color, RGB |
|
Clock Frequency |
6 to 72 MHz |
|
Microphones |
Built-in |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
|
Lens |
Focal length: 3.6mm |
|
Lens construction: 5E+IR |
|
|
H FOV: 90 degree |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Operating Voltage |
DC 5V |
|
Operating Current |
260mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
