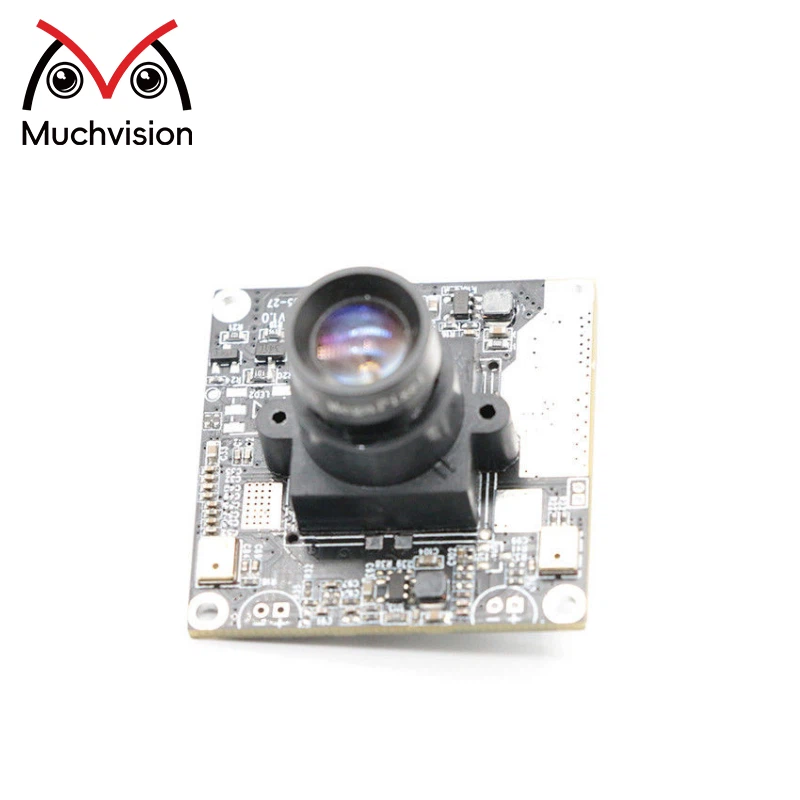

5MP HD Fixed Focus IMX335 USB Camera Module
|
Module Number |
SNS-5MP-IMX335 |
Sensor |
1/2.8" SONY IMX335 |
|
Resolution |
2.0um X 2.0um |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
HD |
Products Description
The IMX335 USB camera module integrates the Sony IMX335 CMOS sensor and Starvis™ technology to deliver 5MP (2592x1944) resolution with excellent low-light performance. It captures clear images with rich detail, even in night or dim environments.
With a fixed focus design, the module offers stable imaging and easy integration. The USB2.0 interface supports plug-and-play connection across multiple operating systems, making it adaptable for a wide range of applications. Its compact 38x38mm structure can also be customized to meet product design requirements.
Thanks to its high resolution and starlight-level night vision, the IMX335 camera module is widely used in industrial monitoring, intelligent recognition systems, and security scenarios requiring consistent image quality under all lighting conditions.
Highlights
5MP HD Resolution: 2592x1944 output with rich detail.
Starvis™ Low-Light Technology: Clear starlight-level night vision.
Fixed Focus Design: Reliable and easy to integrate.
USB2.0 Plug-and-Play: Wide OS compatibility.
Specification
|
Model No |
SNS-5MP-IMX335 |
|
Sensor |
1/2.8'' SONY IMX335 CMOS |
|
Pixel |
5 Mega Pixel |
|
Most effective pixels |
2592(H) x 1944(V) |
|
Pixel Size |
2.0µm x 2.0µm |
|
Chroma |
Color |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
Microphone |
Built-in |
|
Dynamic range |
72dB |
|
Sensitivity |
>= 2000mV |
|
Interface type |
USB2.0 high speed |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6MM |
|
Lens Size: 1/2.8 inch |
|
|
FOV: 85° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 150mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38mm*38mm |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
