SONY IMX378 12MP USB Module HDR
|
Module Number |
XLS-M1024-V1.0 |
Sensor |
1/2.3" IMX378 |
|
Resolution |
4056x3040 |
Dimension |
With Housing Customizable |
|
Lens FOV |
100°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
HDR |
Products Description
The Sony IMX378 12MP USB camera module delivers high-resolution imaging (4056x3040) with excellent detail and clarity.
It features advanced HDR technology, capturing a wide range of brightness levels to preserve details in shadows and highlights, making it ideal for high-contrast scenes.
With enhanced low-light performance, the module ensures clear images even under challenging lighting conditions. It connects easily to computers and USB-enabled devices, offering plug-and-play operation without additional drivers.
The module's compact and customizable design allows integration into smartphones, action cameras, industrial inspection devices, and other USB-enabled systems. Optional 100° FOV lenses and optical adjustments are available to suit specific applications.
Highlights
Sony IMX378 sensor: 12MP high-resolution imaging for detailed capture
HDR High Dynamic Range: Balanced exposures in high-contrast environments
Excellent low-light performance: High sensitivity for dark scenes
USB plug-and-play: Easy integration with computers and embedded systems
Specification
|
Pixel Size |
1.55μm x 1.55μm |
|
Effective Pixels |
4056x3040 |
|
Image Sensor |
1/2.3" |
|
Sensor Type |
SONY IMX378 |
|
Lens View |
FOV100°(Optional),F/N(Optional) |
|
TV Distortion |
<1% (Optional) |
|
Temperature(Operation) |
0～60℃ |
|
Temperature(Storage) |
-20～70℃ |
|
Dimension |
19.25*8.5mm (Customizable) |

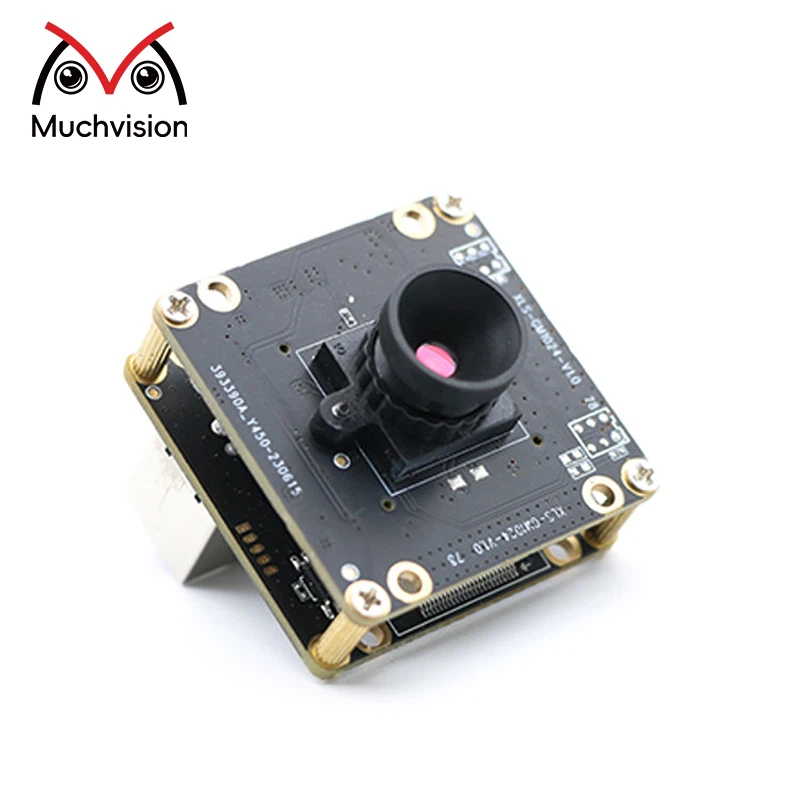

Product Picture
