IMX377 CMOS USB Camera Module 12MP
|
Module No. |
SNS-GM1024-V1.0-57 |
Sensor |
IMX577/377 |
|
Resolution |
12MP 4072 (H) X3064 (V) |
Dimension |
Customizable |
|
Unit Cell Size |
1.55 Um (H) X 1.55 Um (V) |
Focus Type |
Fixed Focus |
|
Interface |
USB |
Feature |
FHD |
Products Description
The SNS-GM1026-V1.0 is a 20MP USB camera module featuring the Sony IMX230 Exmor RS 1/2.4" CMOS sensor. It delivers HDR imaging and 4K video resolution for sharp, high-contrast images.
The module supports 192-point phase detection autofocus for fast and accurate focusing, making it suitable for moving subjects.
This camera is designed for high-speed scanners, recognition systems, education kiosks, and ID verification, offering professional-grade performance in industrial and commercial environments.
It is compatible with Windows, Linux, MacOS, and Android systems, supports USB plug-and-play, and allows adjustment of brightness, contrast, exposure, and white balance.
Highlights
20MP High Resolution – Delivers near-DSLR quality imaging with Exmor RS IMX230 sensor
HDR and 4K Video – Supports ultra-high-definition recording with enhanced dynamic range
192-Point Phase Detection AF – Fast and precise autofocus for moving targets
Professional Performance – Reduces motion blur and image smearing
Specification
|
Effective Pixels |
4072 (H) x3064 (V) |
|
Image Sensor |
(Type 1/2.3)12.3 Mega-pixel CMOS |
|
Sensor Type |
Sony IMX377 |
|
Chip size |
7.564 mm (H) × 5.476 mm (V) |
|
Substrate material |
Silicon |
|
operating temperature |
-20 to +75 ˚C |
|
storage temperature |
-30 to +80 ˚C |
|
Input frequency range |
27.0 MHz |
|
Dimensions |
Customizable |

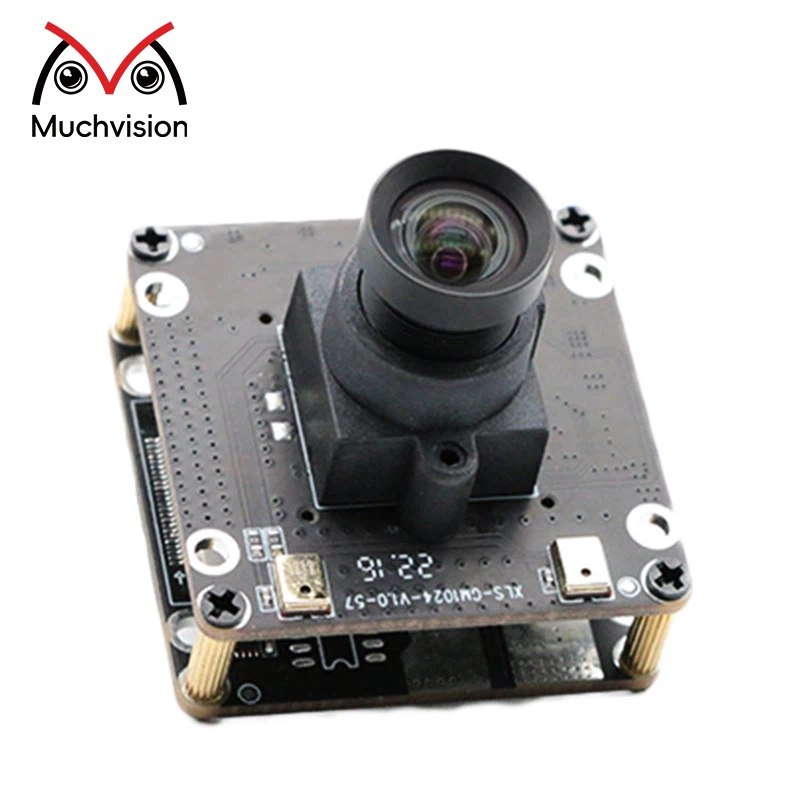

Product Picture
