USB 8MP Camera Module SONY IMX317 4k
|
Module Number |
SNS-BE508M-V2 |
Sensor |
1/2.5"SONY IMX317 |
|
Resolution |
8MP (3840*2160) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
Ultral HD |
Products Description
The 8MP SONY IMX317 USB Camera Module provides 4K Ultra HD imaging at 3840x2160 pixels with a smooth 30FPS video output. It features fixed focus for stable and reliable imaging.

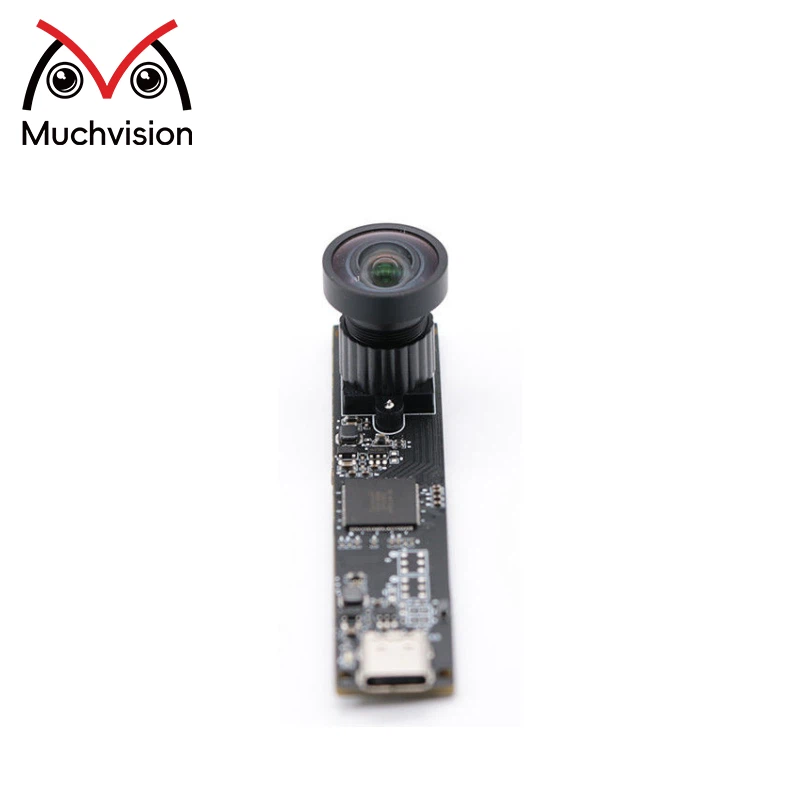

Its strip PCB design allows flexible integration into compact or specialized housings, making it suitable for drones, IoT devices, video conferencing machines, and industrial monitoring.
Optimized firmware ensures consistent high-quality 8MP images, supporting multiple resolution and frame rate combinations to meet varied application requirements.
The module includes a Micro USB interface for plug-and-play connectivity and is compatible with Windows, Linux, Mac, and Android systems, enabling quick integration into your devices.
Highlights
4K 8MP Ultra HD: Provides clear and detailed 3840x2160 resolution
Full resolution 30FPS: Smooth video output at full 4K resolution
Strip PCB design: Adapted for compact and specialized housing integration
Firmware optimization: Ensures stable and excellent image quality
Fixed focus USB camera: Reliable imaging without manual adjustments
Specification
|
Model No |
SNS-BE508M-V2 |
|
Sensor |
1/2.5'' SONY IMX317 CMOS |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3840(H) x 2160(V) |
|
Pixel Size |
1.62µm x 1.62µm |
|
Image area |
3864um (H) x 2196um (V) |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
Chroma |
Color, RGB |
|
Clock Frequency |
6 to 72 MHz |
|
Microphones |
Built-in |
|
Interface type |
Micro USB |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
|
Lens |
Focal length: 3.6mm |
|
Lens construction: 5E+IR |
|
|
D FOV: 100 degree |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Operating Voltage |
DC 5V |
|
Operating Current |
260mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
