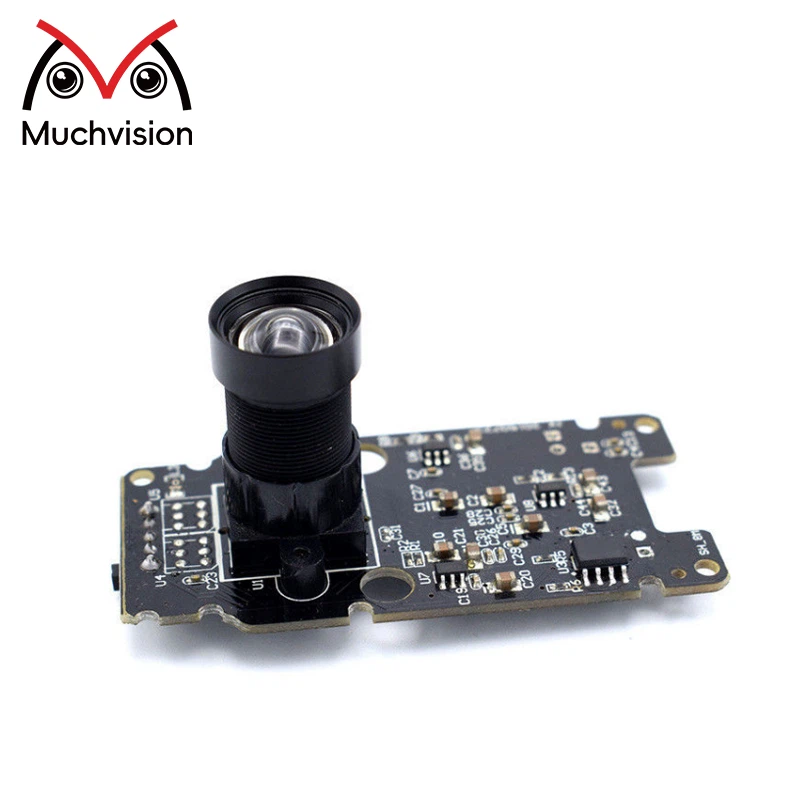

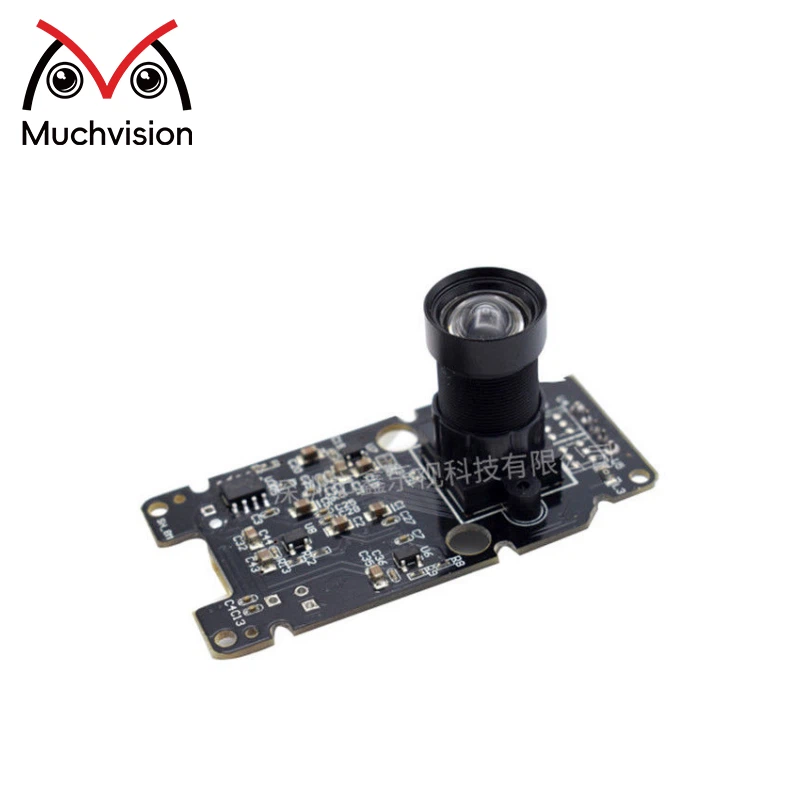

USB2.0 8MP Camera Module SONY IMX179 Drive Free
|
Module Number |
SNS-USB179SM-V1.0 |
Sensor |
1/3.2" SONY IMX179 |
|
Resolution |
8MP 3264(H) X 2448(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
4K |
Products Description
The 8MP USB2.0 camera module with SONY IMX179 sensor is designed for high-speed scanners, document scanners, and book scanners. It captures images at 3264x2448 resolution with stable quality, ensuring clear document details.
Its fixed focus lens keeps scanned images sharp without adjustment, making it suitable for applications that require fast and accurate capture. The module offers customizable PCB sizes (default 58x28.7mm) to fit different device designs and supports optional LED fill light and microphone integration. With USB2.0 driver-free connectivity, it supports 8MP@15fps and 1080P@30fps MJPEG output, providing smooth performance and easy integration into various scanning systems.
Highlights
8MP High-Resolution Imaging: 3264x2448 output with SONY IMX179 sensor.
Fixed Focus Lens: Clear and stable scanning without manual adjustment.
USB2.0 Driver-Free: Plug-and-play, supports 8MP@15fps and 1080P@30fps video.
Customizable Design: PCB size, LED fill light, and microphone integration available.
Compact Module: Easy to integrate into scanners and imaging systems.
Product Structure
Specification
|
Model No |
SNS-USB179SM-V1.0 |
|
Sensor |
1/3.2'' IMX179 |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3264(H) x 2448(V) |
|
Pixel Size |
1.4µm x 1.4µm |
|
Compression format |
MJPG / YUY2 |
|
Resolution |
see above |
|
Frame rate |
see above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
36dB |
|
Dynamic range |
60dB |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
Lens Size: 1/3 inch |
|
|
FOV: 90° (Optional) |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Support |
|
microphone |
Built-in |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Not Supported |
|
Dimension |
58x28.7MM(customizable) |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
