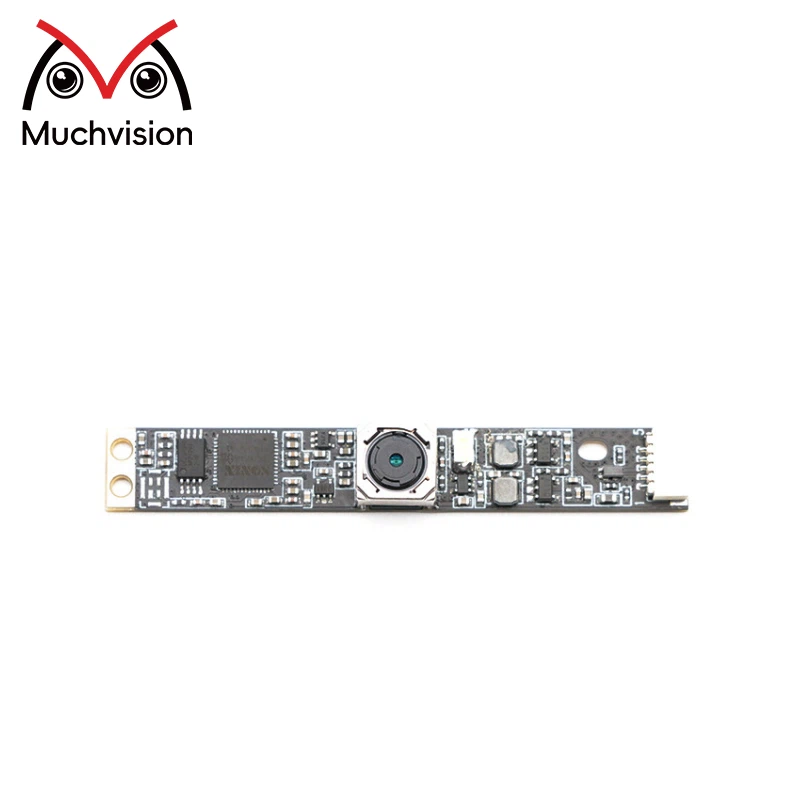

QSXGA 5MP OV5648 MIPI Autofocus Camera Module
|
Module Number |
SNS-DZ1018-V1.0 |
Sensor |
1/4"Omnivision OV5648 |
|
Resolution |
5MP (2592*1944) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Auto Focus |
|
Interface |
USB2.0 |
Feature |
HD,Roller Shutter |
Products Description
The 5MP USB Autofocus Camera Module with Omnivision OV5648 sensor delivers high-definition imaging at 2592x1944 resolution. Its autofocus function automatically adjusts the lens to ensure sharp images at different distances, providing stable performance for both static and dynamic scenes.
Equipped with USB 2.0 and UVC support, this module is plug-and-play and compatible with mainstream embedded platforms such as Raspberry Pi and Jetson Nano, making it ideal for developers, makers, and embedded vision engineers.
Its compact and customizable design allows integration into mobile devices, digital cameras, all-in-ones, toys, and multimedia systems. Lens options and module size can be adjusted to meet specific application requirements, offering flexibility for diverse embedded applications.
Highlights
5MP Autofocus: Ensures sharp, high-definition images at 2592x1944 resolution
Embedded Platform Compatibility: Supports Raspberry Pi and Jetson Nano for easy development
UVC Plug-and-Play: No driver installation required, simplifies deployment
Compact and Flexible Design: Customizable size and lens for seamless integration
High-Quality Imaging: Electronic rolling shutter and efficient color reproduction
Specification
|
Model No |
SNS-DZ1018-V1.0 |
|
Sensor |
1/4'' Omnivision OV5648 |
|
Pixel |
5 Mega Pixel |
|
Most effective pixels |
2592(H) x 1944(V) |
|
Pixel Size |
1.4µm x 1.4µm |
|
Image area |
3673.6µm x 2738.4µm |
|
Compression format |
MJPG/YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Auto Focus |
|
S/N ratio |
36dB |
|
Dynamic range |
72 dB @ 8x gain |
|
Sensitivity |
690mV / lux-sec |
|
Interface type |
USB2.0 high seepd |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Operating temperature |
30°C to 70°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
