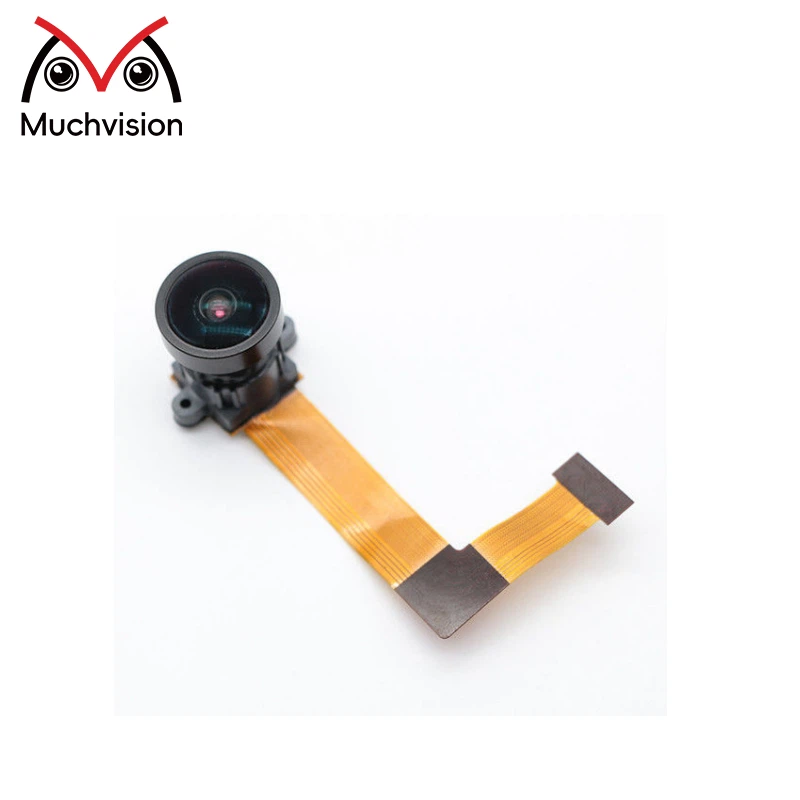

1MP WXGA MIPI Camera Module Omnivision OV10635
|
Module Number |
SNS-1MP-OV10635-M1.0 |
Sensor |
1/2.7" Omnivision OV10635 |
|
Resolution |
1MP 1280Hx800V |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
MIPI |
Feature |
HDR |
Products Description
The Omnivision OV10635 1MP WXGA MIPI camera module provides 1280x800 resolution with fixed focus and reliable performance across a wide temperature range (-40℃ to 105℃).
It features HDR (High Dynamic Range) to capture details in high-contrast scenes and ensure image clarity in challenging lighting conditions. The large 4.2µm pixel size delivers excellent low-light performance and high sensitivity.
The module supports multiple image outputs, including HD 720p and WVGA resolutions, at 30FPS. The compact design supports customizable sizes and optional 90° FOV lenses, allowing flexible integration in industrial, automotive, and outdoor systems.
Highlights
Omnivision OV10635 sensor.
1MP WXGA (1280x800) resolution.
-40℃ to 105℃ wide operating temperature: excellent weather resistance.
HDR High Dynamic Range: handle complex lighting.
High sensitivity & excellent low-light imaging.
Specification
|
Module No |
SNS-1MP-OV10635-M1.0 |
|
Pixel Size |
4.2μm x 4.2μm |
|
Effective Pixels |
1280H×800H |
|
Video output |
Raw Bayer10bit/8bit |
|
Active Array Size Video Rate |
30FPS |
|
Image Sensor |
1/2.7" |
|
Sensor Type |
Omnivision OV10635 |
|
Lens view |
FOV90°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
-40～105℃ |
|
Storage temperature |
0～70℃ |
|
Dimensions |
Customizable |
