Module Number |
XLS12073-V1.0 |
Sensor |
OV9281 Monochrome CMOS |
|
Resolution |
1280*800 |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
FF |
|
Interface |
MIPI |
Feature |
Global Shutter, 120fps |
Products Description

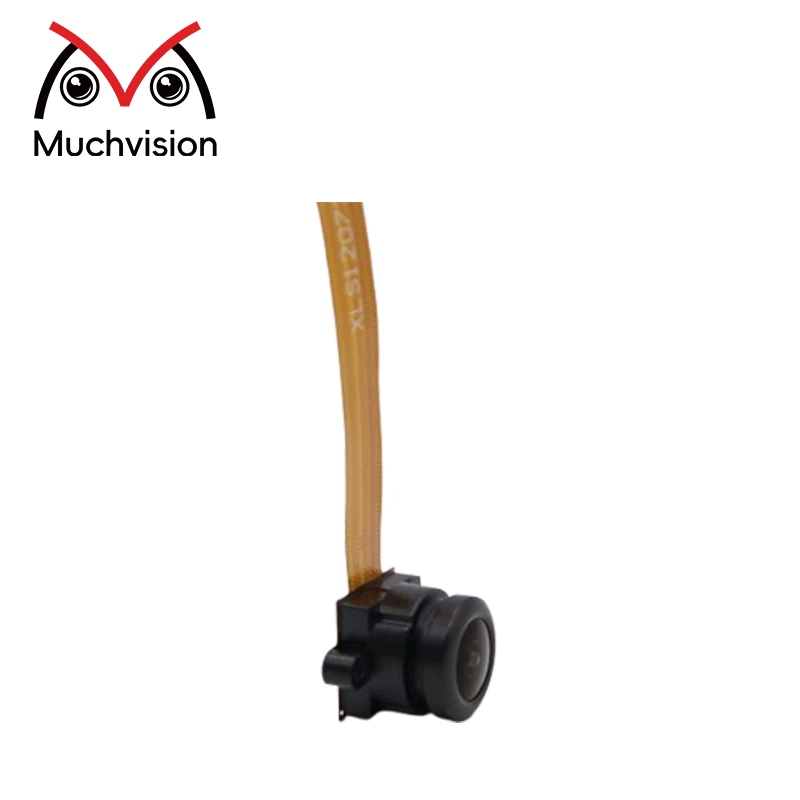

The XLS12073-V1.0 OV9281 Monochrome CMOS Camera Module is designed for applications that demand speed, stability, and precision. It supports global shutter technology, capturing sharp images without motion artifacts even in high-speed environments. With 1MP resolution (1280×800) and 120fps frame rate, it ensures smooth real-time image capture.
Its MIPI/DVP interface makes it compatible with popular platforms such as Rockchip, Qualcomm, MTK, STM32, and others. Combined with low power consumption and compact dimensions, it is widely adopted in retail scanners, biometric authentication, AR/VR imaging, and industrial inspection.
Highlights
Global Shutter Technology – Eliminates motion artifacts
Ultra-Fast Capture – Up to 120fps at 1MP resolution
Wide Platform Compatibility – RK, Qualcomm, MTK, STM32, etc.
Compact & Low Power – Easy to embed into mobile and industrial devices
Structure diagram
parameter
|
Item |
Specification |
|
Model |
XLS12073-V1.0 |
|
Sensor |
OV9281 Monochrome CMOS |
|
Sensor Size |
1/4 inch |
|
Effective Pixels |
1280 × 800 (1MP) |
|
Frame Rate |
1280×800 @120fps / 640×480 @120fps / 320×240 @120fps |
|
Pixel Size |
3.0 μm × 3.0 μm |
|
Shutter Type |
Global Shutter |
|
Output Interface |
1/2-lane MIPI, DVP parallel |
|
Output Format |
10-bit RAW |
|
Focus Type |
Fixed Focus (FF) |
|
Field of View (FOV) |
120° (optional) |
|
Lens Size |
1/4 inch |
|
Module Dimensions |
118.5 × 14 mm |
|
Package Size |
11.7 × 13 mm |
|
Power Supply |
Analog: 2.8V (typical), Core: 1.2V (typical), I/O: 1.8V (typical) |
|
Power Consumption |
Active: 134mW, Standby: 65μA, Shutdown: 50μA |
|
Operating Temperature |
-30°C to +85°C |
|
Stable Imaging Temperature |
0°C to 50°C |
|
Image Area |
3896 μm × 2453 μm |
|
Active Array Size |
1296 × 816 |
|
Scan Mode |
Progressive |
|
Exposure Time |
Min: 1 row period / Max: frame length - 12 row periods |
|
Platform Compatibility |
Rockchip, Qualcomm, Allwinner, MTK, Spreadtrum, Hisilicon, Mstar, STM32 |
|
Typical Applications |
Barcode scanning, QR code recognition, 3D scanning, industrial inspection, face recognition, AR/VR devices, pattern detection, gesture recognition, iris recognition, machine vision, high-speed capture |
