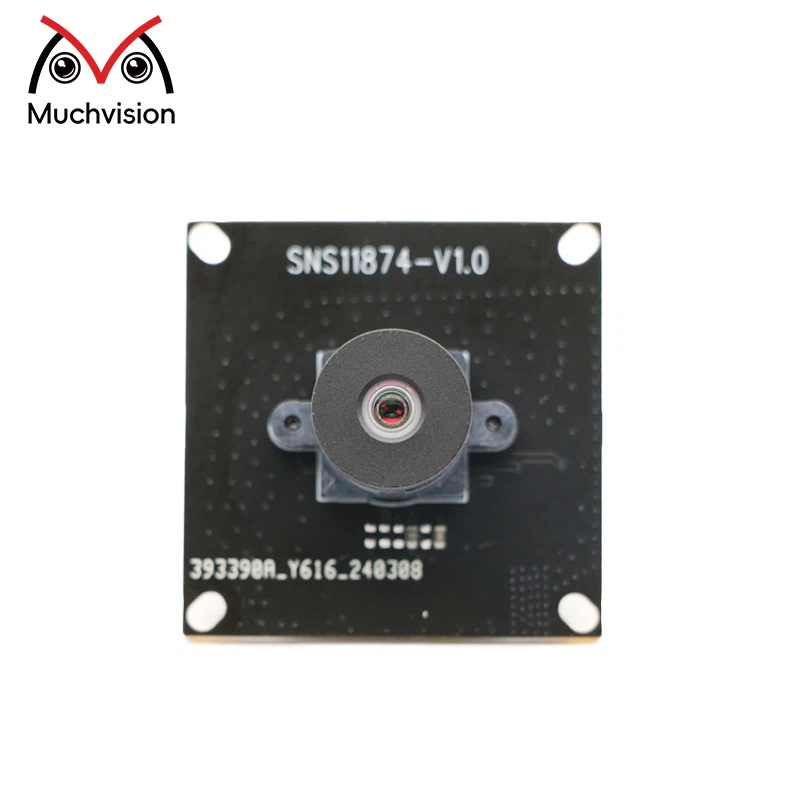

120fps MIPI interface OV9281 720P camera module
|
Module Number |
SNS11874-V1.0 |
Sensor |
OV9281 1/4 Inch |
|
Resolution |
1MP 1280*800 |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed focus |
|
Interface |
MIPI |
Feature |
Low-light Sensitivity And Achieves High-quality Imaging |
Products Description
The OV9281 1MP WXGA MIPI camera module provides 1280x800 resolution and integrates global shutter technology to capture high-speed objects without distortion.
The module supports up to 120FPS, allowing smooth video capture for motion analysis. Its large 3µm pixels deliver high sensitivity in low-light conditions, producing clear images without extra lighting.
It uses a 2-lane MIPI interface for fast and stable data transmission. The module features fixed focus, optional 48° FOV lens, and customizable size to suit diverse applications.
This camera module is suitable for industrial, scientific, and motion detection applications, ensuring high-quality imaging under demanding conditions.
Highlights
OV9281 CMOS sensor.
1MP WXGA (1280x800) resolution.
Global Shutter: Capture high-speed motion without distortion.
120FPS high frame rate.
Excellent low-light sensitivity & high-quality imaging.

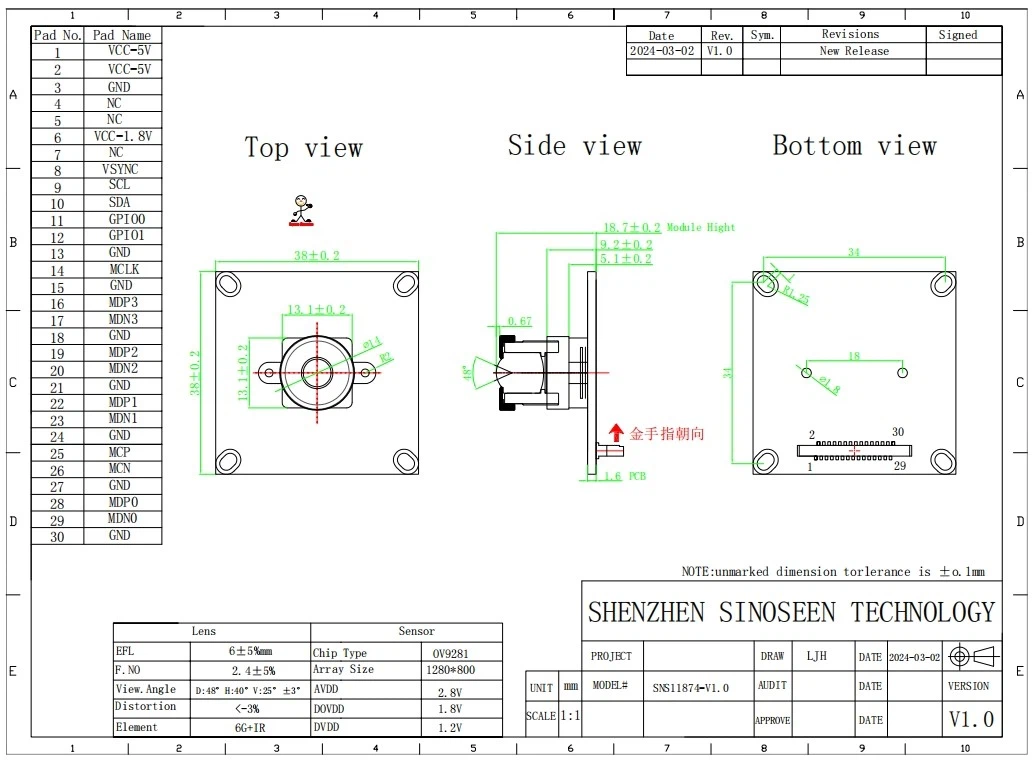

Product structure
Specification
|
Module |
SNS11874-V1.0 |
|
Sensor |
OV9281 CMOS |
|
Pixel |
1MP |
|
Most effective pixels |
1280*800 |
|
Pixel Size |
3um*3um |
|
Frame rate |
120fps |
|
Focus type |
Fixed focus |
|
Output interface |
2-lane MIPI |
|
Output formats |
10-bit RAW |
|
Max S/N ratio |
TBD |
|
Dynamic |
TBD |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
