SC410GS USB Camera Module 4MP Main parameters
|
Module Number： |
XLS-GM1068-V1.0 |
Sensor: |
1/1.3"CMOS SC410GS |
|
Resolution: |
1752H*2336V |
Dimension: |
Customized |
|
Len FoV: |
194°(option) |
Focus Type: |
FF |
|
Interface: |
USB |
Feature: |
4M,HDR |
Products Description
The SC410GS USB camera module integrates a 1/1.3 inch SC410GS 4MP CMOS sensor, delivering 2560×1440 high-resolution images. Its HDR support ensures clear and detailed imaging in diverse lighting conditions.
Equipped with a USB 2.0 interface, the module provides fast and reliable data transfer for real-time video processing and low-latency applications. Its compact design allows easy integration into embedded systems, robotics, surveillance setups, and industrial automation platforms.
Key Features/Advantages
4MP High Resolution: Captures clear and detailed images at 2560×1440
HDR Support: Ensures balanced and high-quality imaging in all lighting conditions
USB Interface: Fast and stable data transfer for real-time processing
Compact and Space-Efficient: Ideal for embedded systems, robotics, and industrial setups

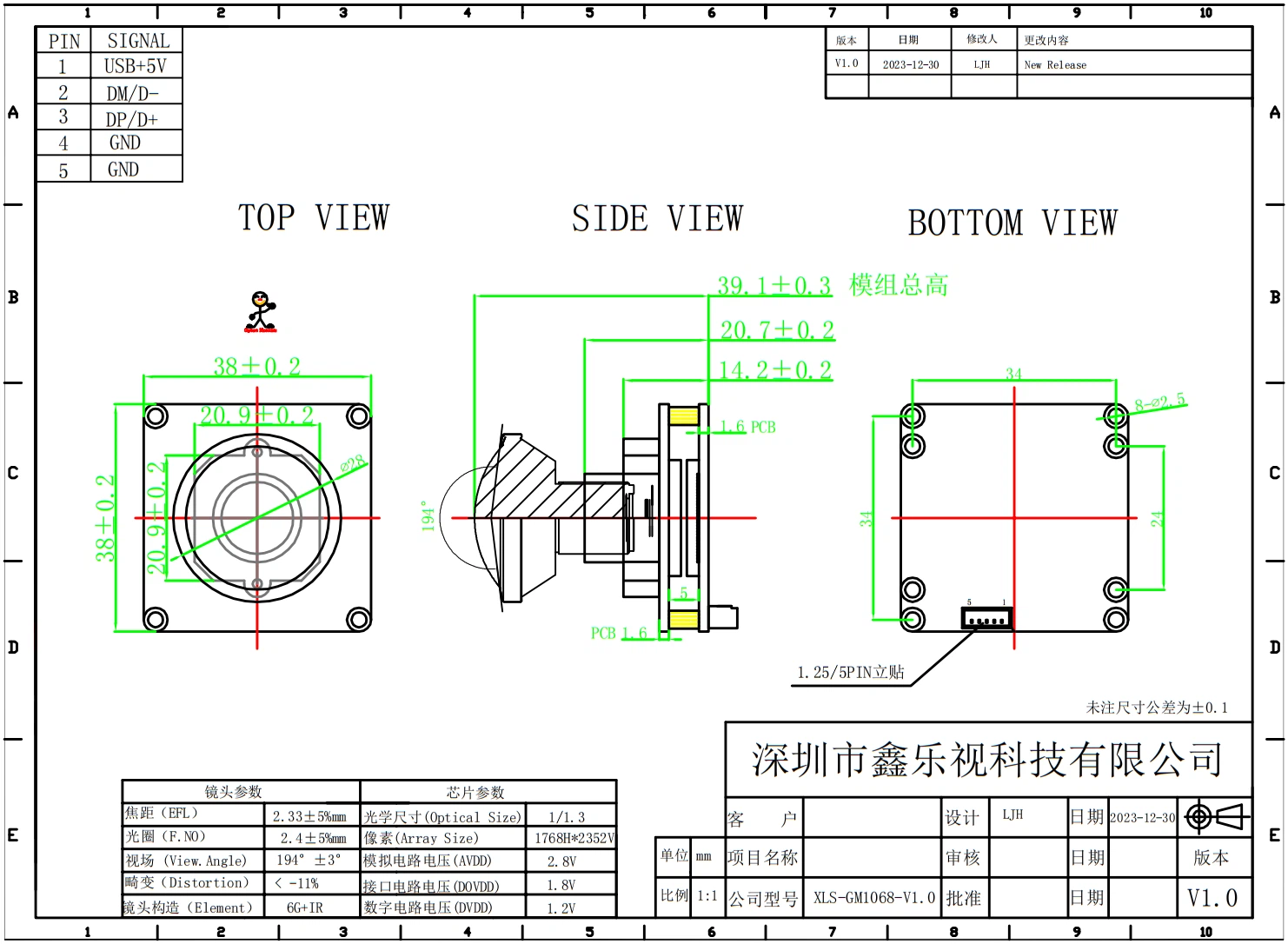

Product structure
Specification
|
Signal |
XLS-GM1068-V1.0 |
REMARKS |
|
|
Image Sensor Size |
1/1.3"CMOS |
||
|
Effective Pixels |
1752H*2336V |
|
|
|
Pixel size |
4.2um*4.2um |
|
|
|
Optical distortion |
≤-11% |
|
|
|
Image sensor Data output |
Raw Data 10bits |
|
|
|
Video output |
MPJG/YUV |
|
|
|
Maximum Frame Rates |
1752*2336 50FPS 872*1168 100FPS 480*640 50FPS 240*320 100FPS |
||
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
TBD |
NO LED |
|
|
Digital interface |
5pin 1.25mm USB2.0 |
Cable length 1.5 meters |
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-10℃to60℃ |
|
|
|
operating temperature |
-20℃to60℃ |
|
|
|
Power Consumption |
NO LED |
/ |
|
|
IR-LED |
/ |
|
|
|
PCB printig ink |
black |
||
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M12*P0.5 |
LENS |
|
|
Lens Construction |
6G+650IR |
|
|
|
F/NO |
2.4±5% |
|
|
|
EFL |
2.33mm±5% |
|
|
|
FOV |
D：194°±3° |
|
|
|
Focusing method |
Fixed focus |
|
|
|
Shooting distance |
60cm-∞ |
|
|

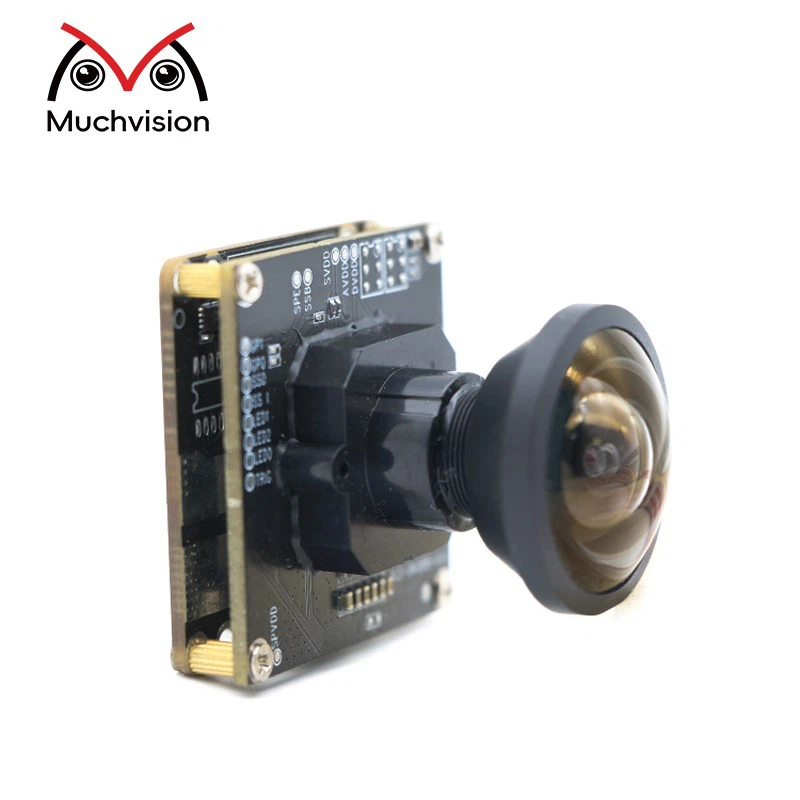

Product Picture
Application areas of camera modules
1. Machine Vision inspection: The Global Exposure camera module is suitable for machine vision inspection, capturing fast moving objects without motion artifacts
2. Industrial Camera modules: For industrial camera modules, providing high definition and wide dynamic range to adapt to different lighting conditions
3. Security monitoring camera: Used for security monitoring, providing high-resolution images that maintain clarity even in low-light environments
