IMX145 USB Camera Module AI embedded Main parameters
|
Module Number |
SNS-DZ1065-V1.0 |
Sensor |
IMX415 |
|
Resolution |
4k 8mp |
Dimension |
Customizable |
|
Lens FOV |
163 (Optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB 2.0 |
Feature |
4K UHD |
Products Description
The IMX145 USB Camera Module integrates the Sony IMX145 sensor, providing high-resolution 4K UHD imaging with excellent color accuracy and low noise.
It is AI-optimized, supporting object detection, facial recognition, and machine vision applications.
The USB 2.0 interface ensures fast and seamless data transfer, enabling real-time video processing and integration with embedded systems.
With HDR support and strong low-light performance, the module delivers clear and detailed images in a wide range of lighting conditions.
Key Features
4K UHD High-Resolution Imaging: Clear and detailed video with excellent color accuracy
AI-Optimized: Supports object detection, facial recognition, and machine vision
USB 2.0 Connectivity: Fast, reliable data transfer for real-time processing
Compact and Space-Efficient Design: Ideal for embedded systems and robotics
Low-Light Performance: High-quality imaging in dim lighting conditions

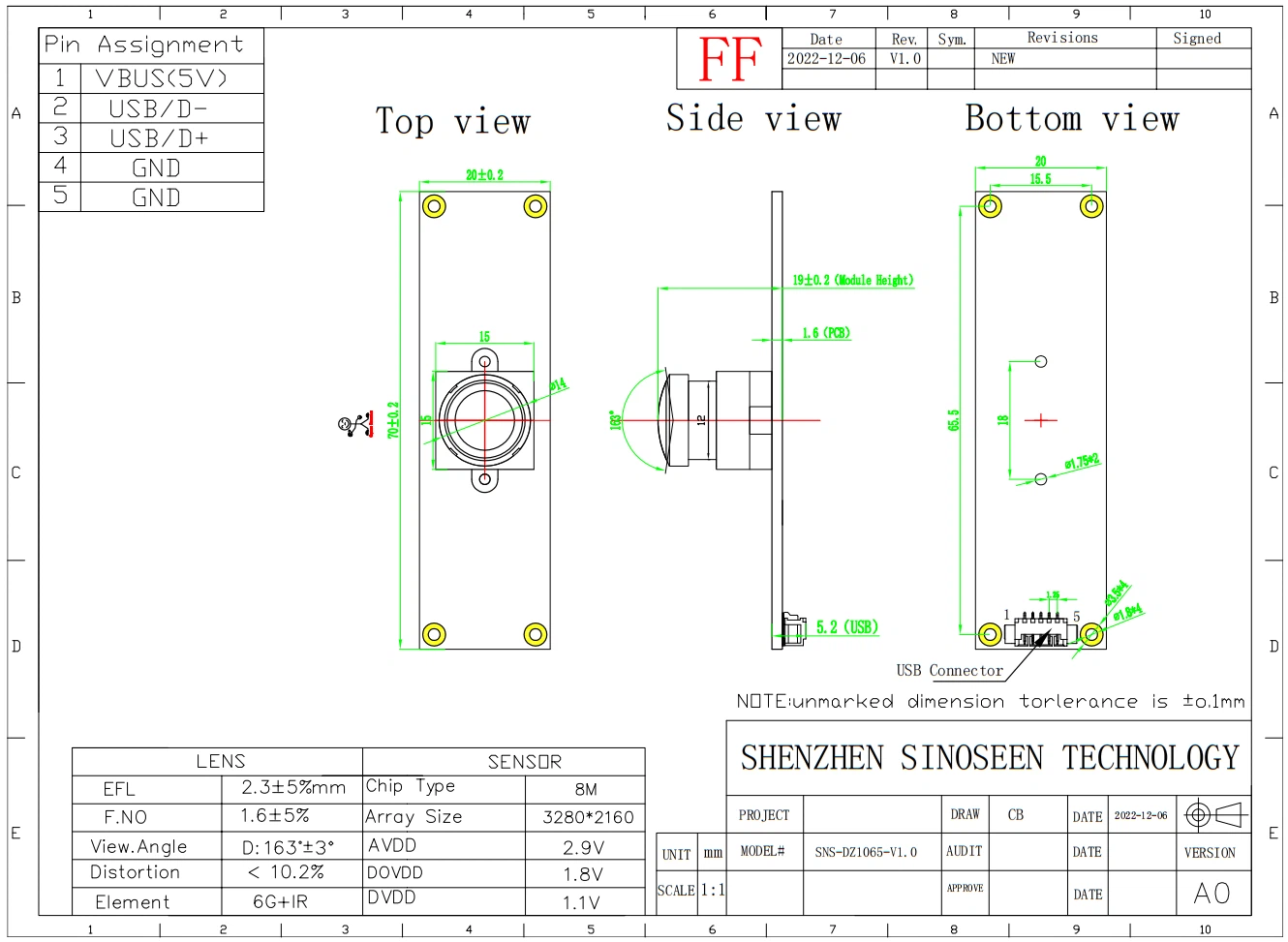

Product structure
Specification
|
Signal |
SNS-DZ1065-V1.0 |
REMARKS |
|
|
Image Sensor Size |
1/2.8inch |
||
|
Effective Pixels |
3864H*2228V |
|
|
|
Pixel size |
1.45 um*1.45 um |
|
|
|
Optical distortion |
<10.2% |
|
|
|
Image sensor Data output |
Raw Bayer 10bits |
|
|
|
Video output |
MPJG/YUV |
|
|
|
Maximum Frame Rates |
3840*2160 30FPS 2592*1944 30FPS 2048*1536 30FPS 1600*1200 30FPS 1920*1080 30FPS 1280*960 30FPS 1280*720 30FPS 800*600 30FPS 640*480 30FPS 320*240 30FPS |
||
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
TBD |
||
|
Digital interface |
5pin 1.25mm USB2 |
Cable length 1.5 meters |
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
TBD |
|
|
IR-LED |
TBD |
|
|
|
PCB printig ink |
black |
||
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M12*P0.5 |
LENS |
|
|
Lens Construction |
6G+IR |
|
|
|
F/NO |
1.6±5% |
|
|
|
EFL |
2.3 mm±5% |
|
|
|
FOV |
163°±3° |
|
|
|
Focusing method |
Fixed focus |
|
|
|
Shooting distance |
60cm-∞ |
|
|
Product Picture
Application areas of camera modules
1. Barcode scanning: Used for barcode scanning in industrial automation to improve logistics and warehousing efficiency
2. Document scanner: Used for document scanning to digitize paper documents for easy storage and retrieval
3. Face recognition system: Used in face recognition systems to provide high definition images and enhance recognition accuracy
