OV9281 USB Camera Module 1MP Main parameters
|
Module Number： |
SNS-SM1159-V1.0 |
Sensor: |
1/4 inch OV9281 |
|
Resolution: |
1280H*800V |
Dimension: |
Customized |
|
Len FoV: |
83°(option) |
Focus Type: |
FF |
|
Interface: |
usb |
Feature: |
1M,Hight Frame Rate |
Products Description
The OV9281 USB camera module is powered by a 1/4 inch OV9281 sensor, delivering 1280×800 resolution with a global shutter for motion-free imaging of fast-moving objects.
It supports high frame rates, making it suitable for real-time video streaming, machine vision, and AI-driven tasks such as object detection and facial recognition.
With USB 2.0 connectivity, it ensures fast and stable data transfer for embedded systems and compact devices. Its low-latency performance and plug-and-play design allow quick integration across multiple platforms including Windows, Mac, Linux, and Android.
Key Features/Advantages
1MP Global Shutter: Captures fast-moving objects without motion blur
High Frame Rate: Supports up to 210FPS for real-time video processing
USB Interface: Fast and reliable data transfer for seamless integration
AI-Optimized: Ideal for object detection, facial recognition, and machine vision
Compact Design: Space-efficient for embedded systems and robotics
Product structure
Specification
|
Signal |
SNS-SM1159-V1.0 |
REMARKS |
|
|
Image Sensor Size |
1/4 inch |
||
|
Effective Pixels |
1280H*800V |
|
|
|
Pixel size |
3 um*3 um |
|
|
|
Optical distortion |
<-1.2% |
|
|
|
Image sensor Data output |
Raw Bayer 10bits |
|
|
|
Video output |
MPJG/YUV |
|
|
|
Maximum Frame Rates |
2560*800 120FPS 1280*800 120FPS 1280*792 120FPS 2560*720 120FPS 1280*720 120FPS 1280*712 120FPS 1600*600 120FPS 800*600 120FPS 800*592 120FPS 1280*480 210FPS 640*472 210FPS 1280*400 210FPS 640*400 210FPS 640*392 210FPS 640*480 210FPS 640*240 210FPS 320*240 210FPS 320*232 210FPS |
MPJG |
|
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
TBD |
||
|
Digital interface |
USB2.0 |
Cable length 1.5 meters |
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
/ |
|
|
IR-LED |
/ |
|
|
|
PCB printig ink |
black |
||
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M12*P0.5 |
LENS |
|
|
Lens Construction |
1G5P+650IR |
|
|
|
F/NO |
2.4±5% |
|
|
|
EFL |
2.6 mm±5% |
|
|
|
FOV |
D ：83°±3° |
|
|
|
Focusing method |
Fixed focus |
|
|
|
Shooting distance |
60cm-∞ |
|
|

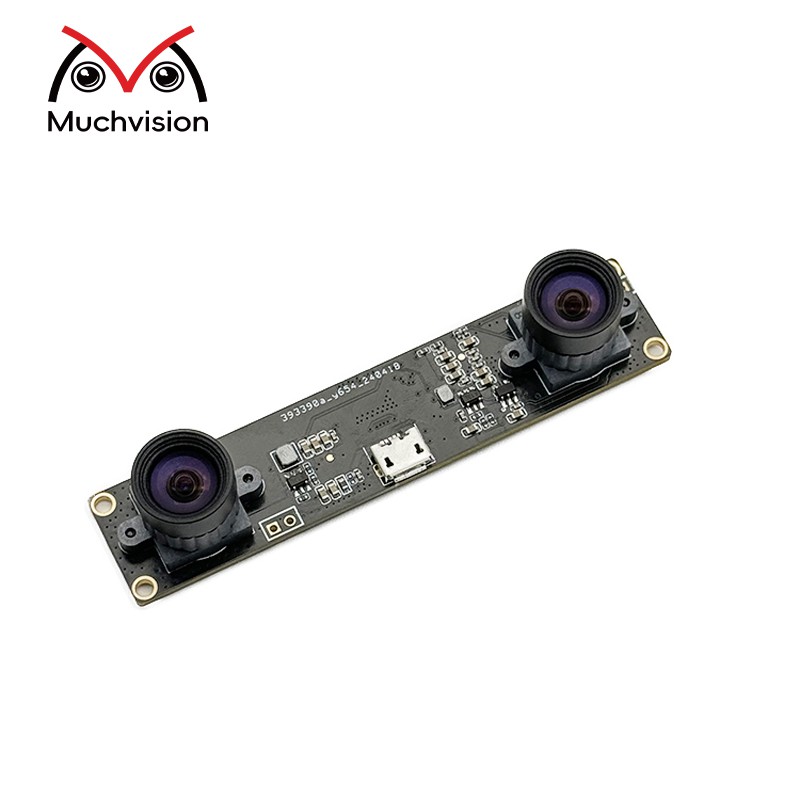

Product Picture
Application areas of camera modules
1. Airport security monitoring: Used for airport security monitoring to ensure flight safety and monitor airport operations
2. Marine Research Camera: Used for Marine research, capturing images of the underwater world, and studying Marine ecology
3. Geological exploration camera: Used for geological exploration to capture images of geological structures and assist geological research
