720p USB Camera Module High-Quality Main parameters
|
Module Number： |
SNS-DZ1134-V1.0 |
Sensor: |
1/5 inch |
|
Resolution: |
1280*720 |
Dimension: |
Customized |
|
Len FoV: |
70°(option) |
Focus Type: |
FF |
|
Interface: |
USB |
Feature: |
720P HD Camera Module |
Products Description
The 720p USB camera module delivers high-definition video at 1280x720 resolution. It supports USB connectivity for fast and reliable data transfer.
The module is compact and fits easily into embedded systems and space-limited devices. It maintains low-light performance for clear video even in dim environments.
This camera module is suitable for video conferencing, robotics, AR and VR applications, and machine vision tasks. It ensures real-time video streaming and is compatible with Windows, Mac, Linux, and Android platforms.
Key Features/Advantages
720p HD Resolution: Captures clear and detailed video at 1280x720
USB Connectivity: Fast and reliable data transfer for seamless integration
Compact Design: Fits embedded systems and space-constrained devices
Low-Light Performance: Maintains clear video in dim environments

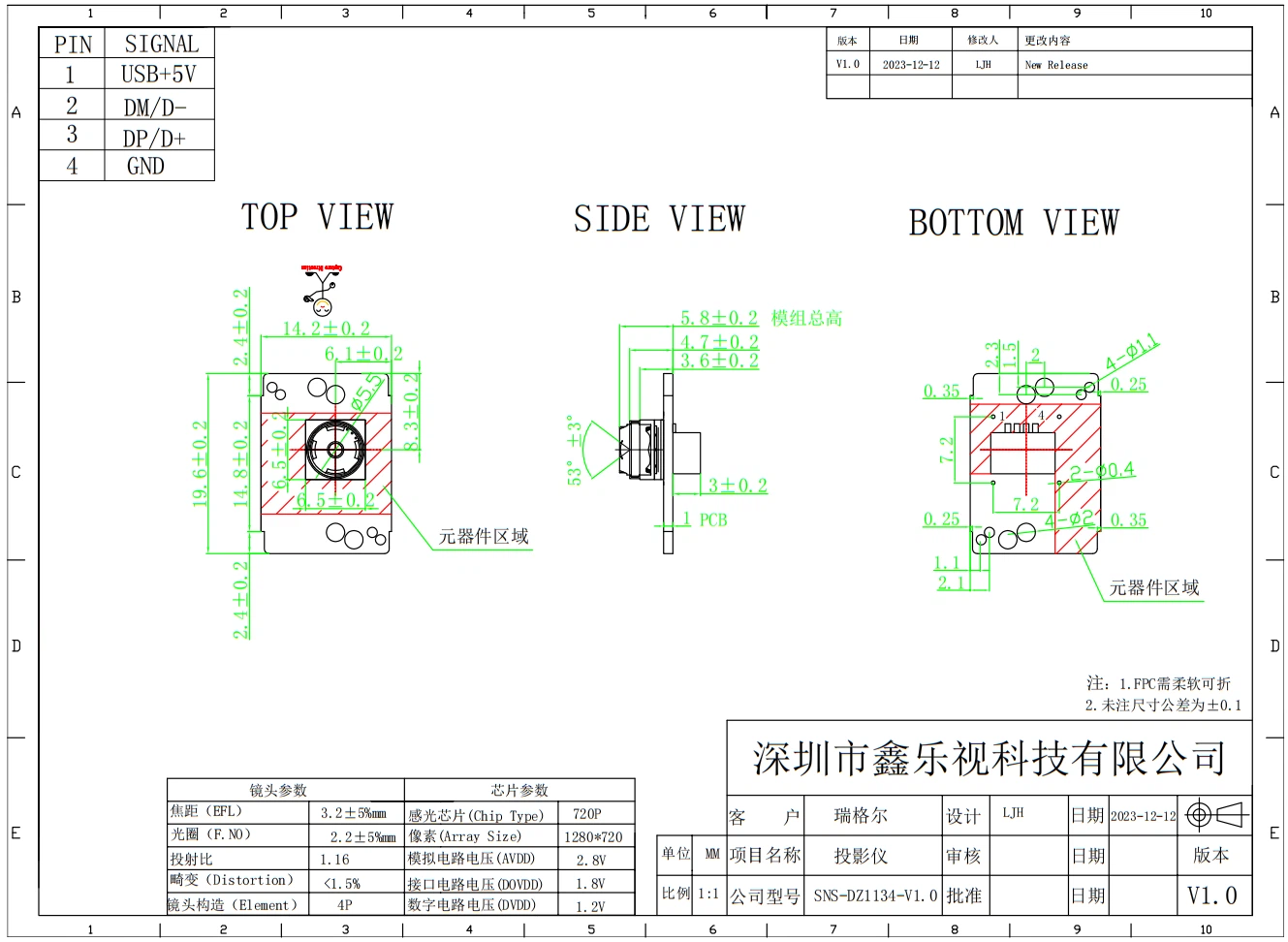

Product structure
Specification
|
Signal |
SNS-DZ1134-V1.0 |
REMARKS |
|
|
Image Sensor Size |
1/5 inch |
||
|
Effective Pixels |
1280*720 |
|
|
|
Pixel size |
3.0 um*3.0 um |
|
|
|
Optical distortion |
≤1.5% |
|
|
|
Image sensor Data output |
Raw Bayer 10bits |
|
|
|
Video output |
MPJG/YUV |
|
|
|
Maximum Frame Rates |
1280*720 30FPS 960*540 30FPS 800*480 30FPS 640*480 30FPS 320*240 30FPS 160*120 30FPS |
||
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
TBD |
||
|
Digital interface |
4pin 1.0mm USB2.0 |
Cable length 1.5 meters |
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
/ |
|
|
IR-LED |
/ |
|
|
|
PCB printig ink |
black |
||
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M6*P0.25 |
LENS |
|
|
Lens Construction |
4P |
|
|
|
F/NO |
2.2±5% |
|
|
|
EFL |
3.2mm±5% |
|
|
|
FOV |
D:53°±3° |
|
|
|
Throw Ratio |
1.16 |
|
|
|
Focusing method |
Fixed focus |
|
|
|
Shooting distance |
60cm-∞ |
|
|
Product Picture
Application areas of camera modules
1. Virtual Reality (VR) : For virtual reality devices that provide the high-quality image capture required for immersive experiences
2. Augmented Reality (AR) : for augmented reality applications that combine real world and virtual information to provide an enhanced visual experience
3. 3D Scanning and modeling: Used for 3D scanning and modeling to capture three-dimensional information about objects for design and manufacturing
