IMX178 USB Camera Module 12MP Main parameters
|
Module Number： |
SNS-DZ1092-V1.0 |
Sensor: |
1/1.8inch Snoy Imx178 |
|
Resolution: |
3072*2048 |
Dimension: |
Customized |
|
Len FoV: |
120°(option) |
Focus Type: |
Fixed focus |
|
Interface: |
USB |
Feature: |
6mp |
Products Description
The IMX178 USB Camera Module features the Sony IMX178 12MP sensor, providing high-resolution imaging at 4096×2160 (4K) for clear and detailed visuals.
It supports AI applications such as object detection, facial recognition, and real-time video analysis.
The module uses a USB interface for fast and stable data transfer, ensuring smooth integration into various platforms.
With HDR support and superior low-light performance, it delivers high-quality images across diverse lighting conditions.
Key Features
12MP High-Resolution Imaging: Ultra-clear video and images at 4096×2160
AI-Optimized: Supports object detection, facial recognition, and real-time image analysis
USB Interface: High-speed and stable connectivity for seamless integration
HDR Support: Maintains excellent image quality in bright and low-light conditions
Product structure
Specification
|
Signal |
SNS-DZ109-V1.0 |
REMARKS |
|
|
Image Sensor Size |
1/1.8inch |
||
|
Effective Pixels |
3072*2048 |
|
|
|
Pixel size |
2.4 um*2.4 um |
|
|
|
Optical distortion |
<-5.9% |
|
|
|
Image sensor Data output |
Raw Bayer 10bits |
|
|
|
Video output |
MPJG/YUV |
|
|
|
Maximum Frame Rates |
3072*2048 30FPS 3072*1728 30FPS 2592*1944 30FPS 2048*1536 30FPS 1600*1200 30FPS 1920*1080 120FPS 1280*720 120FPS 1280*960 30FPS 800*600 30FPS 640*480 30FPS |
||
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
TBD |
||
|
Digital interface |
5pin 1.25mm USB2.0 |
Cable length 1.5 meters |
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
/ |
|
|
IR-LED |
/ |
|
|
|
PCB printig ink |
black |
||
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M12*P0.5 |
LENS |
|
|
Lens Construction |
4G4P+650IR |
|
|
|
F/NO |
2.0±5% |
|
|
|
EFL |
3.05 mm±5% |
|
|
|
FOV |
D:119°±3° |
|
|
|
Focusing method |
Fixed focus |
|
|
|
Shooting distance |
60cm-∞ |
|
|

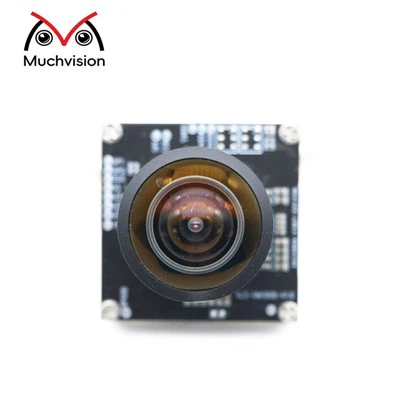

Product Picture
Application areas of camera modules
1. Traffic monitoring: Used for traffic monitoring, monitoring traffic flow and road safety, reducing traffic accidents
2. Industrial testing equipment: Used for industrial testing equipment to detect product defects and improve product quality
3. Automated robots: Integrated into automated robots to provide visual support and improve the navigation and operation capabilities of robots
