VB1940 USB Camera Module 3840×2160 Main parameters
|
Module Number： |
SNS-GM1133-V1.0 |
Sensor: |
1/2.8inch VB1940 |
|
Resolution: |
2592H*1944V |
Dimension: |
Customized |
|
Len FoV: |
82°(option) |
Focus Type: |
FF |
|
Interface: |
usb |
Feature: |
5M Camera Module HD |
Products Description
The VB1940 USB camera module features a 1/2.8" VB1940 sensor capable of 4K Ultra HD video capture at 3840×2160 resolution. It supports USB connectivity for fast and stable data transfer, enabling real-time video streaming and processing.
Designed for AI and machine vision applications, it is perfect for smart surveillance, industrial automation, robotics, and embedded systems. The module offers low-light performance, providing clear images even in challenging lighting conditions.
Key Features/Advantages
4K Ultra HD Resolution: Captures ultra-clear video at 3840×2160
USB Interface: Ensures fast, stable data transfer for real-time processing
High Performance Imaging: Sharp and accurate images for AI, machine vision, and robotics
Product structure
Specification
|
Signal |
SNS-GM1133-V1.0 |
REMARKS |
|
|
Image Sensor Size |
1/2.8inch |
||
|
Effective Pixels |
2592H*1944V |
|
|
|
Pixel size |
2.0 um*2.0 um |
|
|
|
Optical distortion |
<0.45% |
|
|
|
Image sensor Data output |
Raw Bayer 10bits |
|
|
|
Video output |
MPJG/YUV |
|
|
|
Maximum Frame Rates |
2592*1944 30 FPS 1920*1080 30 FPS 1600*1200 30 FPS |
MJPG |
|
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
TBD |
||
|
Digital interface |
Type-c USB2.0 |
Cable length 1.5 meters |
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
/ |
|
|
IR-LED |
/ |
|
|
|
PCB printig ink |
black |
||
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M12*P0.5 |
LENS |
|
|
Lens Construction |
3G2P+650IR |
|
|
|
F/NO |
3.0±5% |
|
|
|
EFL |
4.18 mm±5% |
|
|
|
FOV |
82°±3° |
|
|
|
Focusing method |
Fixed focus |
|
|
|
Shooting distance |
60cm-∞ |
|
|

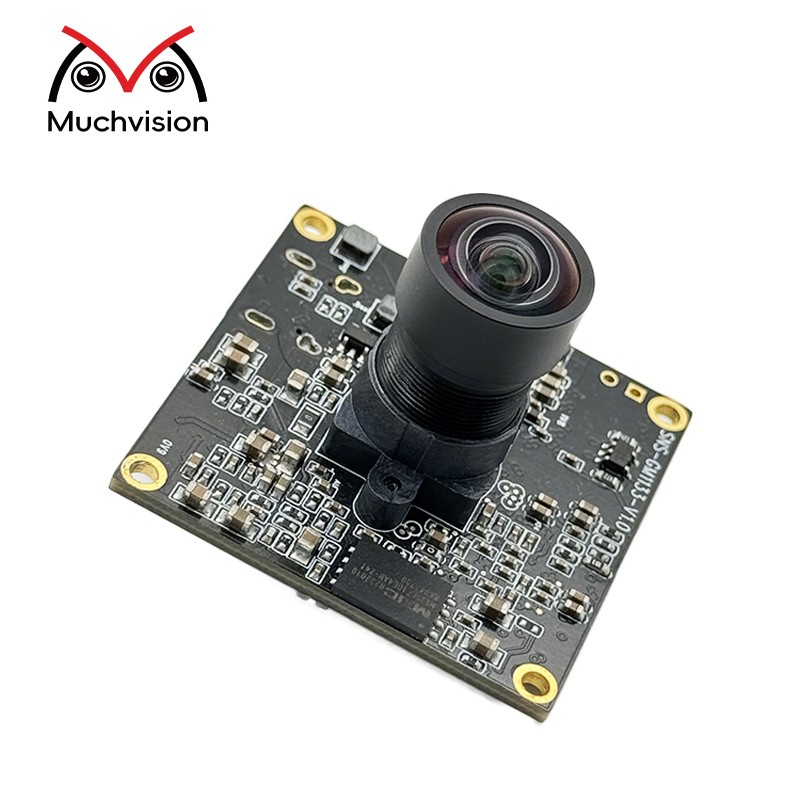

Product Picture
Application areas of camera modules
1. Astronomical telescopes: Integrated with astronomical telescopes to capture images of distant galaxies and celestial bodies
2. Industrial X-ray inspection: Used for industrial X-ray inspection to detect internal defects of products and improve product quality
3. Wildlife monitoring: Used for wildlife monitoring, studying animal behavior, and protecting wild animals
