OEM
|
Module Number |
SNS-GM985-V1 |
Sensor |
PS5268 |
|
Resolution |
1928(H) X 1088(V) |
Dimension |
Customizable |
|
Lens FOV |
90°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
Full-HD |
Products Description
The 1080p HDR USB camera module features the PS5268 2MP sensor, delivering high-definition imaging with wide dynamic range. It supports 1928×1088 resolution and provides excellent image quality in both bright and low-light conditions.
Designed for IoT cameras, HD surveillance cameras, smart doorbells, driving recorders, and retail monitoring, this module combines high performance with low power consumption, making it suitable for energy-efficient applications.
The module supports USB2.0 connectivity and adjustable parameters including brightness, contrast, saturation, hue, gamma, white balance, and exposure, allowing flexible integration into various devices.
Its fixed focus lens with optional 90° FOV ensures consistent image quality across diverse application scenarios.
Highlights
1080p Full-HD Resolution for clear and detailed imaging
Wide Dynamic Range (HDR) ensures excellent image quality in high-contrast lighting
High-Performance PS5268 Sensor combining high definition and dynamic range
Low Power Design suitable for energy-efficient IoT and embedded applications
Product structure
Specification
|
Model No |
SNS-GM985-V1 |
|
SENSOR |
PS5268 |
|
Active array size |
1928(H) x 1088(V) |
|
Pixel size |
3.0um (H) x 3.0um (V) |
|
Shutter type |
Electronic rolling shutter (ERS) |
|
Optical format |
1/2.7-inch |
|
Lens chief ray angle |
17 degree |
|
ADC |
10-bit |
|
Sensitivity |
5800 mV/Lux-sec |
|
SNRmax |
41 dB |
|
Dynamic range |
85 dB |
|
Scan mode |
Progressive scan |
|
Input clock |
Max 50MHz |
|
Pixel clock |
Max 148.5MHz |
|
Max. frame rate |
1080p: 1920x1080 Linear@ 60fps 1080p: 1920x1080 HDR+LTM @30fps |
|
Supply voltage |
Analog: 3.3 V Digital: 1.2 V I/O: 1.8V / 3.3V |
|
Power consumption |
75mW@1080p30 (MIPI) 54.5mW@1080p30 (DVP w/o I/O) 124mW@HDR-LTM1080p30 (MIPI) 107mW@HDR-LTM 1080p30 (DVP w/o I/O) |
|
Operating temperature |
-30°C ~ 85°C |

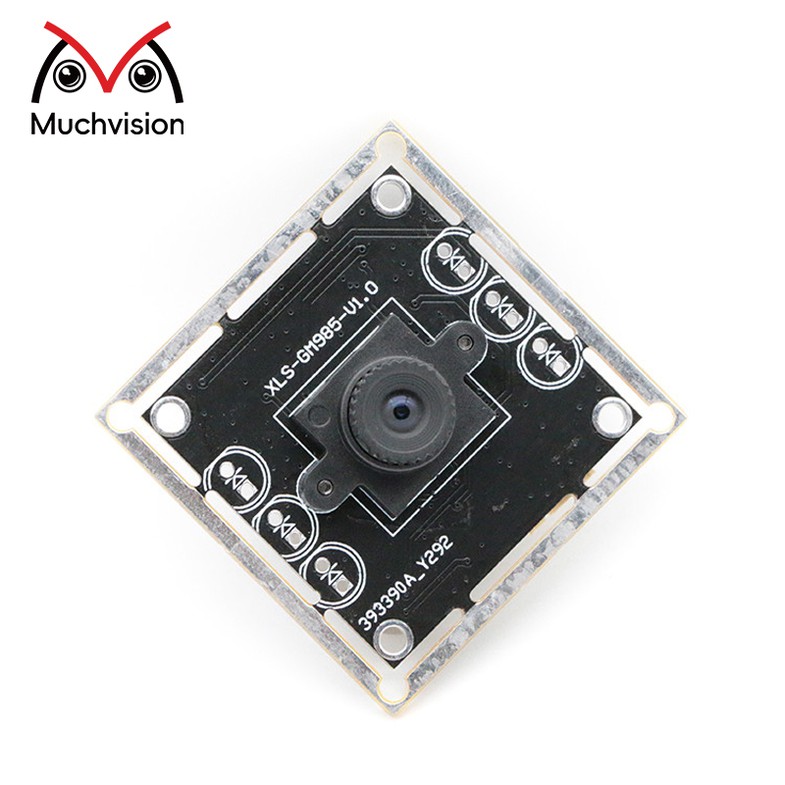

Product Picture
Application areas of camera modules
1. Underwater photography: Used in underwater photography to capture images of underwater organisms and the environment for scientific research and documentation
2. Food quality inspection: Used in food processing industry to detect food quality and ensure food safety
3. Retail monitoring: Used to monitor retail stores, prevent theft, and improve store security management
