OEM
|
Module Number |
SNS-DZ1039-V1.0 |
Sensor |
1/3" Omnivision OV4689 |
|
Resolution |
4MP2688(H)X 1520(V) |
Dimension |
38mmx38mm (customizable) |
|
Lens FOV |
75°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
2K |
Products Description
The 4MP USB camera module features an Omnivision OV4689 sensor, providing 2688×1520 resolution for clear and detailed imaging. It is ideal for document scanning, face recognition systems, and action camera applications.
The module supports ultra-high gain up to 256× and embedded multi-sampling noise reduction, ensuring excellent low-light performance. Its HDR support provides balanced exposure in light and dark areas for natural image quality.
With a fixed focus lens and USB2.0 interface, this camera module enables easy integration into various devices. Adjustable parameters like brightness, contrast, color saturation, gamma, white balance, and exposure allow optimization for different applications.
Highlights
High-Performance Imaging: 4MP resolution captures sharp, high-definition images for demanding applications
Ultra-High Gain Support: Up to 256× gain improves imaging in low-light environments
Embedded Noise Reduction: Multi-sampling technology ensures clear images under challenging lighting

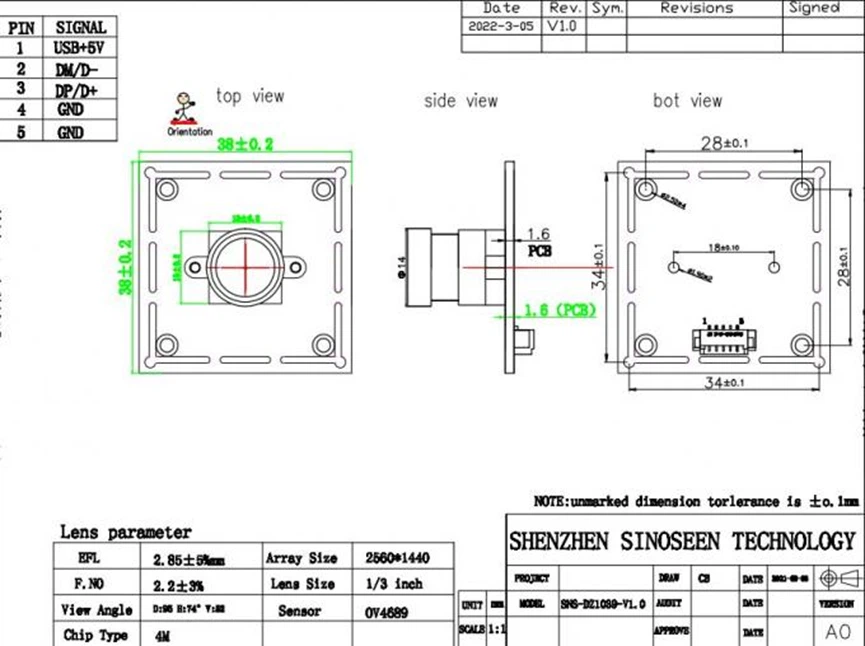

Product structure
Specification
|
Model No |
SNS-DZ1039-V1.0 |
|
Sensor |
1/3" Omnivision OV4689 |
|
Pixel |
4 Mega Pixel |
|
Most effective pixels |
2688(H) x 1520(V) |
|
Pixel Size |
2.0µm x 2.0µm |
|
Compression format |
MJPG / YUY2 |
|
Resolution |
see above |
|
Frame rate |
see above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
38.3dB |
|
Dynamic range |
64.6dB |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm Lens Size: 1/3 inch FOV: 75° (Optional) Thread Size: M12*P0.5 |
|
Audio frequency |
Support |
|
microphone |
Built-in |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Not Supported |
|
Dimension |
38MM x 38MM |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Product Picture
Application areas of camera modules
1. Document scanner: Used for document scanning to digitize paper documents for easy storage and retrieval
2. Face recognition system: Used in face recognition systems to provide high definition images and enhance recognition accuracy
3. Action camera: Used for outdoor sports cameras to capture dynamic scenes, suitable for extreme sports recording
